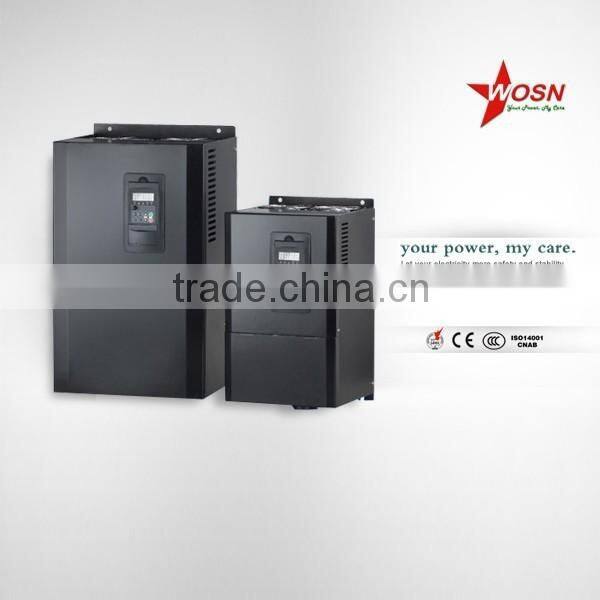

15KW Vector Frequency Inverter

15KW Vector Frequency Inverter thumbnail-1
15KW Vector Frequency Inverter photo-1
US$ 99 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
wosn
Model Number:
ZVF9V-P Inverter
Contact Supplier Request Quote Chat Now
Wenzhou Wosn Electron Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
BINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name wosn
Model Number ZVF9V-P Inverter
Output Power 1 - 200KW
Output Type Triple
Size 185*118*175MM
Weight 2.1KG
Input Voltage Single-phase 220V, three-phase 220V,three-phase 380V
Output Voltage 2-200/220V /380V
Type DC/AC Inverters
Output Frequency 0-400HZ
Output Current 4-750A
Product Description



ZVF9V Series frequency inverter has the good effect energy conservation, fine speed adjustment performance, stable operation, stable operation, electrical machinery soft start, protect function and self diagnostics fault and other advantages.





ZVF9V Series frequency inverter is suitable for all kinds of devices such as metallurgy, plastic, textile machinery, paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment, printing mechanism, packing machinery, blower fan, water pump, hoisting equipment, building materials and so on for driving and speeding control of AC asynchronous motor.





 15KW Vector Frequency Inverter

Product Parameter





Item Specifications
Input Rated voltage and frequency Single-phase 220V, three-phase 220V,three-phase 380V; 50Hz/60Hz
Variable allowable value Voltage: -20% +20 Voltage unbalance: <3% Frequency: ±5%
Output Rated voltage 2-200/220V /380V
Frequency range 0Hz500Hz
Main Control Function Overload capability 150% for 1 min, 180% for 3s,
Control mode Space voltage vector SVPWMcontrol
Frequency accuracy Digital setting: Max frequency ×±0. 01% Analog setting: Max frequency ×±0. 2%
Frequency resolution Digital setting: 0.01Hz Analog setting: Max frequency ×0.1%
Torque rise Auto torque rise,manual torque rise 0.1%30.0%
Jogging Jogging frequency range: 0.1Hz50.00Hz,jogging acceleration and deceleration time: 0.1-60.0s.
Built-in PID It is convenient for forming closed loop control system, applicable for course control like pressure and flow, etc.
Multi-speed operating Realize multi-speed running by built-in PLC or control terminal.
Weaving wobble frequency Can get wobble frequency of adjustable central frequency
Auto voltage adjustmen When main voltage changes, the output voltage may be kept constant by adjusting PWM output (AVR function).
Auto energy-saving running According to load condition, V/F curve can be optimized automatically to get the aim of energy-saving running.
Auto current limiting Limit in-service current automatically, so as to avoid tripping for fault caused by frequent over current.
Operator Setting Method Press or ∧ or ∨ to set
Operation Function Running command channel 3 kinds of control mode: keypad control, analog terminal control, serial communication control
Frequency source selection Digital set, analog voltage set, analog current set, pulse input set, serial communication port set; through various method to combination switch.
Protection Function - overvoltage protection,overcurrent protection,over temperature protection,undervoltage, overload
Operation environment Operating site Indoor, sea level below 1000m,no dust, corrosive gas, and direct sunlight
Ambient temperature -10°C~+40°C
Humidity <90%RH (no condensing)
Storage temperature

-25°C~+60°C
