Help CenterWOSN IP65 Custom Metal Distribution Box
Related Products
-
Metal Electrial Box IP65 Explosion-proof Distribution Point BoxUS$ 100 - 300MOQ: 100 Pieces -
TSM-4WAY Multimedia Distribution Box for Home,hotel, Factory, OfficeUS$ 0.9 - 20MOQ: 100 Pieces
-
WOSN TSM-2WAY Waterproof Ip65 Distribution Box Home UseUS$ 8 - 12MOQ: 100 Pieces
-
High Quality CE Certificated Distribution BoxUS$ 0.6 - 20MOQ: 100 Pieces
-
IP66water Proof/ Distribution BoxUS$ 10 - 100MOQ: 100 Pieces
Steel Electrical Distribution Box
IP65 or IP54 Wall mounting steel enclosures
Armario de distribucion electrica
Armario modular para automatismo
(Other size possible, pls send us your specification)
Specifications:
| Material | SUS304,316,201 | ||
| Surface treatment | Wire drawing;galvanized mounting plate | ||
| Protection grade | IP65 | ||
| Standard configuration | Door plate,box body,sealing strip,mounting plate, | ||
| door lock | |||
| Plate thickness | Box body:1.5mm | ||
| Door plate:1.5mm | |||
| Mounting plate:2.0mm | |||
| Item No. | Dimensions | ||
| Height(mm) | Width(mm) | Depth(mm) | |
| LMSS-2520/150 | 250 | 200 | 150 |
| LMSS-3025/150 | 300 | 250 | 150 |
| LMSS-3025/200 | 300 | 250 | 200 |
| LMSS-33/150 | 300 | 300 | 150 |
| LMSS-33/200 | 300 | 300 | 200 |
| LMSS-43/150 | 400 | 300 | 150 |
| LMSS-43/200 | 400 | 300 | 200 |
| LMSS-44/200 | 400 | 400 | 200 |
| LMSS-46/250 | 400 | 600 | 250 |
| LMSS-46/300 | 400 | 600 | 300 |
| LMSS-54/150 | 500 | 400 | 150 |
| LMSS-54/200 | 500 | 400 | 200 |
| LMSS-54/250 | 500 | 400 | 250 |
| LMSS-55/250 | 500 | 500 | 250 |
| LMSS-64/250 | 600 | 400 | 250 |
| LMSS-64/150 | 600 | 400 | 150 |
| LMSS-64/200 | 600 | 400 | 200 |
| LMSS-65/250 | 600 | 500 | 250 |
| LMSS-65/150 | 600 | 500 | 150 |
| LMSS-65/200 | 600 | 500 | 200 |
| LMSS-66/250 | 600 | 600 | 250 |
| LMSS-75/300 | 700 | 500 | 300 |
| LMSS-75/200 | 700 | 500 | 200 |
| LMSS-86/200 | 800 | 600 | 200 |
| LMSS-86/250 | 800 | 250 | |
| LMSS-86/300 | 800 | 600 | 300 |
| LMSS-88/200 | 800 | 800 | 200 |
| LMSS-88/300 | 800 | 800 | 300 |
| LMSS-106/250 | 1000 | 600 | 250 |
| LMSS-106/300 | 1000 | 600 | 300 |
| LMSS-108/250 | 1000 | 800 | 250 |
| LMSS-108/300 | 1000 | 800 | 300 |
| LMSS-1010/300 | 1000 | 1000 | 300 |
| LMSS-128/300 | 1200 | 800 | 300 |
| LMSS-1210/300 | 1200 | 1000 | 300 |

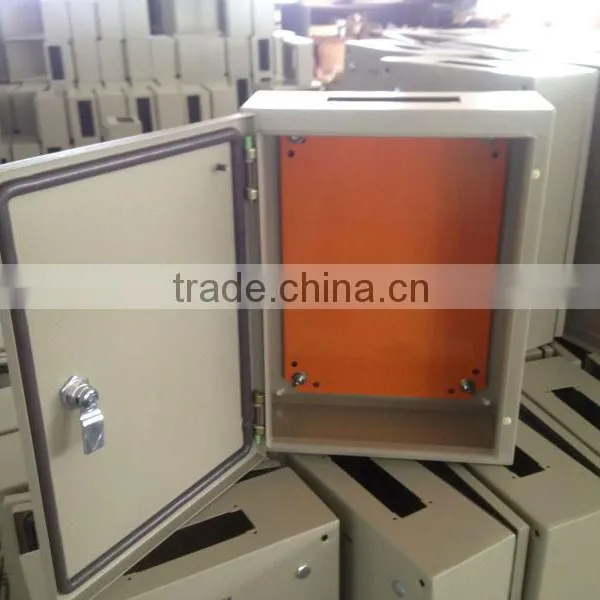

1.CONSTRUCTION
Body and door manufactured in 1.5mm sheet steel.
Flat mounting plate in 2.5mm sheet steel.
2.FINISH
NANTE standard cycle thermosetting epoxypolyester power coating.
Case and door RAL 7032 textured finish.
Mounting plate in RAL 2004 smooth finish.
3.PROTECTION DEGREE
IP 65 to EN60 529 NEMA 4.
4.PACKING
Boxes are complete with:
--2 zinc passivated rails to be fixed on the door.
--Mounting plate.
--Gland plate and gasket.
--Package with hardware for earth connection and screws to mount all components.
--Locking system with 3mm double bar key.
1. All your inquiries will be replied within 24 hours.
2. We provide Two Year Warranty for our products.
