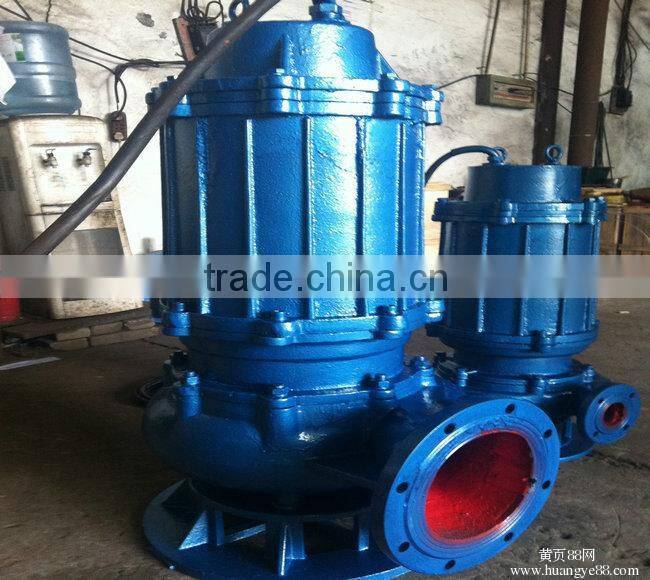

Wholesale High Quality submersible slurry pump
Electric submersible pump
1. Wear resistance
2. Large flowing passage
3. Resistant to salt water corrosion
4. With agitato
Overview
1. Applicable for conveying media such as sludge, ore slurry, coal slurry, sandstones containing big solid particles, pumping sand for building, silt sand, silt, tailing slurry, ore, iron sand ore, sediment in sewage treatment works, etc.
2. Submersible sludge pumps motor and the pump of which are coaxially submerged in medium to work. The overflowing parts of the pump are made from high alloy wear-resistant material, has good wear resistance and large flowing passage.

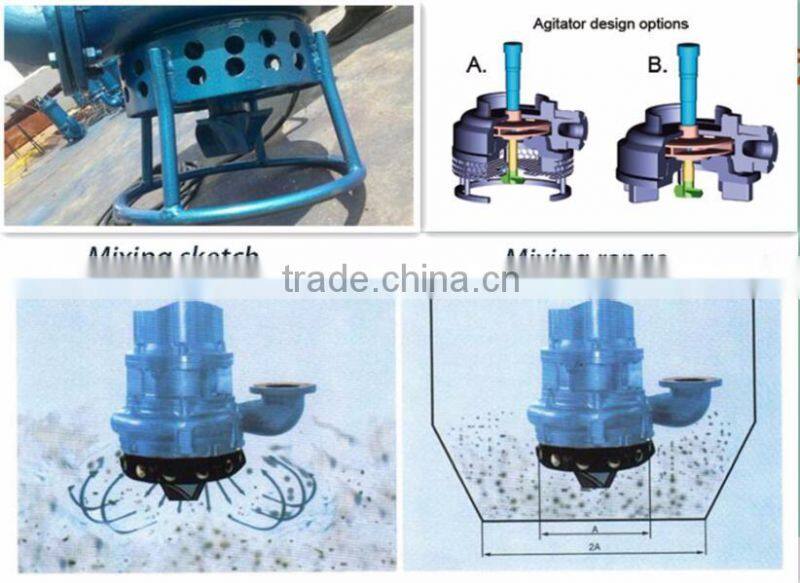

3. Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impeller which can spray the deposited sludge into turbulent flow, and therefore the pump realizes high-concentration conveying under the condition of no auxiliary device.

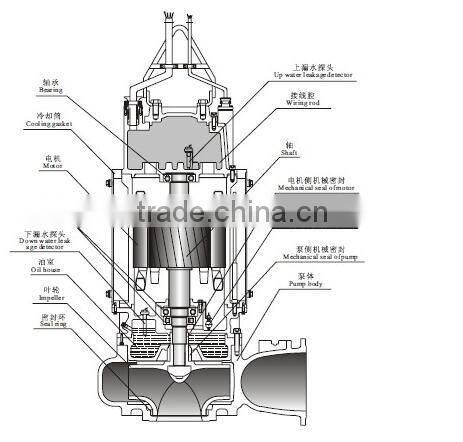

4.The unique seal device can effectively balance the pressure inside and outside the oil chamber, so as to project the reliability of the mechanical seal to the maximum extent.
5.The motor adopts various protective such as overheat protection, water inlet detecting projection, with float switch to control it and can operate safely for a long term in harsh working conditions.
Working Conditions
1. The power source is 50Hz/380V three –phase alternating-current supply, and the capacity of the substation transformator two to three times of the rated capacity of the motor.(
2.The temperature of the medium cannot exceed 60°C, and it does not contain inflammable or explosive gases.
3.The maximum weight concentration of the ash is 45% and maximum weight concentration of the slag is 60%.
4.Maximum submerged depth under the water is 20 meters, the minimum submerged depth takes submerging of the motor as reference.
5.Working status in the medium is vertically and continuous.

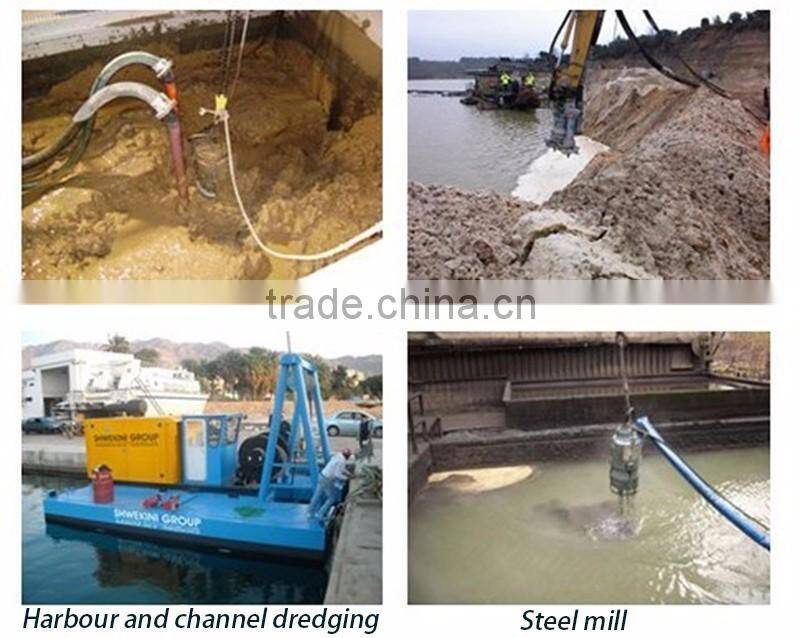

Application
1. Kitchen sewage, life sewage and rain water
2. Industrials, chemicals, medicals, medicine company, food industrials.
3. Mynicipal engineering and construction projects
4. The water plant sewage discharge water and conservancy project
5. Urban sewage treatment plant emissions system
6. Farms septic tank
7. Tailings convey, sand suction, dredging, steel plant, sewage with sand, gravel, slurry, cinder

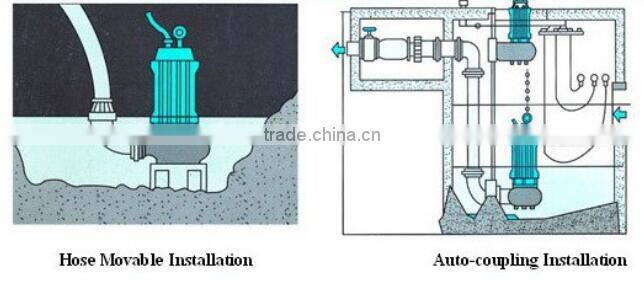

Installation

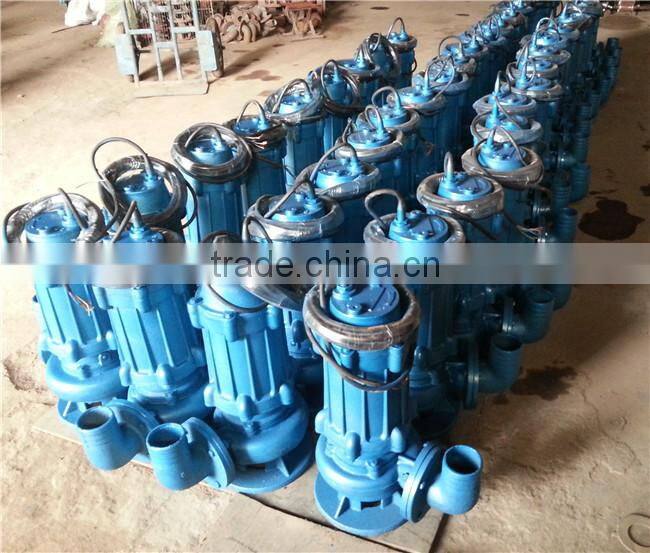

Packaging
1. All of our pumps are packed by the standards plywood box complied with the exportation requirement;
2. We can also customizing the package to pack centrifugal slurry pump according to customer's request;
We have desinged the top-grade quality pump and keep upgrade our product all the time by our professional Engineers Team, we also cooperate with many scientific research institutions and universities to ensure the new products researchment.
*Can you supply pump qualified with ANSI and ASME standard?
Yes, our pump compliant with ISO / ASME/ANSI standard.
*How can I purchase order without seeing the quality first?
If it is a big order, we can provide a sample for running testing at your plant.
*How do you control the quality of the products?
Our production is strictly according to ISO 9001 standard and factory was established in 1980, have over 30 years experience in slurry pumps and parts.
*How to customize pumps and mechanical seals ?
Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.
*How can I pay for my items? What is the payment you can provide?
Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
L/C at sight
*How long is warranty?
1 year for main construction warranty.
*How long is production leading time?
Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.
*What is the shipping terms you can provide ?
Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.
*Who is in charge of after-sales?
Inside sales. It can save customer's time and high efficiency communicate. NNT has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
*Who is in charge of maintenance?
Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.
Shijiazhuang Nainater Slurry Pump Co., Ltd is a modern pump industry enterprise engages in professional
manufactore, scientific research, develop, sales and service.
Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and
Dredging pump parts, Desulfurization pump and Desulfurization pump parts, Clean water pump and Sewage
pumps, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national
economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than
20 countries and regions. Our products have won unanimous favorable comments from the market.
The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and
our environmental management systems are accredited to ISO 14001:2004.
