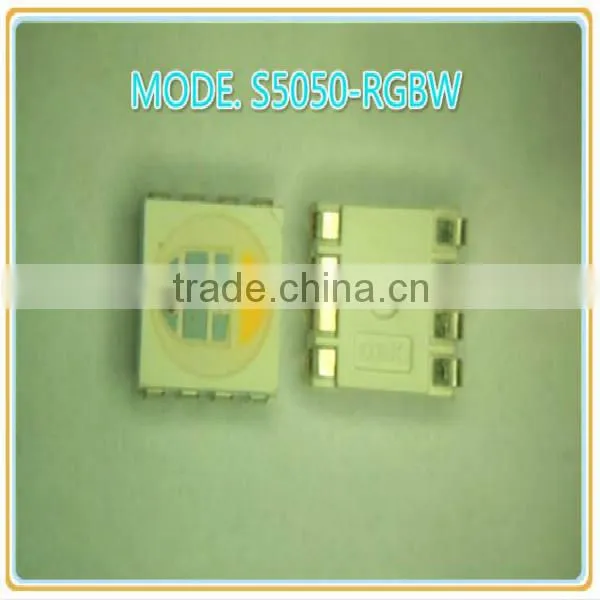

High quanlity lights 5050 smd rgb leds chip
| Model Number | 5050 smd rgb led chip |
| Type | SMD LED |
| Emitting Color | Red-Green-Blue-White multicolor |
| work voltage | 2.5v~3.3v |
| Color Temperature | 3000K~6800K |
| Peak Forward Current | 100mA |
|
|
4 chips packed in a cavity |
| Frequency | 50/60Hz |
| Chip Brand | Epistar and Sanan |
| Forward Current | 20mA |
ITEM |
SYMBOL |
ABSOLUTE MAXIMUMRATING |
UNIT |
|
|
Power Dissipation
|
White |
Pd |
0.072 |
W |
|
Red/Yellow |
|
0.048 |
|
|
Green |
|
0.072 |
|
|
Blue |
|
0.072 |
|
D.C Forward Current |
If |
20 |
mA |
|
Pulse Forward Current (*1) |
Ifp |
100 |
mA |
|
Thermal Resistance , Junction-Case (*2) |
Rθj-c |
230 |
℃/W |
|
Reverse Voltage |
Vr |
5 |
V |
|
Operating Temperature |
Topr |
- 20~+65 |
℃ |
|
Storage Temperature |
Tstg |
- 40~+100 |
℃ |
|
Soldering Temperature(Reflow) (*3) |
Tsld |
max.240 <5sec |
℃ |
|

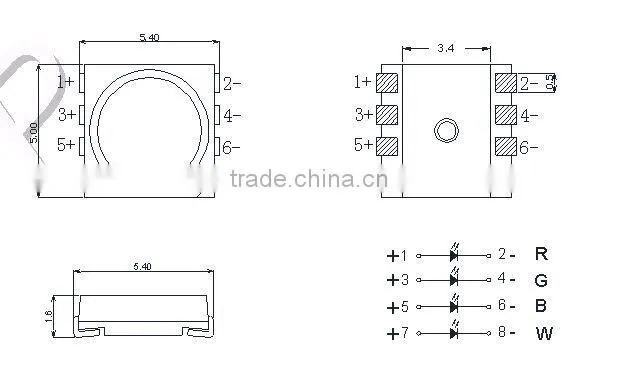

Product Dimension
. Dimensions:5.5 mm x 5.0 mm x 1.6 mm
5050 smd rgb led chip
the packing method of product 5050 led diode RGB: Inner packing by carrier tape and the electrostatic bag; outer packing by cartons. Packing with carrier tape and cover tape.
1000pcs per reel. each roll led diode packed by ESD polythylene bag.
45bays in a outer carton box
Shipping
1. We will ship the items within 3 working days after the payment confirmed.
2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.
3. We are not responsible for any accidents, delays or other issues caused by the forwarder.
4. Any import fees or charges are on the buyer's account
- Your inquiry related to our SMD LED products or prices will be replied in 24hours.
- Well-trained and experienced staffs to answer all your inquiries in fluent English.
- Strict quality control procedures before shipment.
- OEM&ODM,any your customized LEDs we can help you to design.
Shenzhen Smart Lighting Technology CO.,LTD( Dongguan OPSCO Optoelectronics Co.,LTD )
is specialized in the R&D and production of lighting andled scrip lighting. It is a high
tech optoelectronics enterprise which can research,produce and sell.The company together with Led packaging, Led applications industries of high quality resources and a large number of professional and experienced technology personnel,insists on sustainable innovation who can provide the leading lighting products.
