Lighting Home New Inventions White Filament SMD5050 Smd Led

Lighting Home New Inventions White Filament SMD5050 Smd Led photo-1
US$ 0.1 - 0.15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Model Number:
S5050-APA102, S5050-APA102
Chip Material:
Other, AlGaInP, GaAs
Emitting Color:
Tri-Color(Red-Blue-Green)
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Model Number S5050-APA102, S5050-APA102
Chip Material Other, AlGaInP, GaAs
Emitting Color Tri-Color(Red-Blue-Green)
Luminous Intensity 1500~2200
Luminous Flux(lm) 18~22lm, 18~22lm
Optical Attenuation(%) 3%
Power Other, 0.4W, 0.4W
Power Dissipation 0.3
Color Rendering Index(Ra) 80
Color Temperature 2700K~6800K
Operating Temperature(℃) -40, 58
Storage Temperature(℃) -30, 80
Place of Origin Guangdong, China
Brand Name OPSCO
Certification CE



Lighting home new inventions white filament SMD5050 smd led



Product Description



Model Number filament smd led
Type SMD LED
Emitting Color Tri-Color(Red-Blue-Green)
work voltage DC5V
Color Temperature 2700K~6800K
Led Chip Epistar AND Sanan



color



 RGB Full color
Frequency 50/60Hz
Chip Brand Epistar and Sanan
Place of Origin China (Mainland)











 Lighting home new inventions white filament SMD5050 smd led

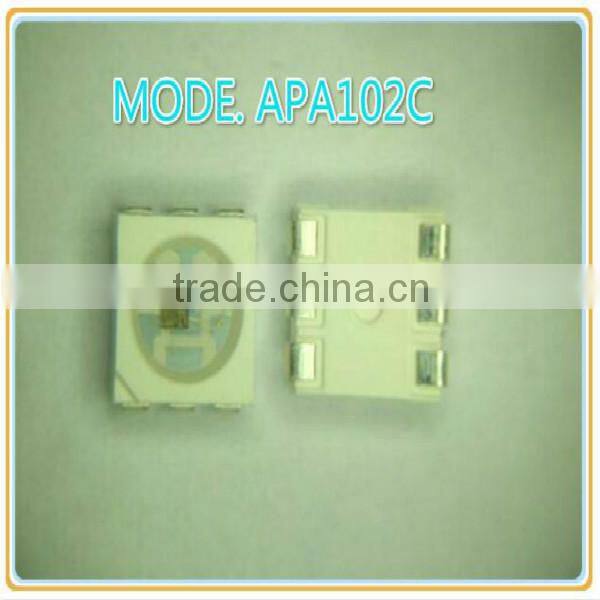

Products picture

 Lighting home new inventions white filament SMD5050 smd led

 Lighting home new inventions white filament SMD5050 smd led

 Lighting home new inventions white filament SMD5050 smd led

 Note: APA102 is a type IC for the three-color RGB diming control strip and string, this IC using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA with 2 signal output way, one is clock, another is data, the clock and data is synchronized, so that the crystal cascade piece of output movement is synchronized. 0.4W/pcs

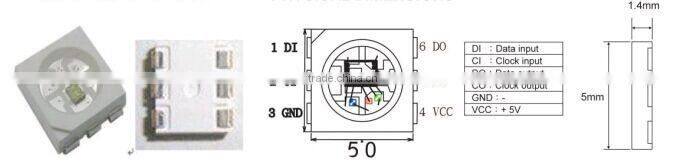

  Product Dimension



Dimensions:5.5 mm x 5.0 mm x 1.4 mm

. Packages: Top SMD



. Capsulated Resin:Silicone Resin with Aluminate Phosphor



. Electrodes:Ag Plating



. Chips:Total 3chips packed in a cavity



 Lighting home new inventions white filament SMD5050 smd led







Lighting home new inventions white filament SMD5050 smd led

Lighting home new inventions white filament SMD5050 smd led




Lighting home new inventions white filament SMD5050 smd led





Packaging & Shipping

filament smd led



the packing method of product 5050 led diode RGB: Inner packing by carrier tape and the  electrostatic bag; outer packing by cartons. Packing with carrier tape and cover tape.

1000pcs per reel. each roll led diode packed by ESD polythylene bag.

45bays in a outer carton box




Lighting home new inventions white filament SMD5050 smd led













Shipping



Lighting home new inventions white filament SMD5050 smd led





1. We will ship the items within 3 working days after the payment confirmed.



2. We can ship to you by UPS/DHL/TNT/EMS/FedEx. Please contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver, please choose other shipping ways.



3. We are not responsible for any accidents, delays or other issues caused by the forwarder.



4. Any import fees or charges are on the buyer's account













Our Services



  • Your inquiry related to our SMD LED products or prices will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your inquiries in fluent English.
  • Strict quality control procedures before shipment.
  • OEM&ODM,any your customized LEDs we can help you to design.








Company Information



Shenzhen Smart Lighting Technology CO.,LTDDongguan OPSCO Optoelectronics Co.,LTD  )

is specialized in the R&D and production of lighting andled scrip lighting. It is a high

tech optoelectronics enterprise which can research,produce and sell.The company together with Led packaging, Led applications industries of high quality resources and a large number of professional and experienced technology personnel,insists on sustainable innovation who can provide the leading lighting products.
