Specifications
1,2014 New Product Submersible pump for municipal wastewater2,Submersible sewage pump
3,Cast Iron,Stainless Steel
4,Highhead
1, Product Name : 2014 New Product Submersible pump for municipal wastewater

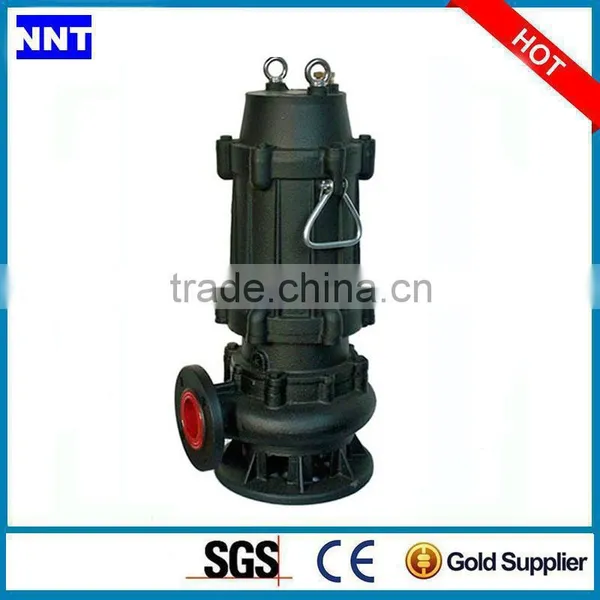

WQ Submersible Sludge Pump
- Flow Rate :5~6000m3/h
- Head :0~45m
- Rotary Speed :980~2900r/min
- Calibre:15mm~600 mm
- Temp Range :-15~+60
- Service Pressure :Max 0.6Mpa
- Material:Cast iron,Stainless steel,Cast steel
Material :
Cast iron,Sainless steel
Features:
This series submersible sewage pump, absorbing foreign advanced technology, this pump motor and pump by two parts, both through the oil isolation room and mechanical seal components between them. Pump shaft short, structure tight, equipped with the a variety of protection device to pump operation, safe and reliable.
1. High quality one-time lubrication bearing (import NTN bearing) well operation.
2. The passage hydraulic parts design, guarantee of the size of the particles non-clog through, reduce fault.
3. Motor shaft using stainless steel, the rotor balance into action detection.
4. Double seals, material of titanium, titanium silicon/the silicon (or tungsten titanium/tungsten titanium) and to ensure that the water pump long-term reliable work.
2, Models and introductions
| NO. | Type |
Discharge diameter (mm) |
Capacity Q (m3/h) |
Head H (m) |
Speed n |
Power N (kW) |
Efficiency η (%) |
Weight (kg) |
Pump electrical control cabinet |
Automatic coupler |
| 1 | 40WQ12-15-1.5 | 40 | 12 | 15 | 2900 | 1.5 | 48 | 55 | QZD-1.5 | GAK-50 |
| 2 | 50WQ20-7-0.75 | 50 | 20 | 7 | 1450 | 0.75 | 62 | 50 | QZD-0.75 | |
| 3 | 50WQ10-10-0.75 | 50 | 10 | 10 | 2900 | 0.75 | 54 | 45 | QZD-0.75 | |
| 4 | 50WQ15-15-1.5 | 50 | 15 | 15 | 2900 | 1.5 | 51 | 55 | QZD-1.5 | |
| 5 | 50WQ15-20-2.2 | 50 | 15 | 20 | 2900 | 2.2 | 51 | 60 | QZD-2.2 | |
| 6 | 50WQ17-25-3 | 50 | 17 | 25 | 2900 | 3 | 53 | 70 | QZD-3 |
|
| 7 | 50WQ25-32-5.5 | 50 | 25 | 32 | 2900 | 5.5 | 49 | 105 | QZD-5.5 | |
| 8 | 65WQ25-15-2.2 | 65 | 25 | 15 | 2900 | 2.2 | 52 | 65 | QZD-2.2 | GAK-65 |
| 9 | 65WQ37-13-3 | 65 | 37 | 13 | 2900 | 3 | 60 | 80 | QZD-3 |
|
| 10 | 65WQ25-28-4 | 65 | 25 | 28 | 2900 | 4 | 58 | 90 | QZD-4 |
3, Pictures
4, Applications
1) raw water, wastewater treatment plants, importance, pumping stations.
2) building septic tank drainage system.
3) pig animal husbandry, home games of the discharge of wastewater.
4) school, hospital, authority of the community function of wastewater.
5) food, paper making, mine, textiles, leather industrial waste water discharge.
