Help CenterJ78 Linear Halogen Lamp
Related Products
Specifications
J78 Linear halogen lampClass C energy efficiency
Excellent selection for flood lighting
Long service life up to 2000 hours

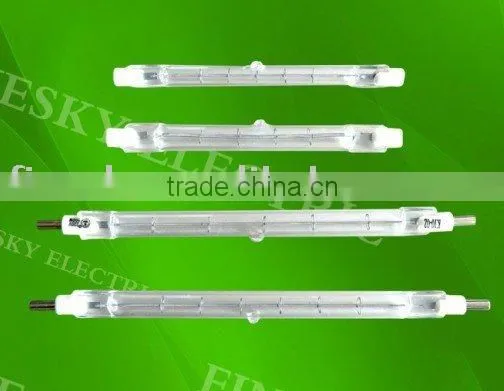

Double End J78 linear halogen lamp
Features:
Class C energy efficiency
Simple mains operation, no transformer required.
Dimmable.
Multiple burning positions
Krypton gas filled
UV-stop quartz glass and crimpled glass available
Different coating colors to increase color temperature by 30%
CE, RoHS Certified
Specifications:
a) Voltage: 110V - 130V / 220V - 240V
b) J78mm: 75W, 100W, 150W, 200W
c) J118mm: 100W, 150W, 200W, 300W, 500W
d) J189mm: 750W, 1,000W
e) J254mm: 1,000W, 1,500W, 2,000W
f) Service Life::2000 Hours
Applications:
In outdoor lighting for floodlighting of buildings and small spots grounds, for traffic installations, airports and building sites.
Specifications:
Class C energy efficiency:
ITEM |
Voltage V |
Power W |
Power max 5%W |
Power Min -8%W |
Lum Lm |
Lum Min Lm |
Lm/W |
Min Lm/W |
K |
Class |
Saving |
Life h |
L mm |
Dia mm |
Base |
|
78mm 100W |
230/240 |
100 |
105 |
91.6 |
1930 |
1620 |
19.3 |
17.69 |
2900 |
c |
30% |
1500 |
78 |
8 |
R7S |
|
78mm 120W |
230/240 |
120 |
126 |
110.4 |
2400 |
2020 |
20 |
18.3 |
2900 |
C |
20% |
1500 |
78 |
8 |
R7S |
|
118mm 200W |
230/240 |
200 |
210 |
184 |
4280 |
3630 |
21.4 |
19.73 |
2900 |
C |
30% |
1500 |
118 |
10 |
R7S |
|
118mm 230W |
230/240 |
230 |
241.5 |
211.6 |
5000 |
4250 |
21.7 |
20 |
2900 |
C |
20% |
1500 |
118 |
10 |
R7S |
|
118mm 330W |
230/240 |
330 |
346.5 |
303.6 |
7460 |
6350 |
22.6 |
20.9 |
2900 |
C |
30% |
1500 |
118 |
10 |
R7S |
|
118mm 400W |
230/240 |
400 |
420 |
368 |
9160 |
7900 |
22.9 |
21.4 |
2900 |
C |
20% |
1500 |
118 |
10 |
R7S |
