New arrival hot selling camping thermoelectric generator

                     New arrival hot selling camping thermoelectric generator

In fact, it's a stove.

          But at the same time it can generate electric power!!!

A new invention for the electric off area,and the camper, choose our product,you will find it very good for the poor people.

Function:can be used in cooking and warming for general family, also can be used for power generation by burning coal,wood,tree branch,gas,etc, the power can be enough to satisfy the daily lighting. The biomass or wood burning in the combustion chamber heats up the wall of its consumption chamber. The heat can be converted into electricity by thermoelectric modules.Meanwhile, its excess power can be used for powering small communication equipment like mobile phones

Advantage: small size,light weight,portable

Design concept: the principle is differential thermal heating, through independent research converter to provide a continuous output current.

Energy source: honeycomb briquette. It can last for a long time and price is low, high performance. Except the honeycomb briquette, any consumptible material can be used as energy source, such as charcoal,wood,tree branch,but they provide less power by themselves

Power time: it can provide 8 hours power time with burning 2 pieces honeycomb briquettes. Even though the coals are burned out, it also can provide 5 hours power time. If you want to get continuous power supply, just fill the new honeycomb briquettes.

Application of product: can provide 3V-7V direct current, can be used for 4-6 LED lights (1-3 watt) at the same time. It also can provide lighting in 10-15 square meters room, even 3 rooms at the same time.

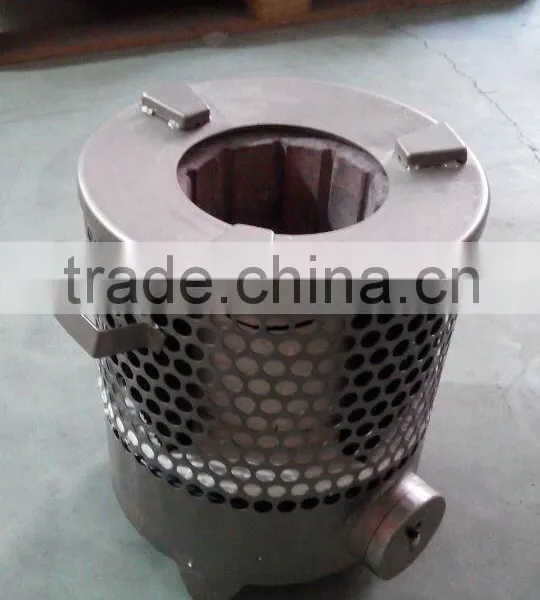

 Small one:

large one:

Target:

1. 1.      No electricity use area, such as rural area or mountainous area
2. 2.      Areas without electricity area by natural disaster caused, such as earthquake disaster area.
3. 3.      Outdoor enthusiasts or exploration researchers.

Use Instructions:

1. 1.      Put burning fuel in thermoelectric generator
2. 2.      Open the throttle in order to ensure air supply

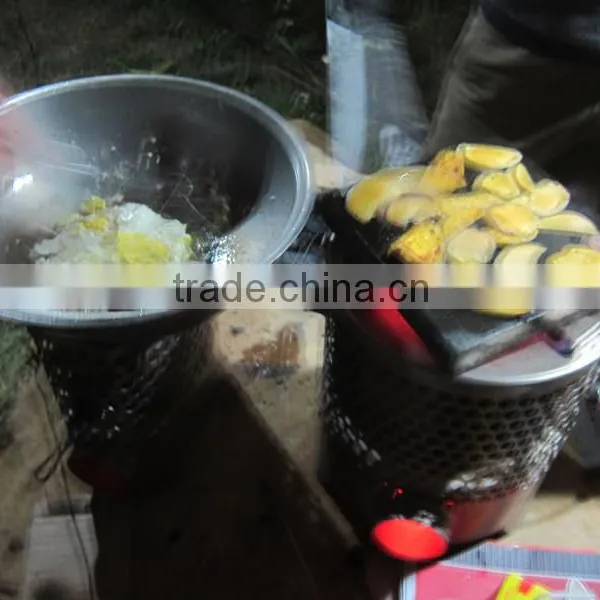

3. 3.      After the fuel burning adequately, then can cooking or boiling water or warming.
4. 4.      After finish cooking or boiling, can close the throttle. Thermoelectric generator also can be used for power generation as long as ensure the fuels don’t burn out.
5. 5.      Can provide 3V-7V direct current, can be used for 4-6 LED lights (1-3 watt) at the same time.
6. 6.      Can easy to clean the slag just open the thermoelectric

Announcement:

1. 1.      When the fuel burning, it also would release a little bit carbon monoxide. In order to prevent poisoning, make sure the thermoelectric generator is used in a well-ventilated environment.

2.  After making fire, forbid to touch the thermoelectric generator directly in order to prevent burning.

If you have any questions,pls kindly let me know!
