Biomass Pellet Burner on Sale

Biomass Pellet Burner on Sale photo-1
Biomass Pellet Burner on Sale photo-2
Biomass Pellet Burner on Sale photo-3
Biomass Pellet Burner on Sale photo-4
Biomass Pellet Burner on Sale photo-5
Biomass Pellet Burner on Sale photo-6
US$ 4,000 - 38,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YULONG
Model Number:
YLR pellet burner
Payment & Shipping
Payment Methods:
Port of Shipment:
China any seaport
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name YULONG
Model Number YLR pellet burner
Material Cold Rolled Steel
Type Pellet Stoves

Biomass Pellet Burner YULONG



We are professional manufacturer of biomass pellet burner in China, have got ISO, SGS certificate, all machines got CE certificate, and with many customer and sales agent in different countries, such as in Spain, Poland, Italy, Greece, Bulgaria, Romania, Russia…





Biomass Pellet Burner on Sale

 Biomass Pellet Burner on Sale

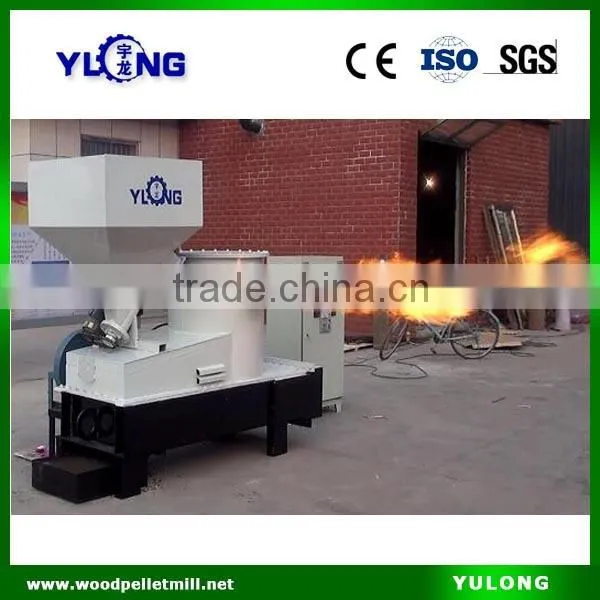

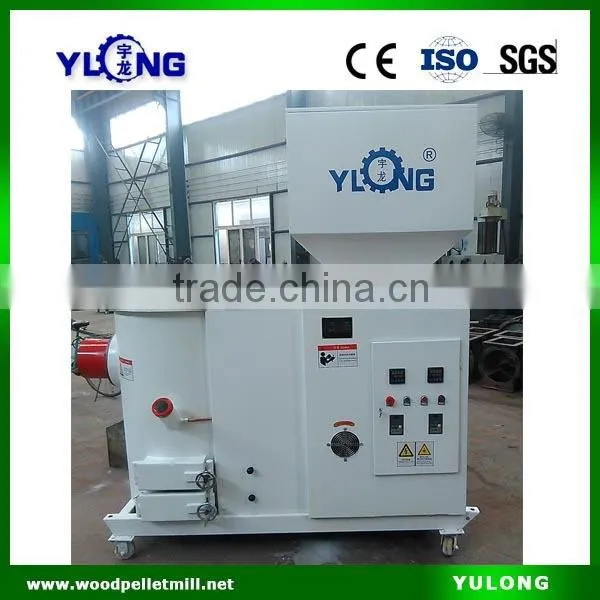

YULONG Biomass Pellet Burner Introduction



1. Pellet burner is wildly used in various industries such as boiler, casting machine, industrial stove, smelting furnace, kitchen equipment, drying equipiment, food drying equipment, ironing equipment, lacquer equipment, road building machinery equipment, Industrial annealing furnace, asphalt heating equipment.

2. Pellet burner adopts biomass pellet as fuel, YULONG brand burner is more wildly used and has lower requirement for fuel quality. Working Performance use biomass pellet as fuel burning efficiency is larger than 95%, boiling type half gasification combustion and tangent of swirling air distribution design, makes fuel fully burned.

3. Fully burned and burning stable. In micropressure situation not happen tempering and  flamelifting phenomenon heating load can be wildly adjusted, can quickly adjust between 30%-130% of  rated load. Initiate Block reaction is sensitive no pollution and high efficient environmental protection, burn reproducible biomass fuel, realize the sustainable use of energy. It adopts low temperature section burning technolgoy, the nitrogen oxides, sulfur dioxide, dust etc in smoke are low, which is the best substitute for coal stove etc.

4. Easy operating, convenient maintenance, automatical feeding, automatical discharging, automatical igniting, automatical control temperature, automatical 24 working hours without unattended substation.

5. Low invest, low working cost, wide belt burning with frequency conversion, more fit for user requirement and can change burning type, controling as per their requirement.





Video link of YULONG biomass pellet burner



                                        http://youtu.be/2I1ADnTYYdA





Biomass Pellet Burner Parameter





Model

Thermal Value  (Kcal/h)

Corresponding boiler tonnage

Output Power

(MW)

Fuel Consumption(KG/h)

Outlet Diameter(mm)

Burner Dimension

Burner Weight

 (ton)

Auxiliary machine power

(KW)













Length*Width*Height

 (mm)





YLR-30Q

 300,000

0.5T

0.55

71.4

Φ150

2200×1000×1300

1.8

1.5

YLR-60Q

 600,000

1T

0.7

142.9

Φ200

3000×1700×1800

3.5

4

YLR-120Q

 1,200,000

2T

1.4

285.7

Φ300

3850×2000×2250

4

7.5

YLR-180Q

 1,800,000

3T

2.1

428.6

Φ400

4700×2250×2480

5

12

YLR-240Q

 2,400,000

4T

2.8

571.4

Φ500

5200×2480×2650

6

16

YLR-360Q

 3,600,000

5-6T

4.2

857.1

Φ700

5800×2900×3100

7

30

YLR-480Q

 4,800,000

7-8T

5.6

1142.9

Φ900

6500×3400×3800

9

40











Biomass Pellet Burner on Sale



Biomass Pellet Burner on Sale



Biomass Pellet Burner on Sale



FAQ





-- Q: How long is your guarantee?



    A: 12 months warranty but except quick waering parts.



-- Q: Will you send engineers to install the machines?



    A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines and training your workers how to operate the machines and maintain the machine.



-- Q: Voltage requirement?



    A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
