Home > Electrical & Electronics > Sensor > Pressure Sensor > 0-60m Pool Water Pump Level Sensor Oil Tank Level Sensor Hydraulic Level Sensor

0-60m Pool Water Pump Level Sensor Oil Tank Level Sensor Hydraulic Level Sensor

US$ 0.2 - 500 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

IPS

Model Number:

IP16

Contact Supplier Request Quote Chat Now

Shenzhen Enzo Crafts & Gifts Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name IPS

Model Number IP16

Product Description

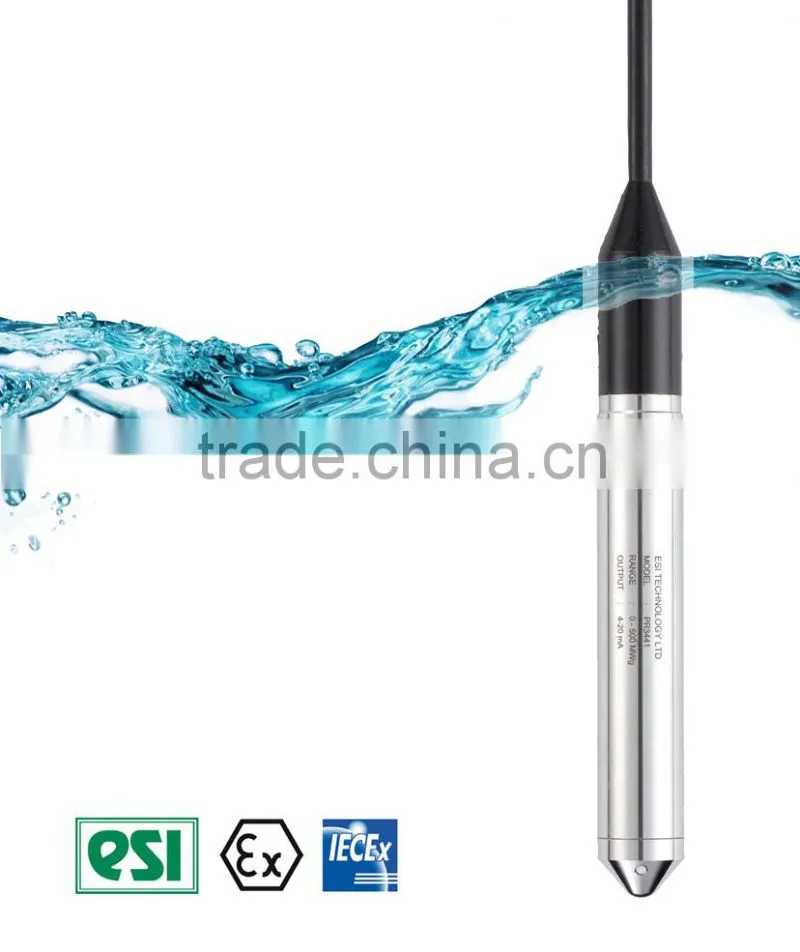

IP16 submersible level transmitter, composed by high accuracy & stability pressure sensor, is transformed to standard 4~20mA electrical output signal separately. The unique craft seal structure has good performance of preventing leak, even this product is be immersed into liquid for a long time, still has good operation reliability. It is featured with high accuracy, good stability, long service life as well as easy installation etc.

Parameters

Media	Oil or Liquid
Type	Gauge or absolute
Range	0~300m
Accuracy	0.25%FS
Output	4~20mA,0~5V,1~5V,0~10V
Power	12~36VDC
Working Temp.	-30~60℃
Environment Temp.	-40~85℃
Zero drift	≤±0.05%FS℃
Span drift	≤±0.05%FS℃
Compensation Temp.	0~70℃
Overload pressure	200%FS
Burst pressure	500%FS
Response Time	≤2ms
Load	(Current output)250~1425Ω(Voltage output)≥2KΩ
Sealing	IP68
Long time stability	0.1%FS/Year
Vibration	0.1%FS

Dimension

Selection Guid

IP10U	IP16 Level Transmitter With Unit Structure
IP10S	IP16 Level Transmitter With Separate Structure
IP10D	IP16 Level Transmitter With Separate and Display Structure
	3	0.5~4.5V(Three-Wire)
	4	1~5V( Three-Wire )
	5	4~20mA( Two-Wire )
	6	0~5V( Three-Wire )
	7	0~10V( Three-Wire )
	9	Output type according the customer request
		Mxxx	Xxx meter cable length
				Mxxx	0~xxx meter liquid level
					G	Gauge
					S	Seal
					A	Absolute
IP16U	5	M005	-	M005	G

Related Products

Pressure transmitter IP10: https://img13.fr-trading.com/product/60186702736-801137010/4_20mA_water_pressure_transmitter_water_pipe_pressure_transmitter_water_tank_pressure_transmitter.html

wireless pressure transmitter: https://img13.fr-trading.com/product/60188011842-801137010/Wireless_Pressure_Transmitter_RS485_pressure_Transmitter_433M_Pressure_Transmitter.html

Pressure gauge: https://img13.fr-trading.com/product/60229939131-801137010/IP13_digital_pressure_gauge_water_pressure_gauge_small_pressure_gauge.html

submersible pressure level sensor: https://img13.fr-trading.com/product/60187654964-801137010/4_20mA_water_tank_level_transmitter_submersible_pressure_transmitter_pressure_level_meter.html

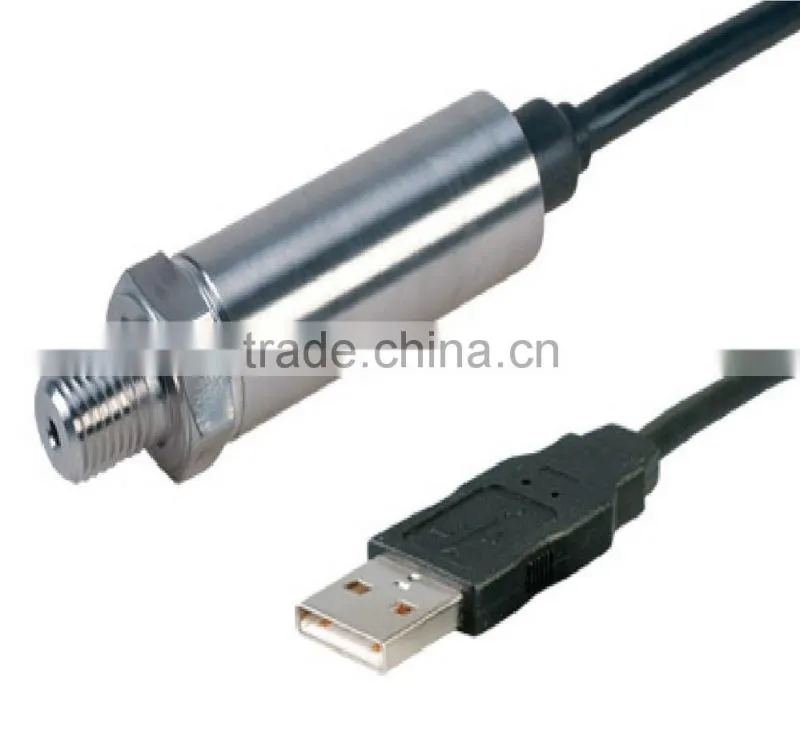

USB Pressure sensor: https://img13.fr-trading.com/product/60187604926-801137010/Digital_Pressure_sensor_RS485_pressure_sensor_MODBus_Pressure_sensor.html

Air pressure sensor: https://img13.fr-trading.com/product/60227038902-801137010/Intake_air_pressure_sensor_differential_pressure_sensor_Absolute_Pressure_Sensor.html

Temperature sensor

GPRS RTU Module

Data logger: https://img13.fr-trading.com/product/60229939131-801137010/IP13_digital_pressure_gauge_water_pressure_gauge_small_pressure_gauge.html

Warranty Policy

All products are warranted to change new one for fault for our product quality for one (1) year from the date of purchase from an authorized dealer of Basis products.
