Surface Roughness Tester Compatible with ISO DIN
Main feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards
Instrument Function :
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance.
TR200 |
|
Testing parameters |
Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; |
Measuring range (um) |
Ra: 0.005-16.000 Rz: 0.02-160.00 |
Sample length (mm) |
0.25, 0.80, 2.50 |
Evaluation length(mm) |
(1-5)L |
Maximum drive stroke |
17.5mm/0.7inch |
Indication accuracy |
0.001 |
Indication error |
±(7-10)% |
Variability |
<6% |
Data Storage |
100 groups |
Power |
Rechargeable li-battery |
Working temperature |
-20℃~40℃ |
Relative humidity |
<90% |
Size |
158mmx63.5mmx46mm |
Weight of Host |
0.3kg |
Pictures:

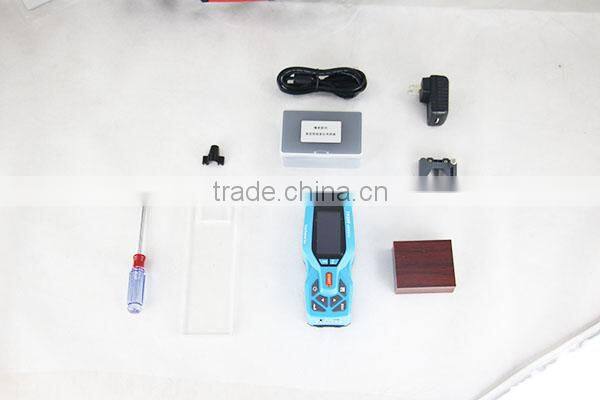

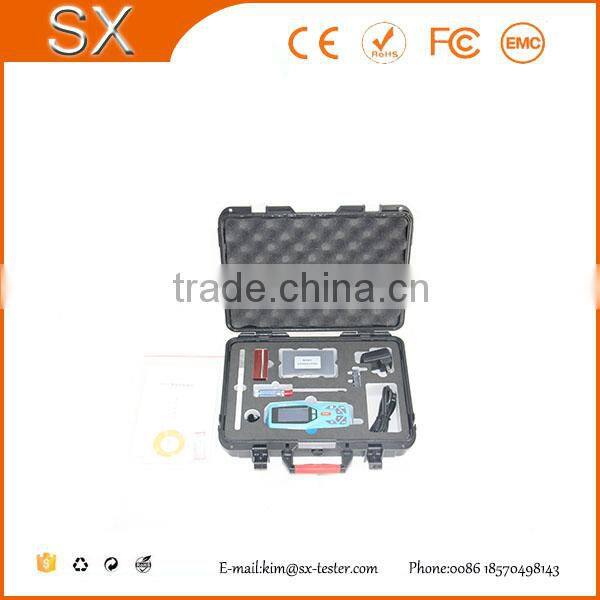

Standard configuration:
Name |
QTY |
|
1 |
Host |
1 |
2 |
Standard Sensor |
1 |
3 |
Calibration block and bracket |
1 |
4 |
Bracket |
1 |
5 |
Charger |
1 |
6 |
Adjustable support |
1 |
7 |
Operating manual |
1 |
8 |
Warranty card |
1 |
9 |
Certificate of approval |
1 |
10 |
Instrument case |
1 |
packing:
Shipping
1)24h online, if you have any question, we can help you solve it quickly (include pre-sales and after sales)
2)our testing equipments warranty for one year, after warranty, we can supply you longlife maintenance.
3)all things are in english. from technology consulting, purchasing and after service,we all have prefessional person to support
FAQ
Q:How long the delivery time ?`
A: 3-7 days after we received your payment or the order confirmed.
Q:What is the warranty for the equipments?
A: two year warranty,but we can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T,Western Union,Moneygram,L/C at sight,etc.
Q:How about the products quality?
A:Each equipment must be carried out 100% quality examination and test before shipping.All our products apply to ISO,ASTM,BS,EN,etc.Our products got CE certificate.
