Ceramic gloss meter
Details:
gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite,polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable;
Function
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle of mirror gloss meter is 20 °, 60 °, 85 ° respectively;
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data;
(4) Humanized design, good man-machine communication interface;
(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8)USB communication interface to communicate with PC;
(9)PC softwarecan be extended more functions.
Product Name |
Gloss meter |
|||||||||||
Model |
WG60G |
|||||||||||
Measurement Range |
0-2000Gu |
|||||||||||
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, printing, paper; Other metallic material. |
|||||||||||
Instrument Dimensions |
122x34x60mm |
|||||||||||
Projection Angle |
60° |
|||||||||||
Measuring Spot |
(ellipse: long axis*minor axis)3mm*1mm |
|||||||||||
Measuring Mode |
Automaticmeasurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode |
|||||||||||
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
|||||||||||
Data Storage |
500 groups |
|||||||||||
set standard sample in any stored data, user-define the tolerance range |
||||||||||||
Language |
Chinese/English |
|||||||||||
Output |
connect the micro printer to realize real-time output of measured data |
|||||||||||
Division Value |
0.1Gu |
|||||||||||
Repeatability |
0.2Gu |
|||||||||||
Reproducibility |
0.4Gu |
|||||||||||
Indication Error |
1.0Gu |
|||||||||||
International Standard 60° |
ISO-2813,ASTM-C584,ASTM-D523,DIN-67530,ASTM-D2457,JND-A60,JND-P60 |
|||||||||||
National Standard 60° |
GB 9754,GB 9966,GB 8807 |
|||||||||||
Standard Accessories |
Power adapter/user manual/warranty certification/standard board/software GlossW |
|||||||||||
Optional Accessories |
micro-printer |
|||||||||||

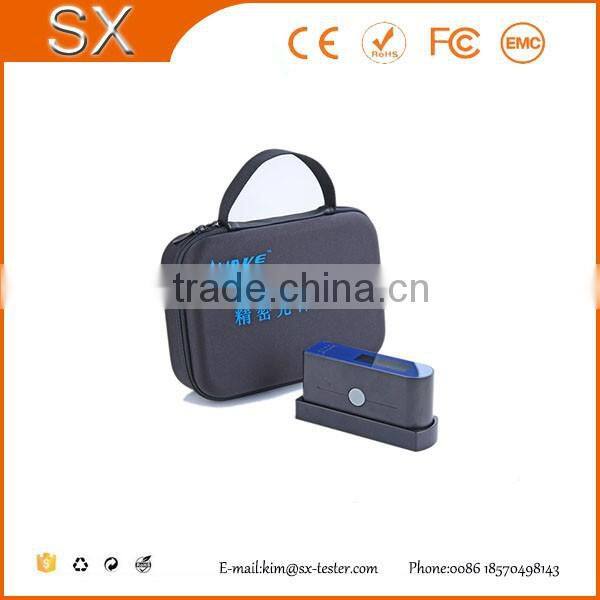

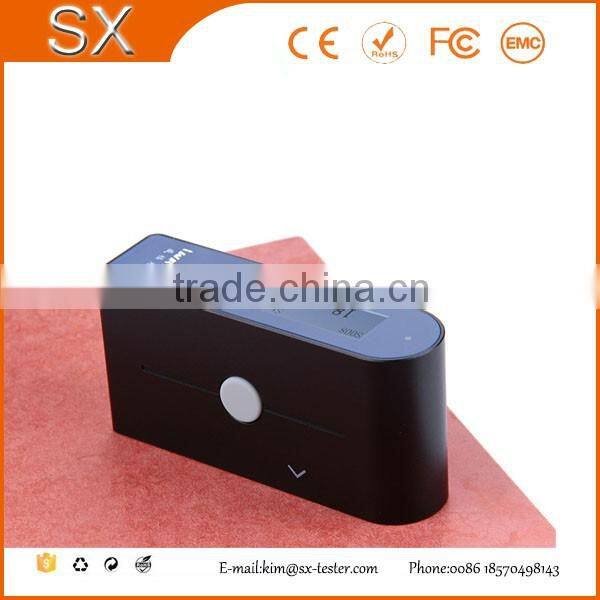

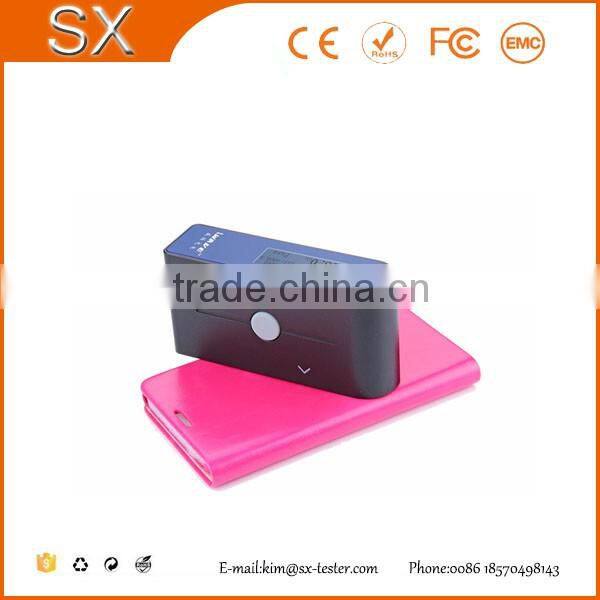

Appearance:

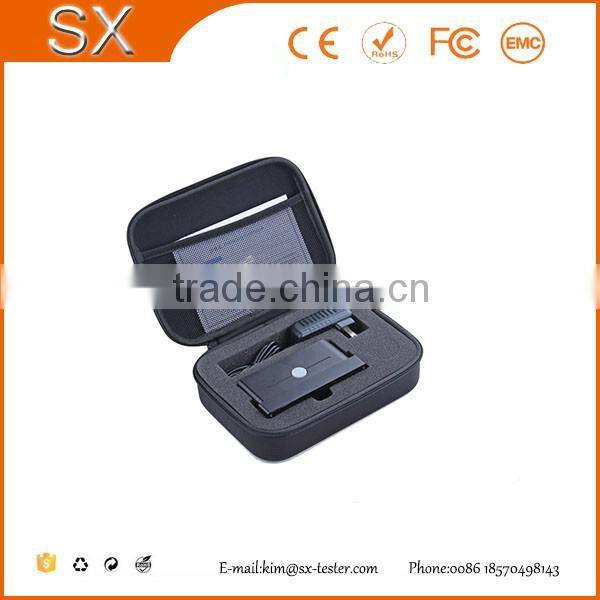

packing:
Shipping
1)24h online, if you have any question, we can help you solve it quickly (include pre-sales and after sales)
2)our testing equipments warranty for one year, after warranty, we can supply you longlife maintenance.
. 3)all things are in english. from technology consulting, purchasing and after service,we all have prefessional person to support
Q:How long the delivery time ?`
A: 3-7 days after we received your payment or the order confirmed.
Q:What is the warranty for the equipments?
A: two year warranty,but we can provide you lifelong technical support.
Q: What is the payment terms?
A: T/T,Western Union,Moneygram,L/C at sight,etc.
Q:How about the products quality?
A:Each equipment must be carried out 100% quality examination and test before shipping.All our products apply to ISO,ASTM,BS,EN,etc.Our products got CE certificate.
