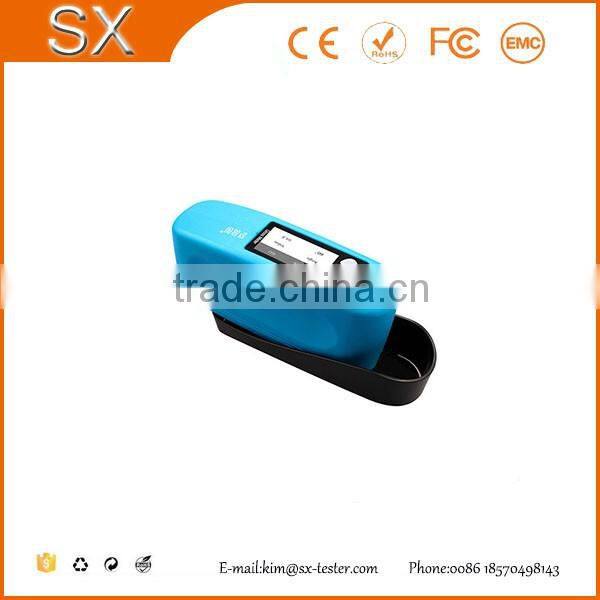

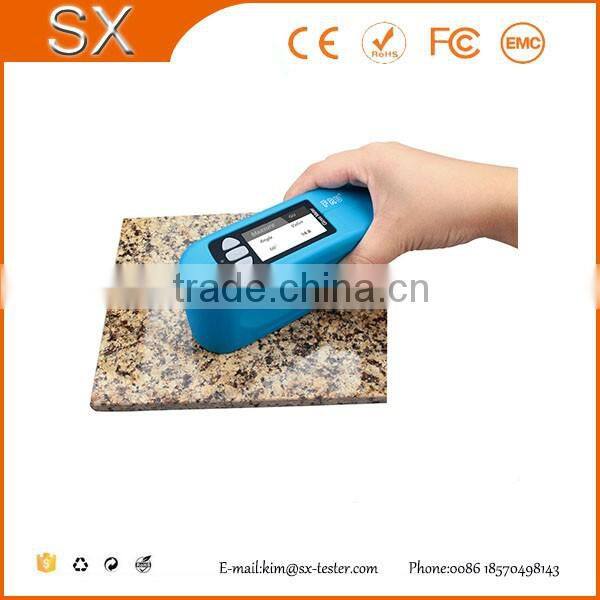

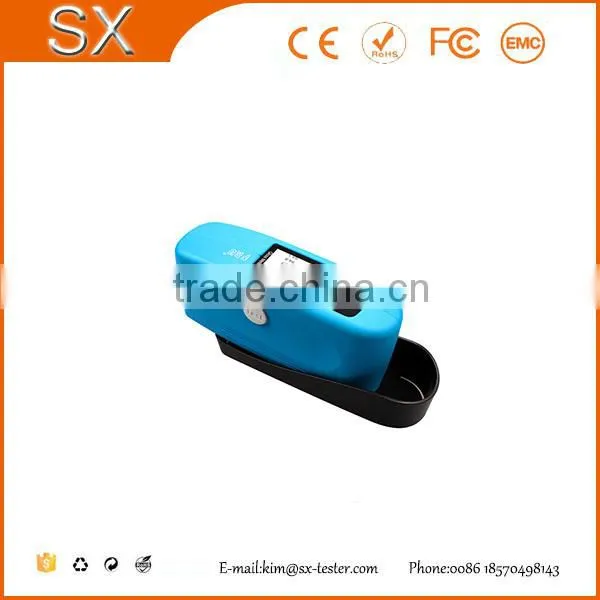

digital stone gloss meter
- 10000 Set / Sets per Month
- sz
- Credit Card
Product Details
| Brand Name: | OEM | Model Number: | WG60A |
Product Description
Precision Gloss Meter
Gloss Meter WG60A unction Description
(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.
(2) Manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8) USB communication interface to communicate with PC;
(9) PC software can be extended more functions.
Attachment Description
(1) Power adapter: standard + 5V, 2A external power supply;
(2) Standard board: provide calibration criterion.
(3) USB cable: connect instrument to PC.
Specification | Unit | Single Gloss Meter | Triangle Gloss Meter |
Measuring Angle | degree | 60° | 20° 60° 85° |
Measuring Range | GU |
60°: 0-1000
| 20°: 0-2000 60°: 0-1000 85°: 0-160 |
Measuring Spot | mm |
60°: 9x15
| 20°: 10x10 60°: 9x15 85°: 5x18 |
Division Value | GU | 0-1000: 0.1 1000-2000: 1 | 0-1000:0.1 1000-2000:1 |
Repeatability | GU | 0-100:0.2 >100:0.2% | 0-100:0.2 >100:0.2% |
Indication Error | GU | ±1.5 | ±1.5 |
Zero Error | GU | 0.2 | 0.2 |
Working Temperature | ℃ | 10℃ - 40℃ | 10℃ - 40℃ |
Storage Temperature | ℃ | -10℃ - 70℃ | -10℃ - 70℃ |
Humidity Range |
| Relative humidity less than 85%, without condensation | Relative humidity less than 85%, without condensation |
Power Adapter |
| Section 2 5 alkaline batteries/power adapter | Section 2 5 alkaline batteries/ power adapter |
Volume | mm | 159x49x72 | 159x49x72 |
Weight | g | 500 | 500 |
