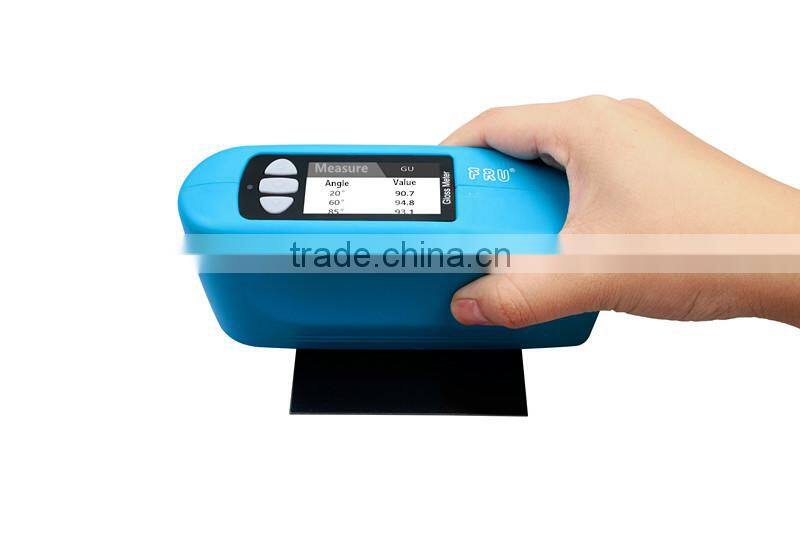

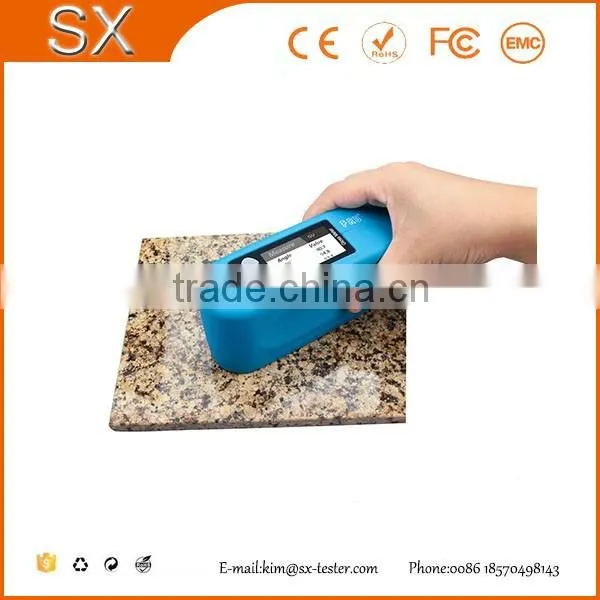

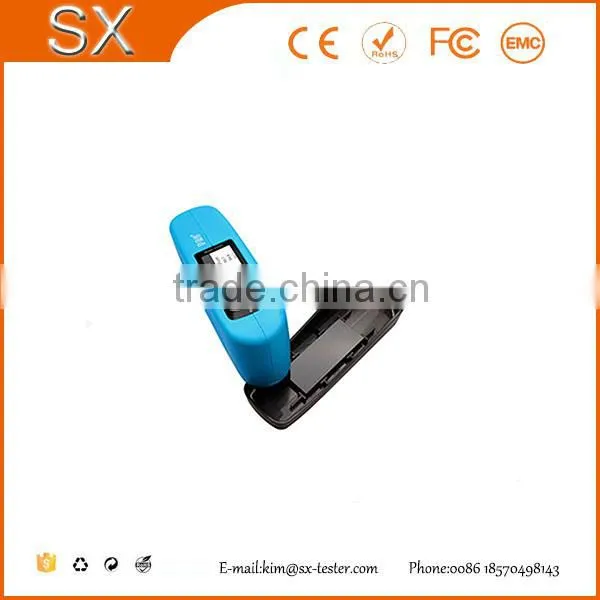

Precision GlossMeter
WG68 Precision Gloss Meter
Gloss meter WG68 functional description
(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incidenct angle of mirror gloss meter is 20 °, 60 °, 85 ° respectively;
(2) Optional angle mode: choose measuring angle or angle combination according to user needs.
(3) Manually entering standard samples gloss data;
(4) Humanized design, good man-machine communication interface;
WG68 specification:
Specification |
Unit |
Triangle Gloss Meter |
Measuring Angle |
degree |
20° 60° 85° |
Measuring Range |
GU |
20°:0-2000 60°:0-1000 85°:0-160 |
Measuring Spot |
mm |
20°: 10x10 60°:9x15 85°:5x18 |
Measuring Spot |
GU |
0-1000:0.1 1000-2000:1 |
Repeatability |
GU |
0-100:0.2 >100:0.2% |
Indication Error |
GU |
±1.5 |
Zero Error |
GU |
0.2 |
Working Temperature Range |
℃ |
10℃ - 40℃ |
Storage Temperature Range |
℃ |
-10℃ - 70℃ |
Humidity Range |
Relative humidity less than 85%,without condensation |
|
Power Adapter |
Section 2 5 alkaline batteries/power adapter |
|
Volume |
mm |
159x49x72 |
Weight |
g |
500 |
