50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice

50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-1
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-2
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-3
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-4
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-5
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice thumbnail-6
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-1
50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-2

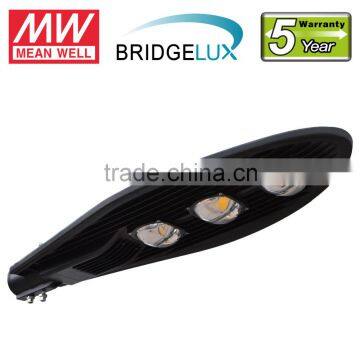

50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-3

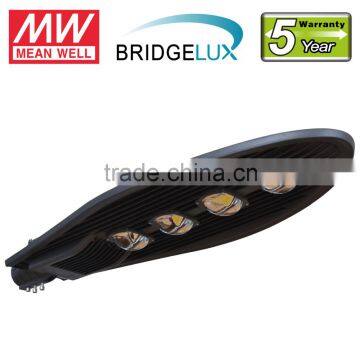

50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-4

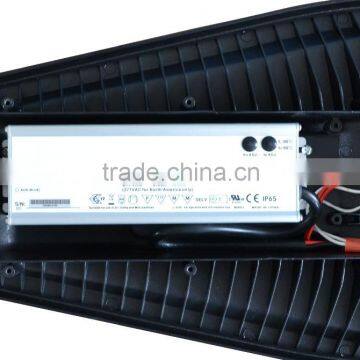

50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-5

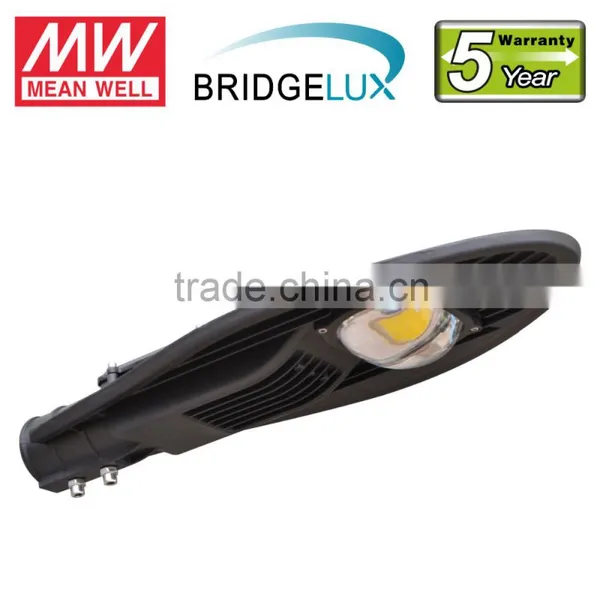

50w 100w 150W 200w LED Street Light, IP67 5 Years Warranty LED Street Light Quality Choice photo-6
US$ 26.2 - 199.9 MOQ: 1 Set
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux 45mil LEDs (America)
Input Voltage(V):
AC90-305V DC127-431V
Lamp Power(W):
100
Contact Supplier Request Quote Chat Now
Ningguo Hubang Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Bridgelux 45mil LEDs (America)
Input Voltage(V) AC90-305V DC127-431V
Lamp Power(W) 100
Lamp Luminous Flux(lm) 1100
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP67
Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE
Warranty(Year) 5
Place of Origin Anhui, China
Brand Name HB
Model Number HB-RD504

50w 100w 150W 200w lamp housing price module IP67 5 years warranty manufacturers cob led street light



Detailed  parameter



 50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light



                                                       Detailed arameter

Model

HB-RD504A

HB-504B

HB-504C

HB-504D

Category

                                               Road Light

Power

50W

100W

150W

200W

Input  Voltage

                                AC90-305V  DC127-431V

Light source

                          Bridgelux 45mil  LEDs (America)

Power drive

                           MEANWELL HLG series

Size(mm)

  505*215*80

   722*279*95

   882*338*95

  1100*420*110

Package  Size(mm)

  515*245*100

  730*305*135

  915*382*132

  1110*430*125

Net Weight

     2.6kg

     5.3kg

     7.2kg

      11.8kg

Gross weight

     3.0kg

     6.0kg

    8.4kg

       13kg

Power Fator

                                             >0.95

LED QTY

50W*1pcs

50W*2pcs

50W*3pcs

50W*4pcs

Efficiency(lm/w)

                                           >110lm/w

Frequency

                                            50/60HZ

Material

                               Aluminium + tempered glass

Available color

                                    Gray/customized

Light degradation rate

                                     25000h ≤ 30%

Rated life

                                           50000h

Working temperature

                                         -40~+50°C

IP grade

                                             IP67

Color rendering index

                                            Ra>85

Warranty

                                           5 Years

Application

Highway,courtyard,road,Downtown streets,Parking lots,etc.





Features:

1. High Power, high lumen, high quality, high efficiency, high CRI & luminous flux

2. Save 80% more energy compared with traditional lighting fixtures

3. Easy to install and use, secure and reliable

4. No UV or RF interference, No mercury or lead

5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface,

exiguity  and unique design, excellent heat dissipation

6. long life span>50000hrs

7. High brightness, low consumption, green for environment

8. PMAM lens, 120°for your choice

9. Built-in LED driver with IC ensure stability of light, it can work efficiently under

10. AC90-305V in different countries and regions.

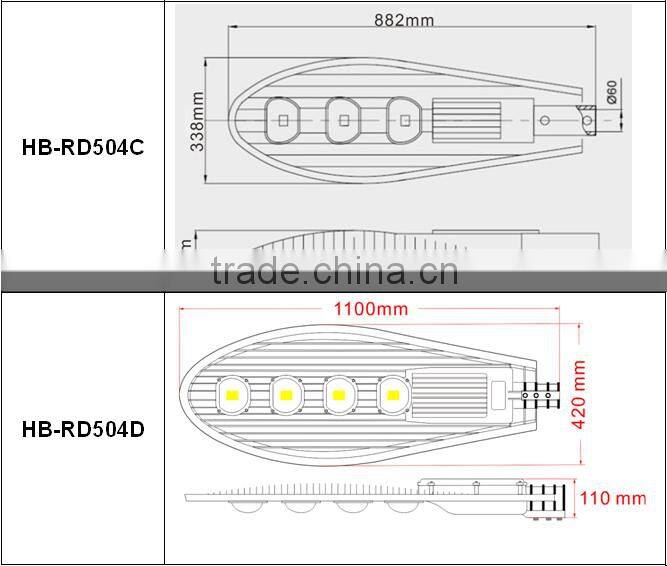

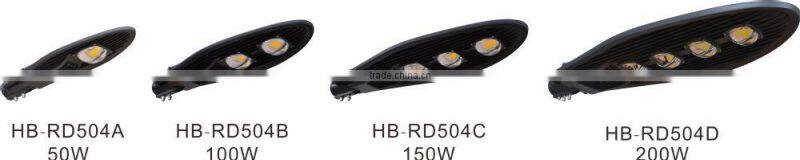

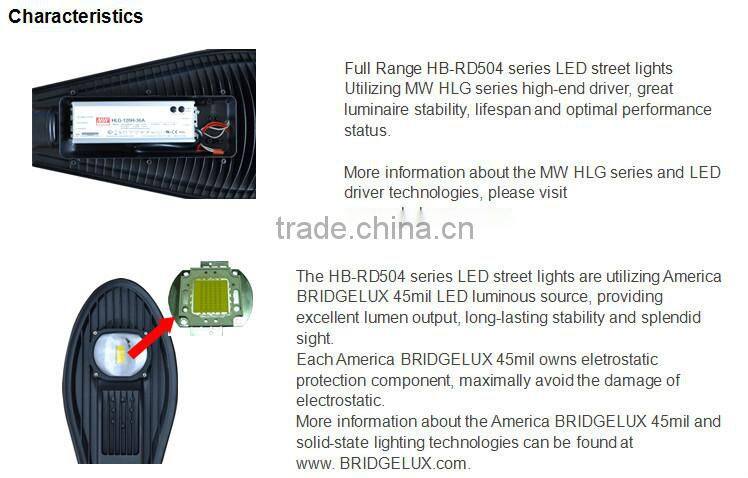

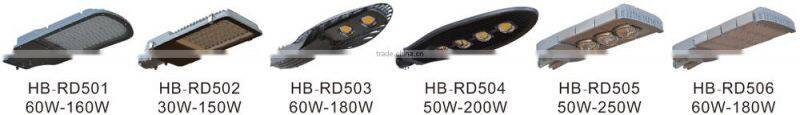

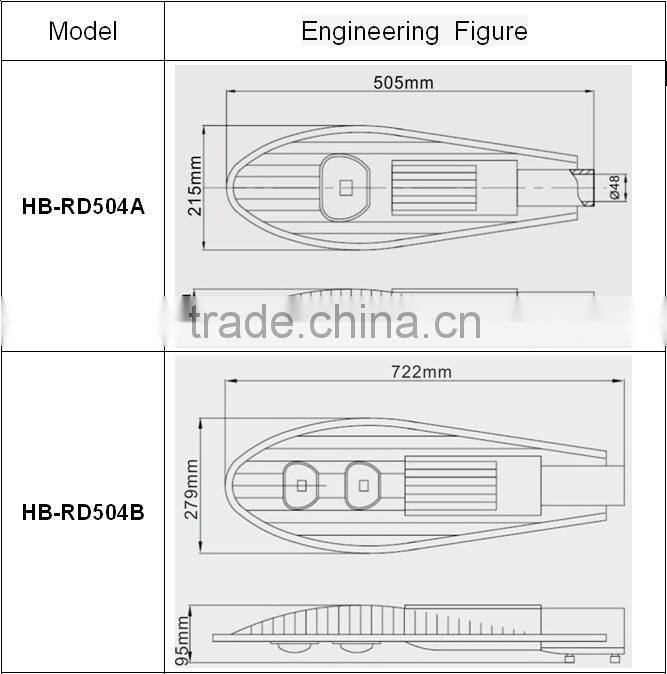

Specification

50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light



50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light




50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light

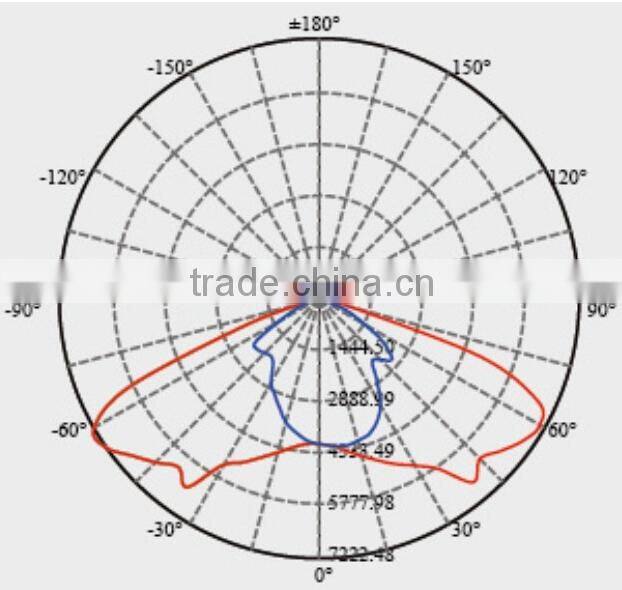

Light Distribution Curve

50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light

50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light

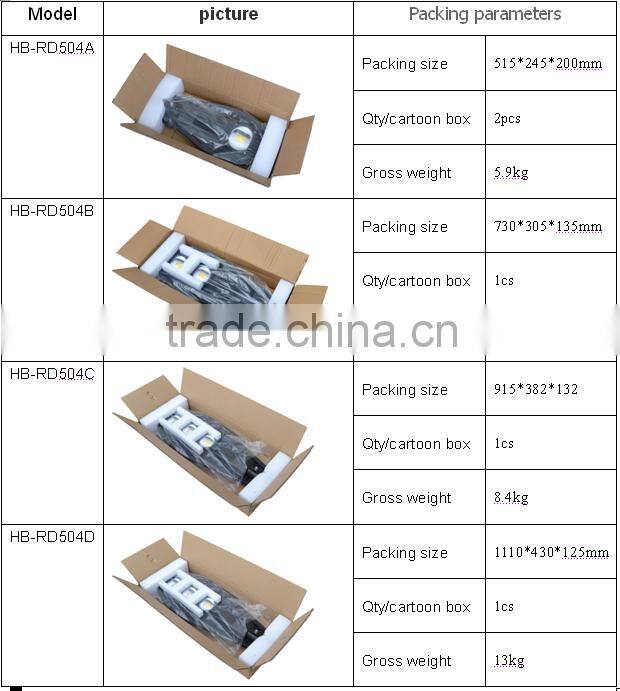

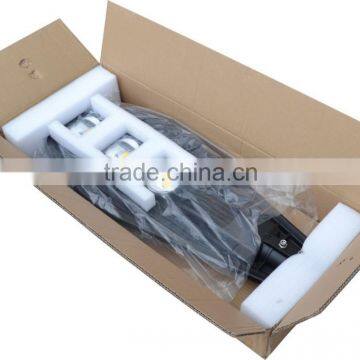

Packaging & Shipping

 50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light











FAQ

Trade Terms:

1.Payment terms: 40% deposit,balance before delivery or irrevocable L/C at sight.

2.Delivery time: 3-10days after receiving deposit.

3.Price terms: FOB, CFR, CIF all acceptable.

4.Discounts are negotiable according to ordered quantity.

5.MOQ: 1pcs of each model.



Shipping & Duties:

Shipping will be arranged within 3 Days upon payment or deposit, from Monday to Saturday.

Company Information

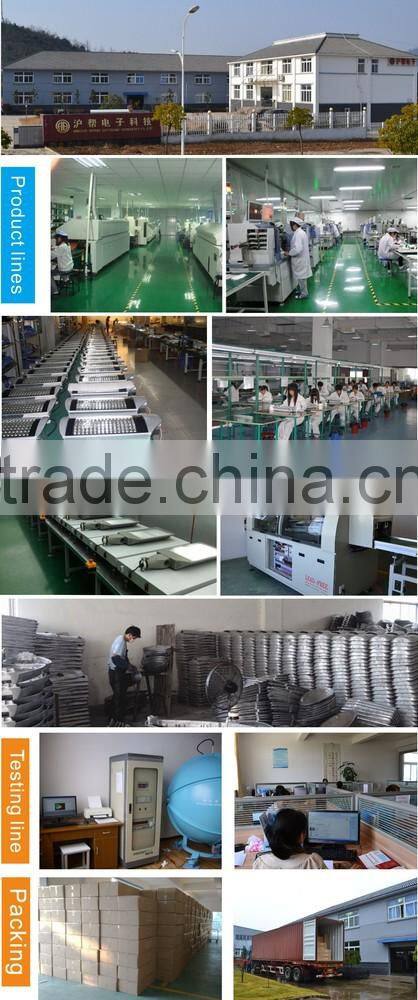

Our Factory and workshop

  50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light



CERTIFICATE

50w 100w 150W 200w LED Street Light, IP67 5 years warranty LED Street Light
