Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > 50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice thumbnail-3

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice thumbnail-4

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice thumbnail-5

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice thumbnail-6

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-1

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-2

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-3

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-4

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-5

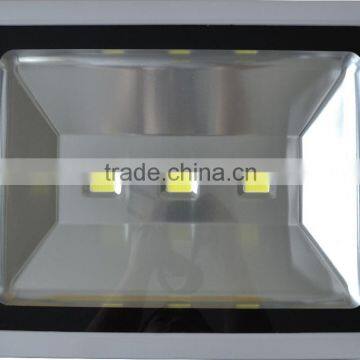

50w 100w 150w 200w IP67 Outdoor Led Flood Light 5 Years Warranty Quality Choice photo-6

US$ 52.4 - 124.2 MOQ: 1 Set

Key Specifications

Get Latest Price

LED Light Source:

Bridgelux

Input Voltage(V):

AC85-305V

Lamp Power(W):

100

Contact Supplier Request Quote Chat Now

Ningguo Hubang Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source Bridgelux

Input Voltage(V) AC85-305V

Lamp Power(W) 100

Lamp Luminous Flux(lm) 11000

Lamp Luminous Efficiency(lm/w) 110

Color Temperature(CCT) Pure White

Working Temperature(℃) -40, 55

Working Lifetime(Hour) 60000

Lamp Body Material Aluminum

IP Rating IP67

Certification BV, C-tick, CCC, CE, CQC, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, SAA, SASO, UL, VDE

Place of Origin Anhui, China

Brand Name HB

Model Number HB-FD601

50w 100w 150w 200woutdoor led flood light

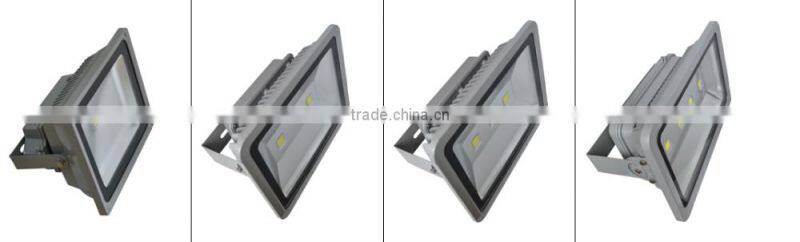

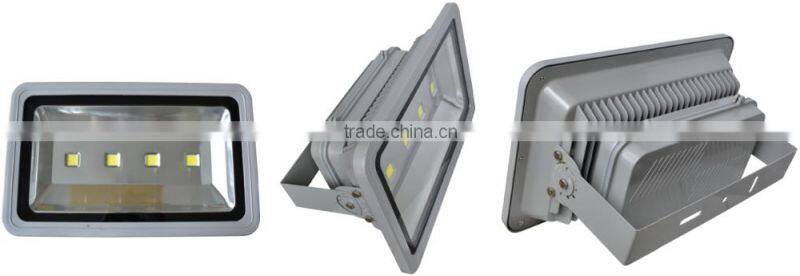

1:PICTURE

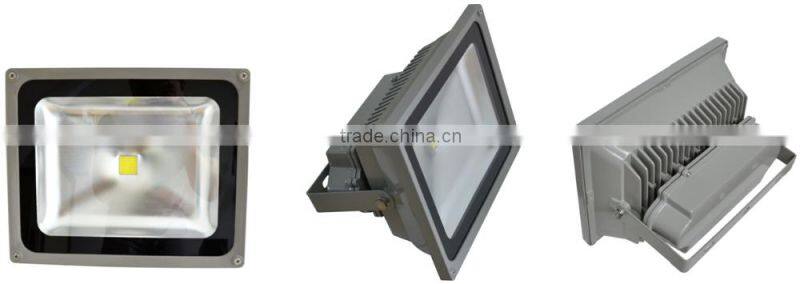

HB-FD601A

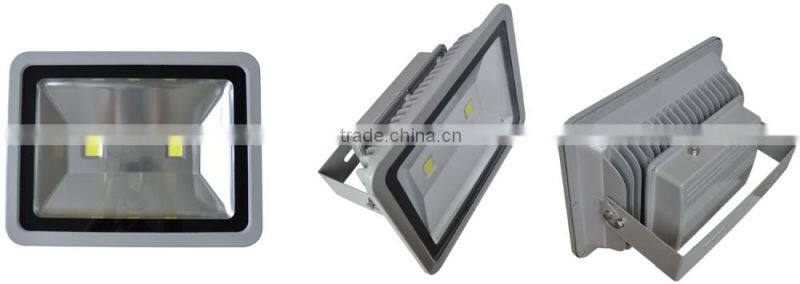

HB-FD601B

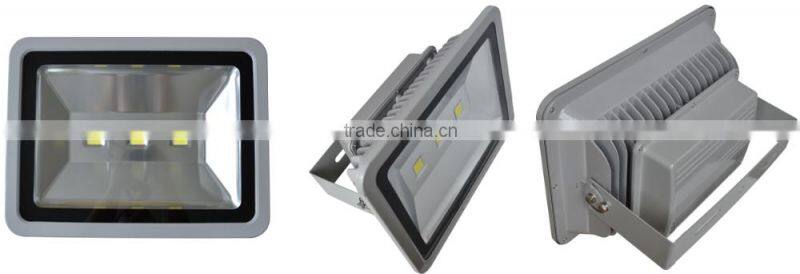

HB-FD601C

HB-FD601D

2,Detailed parameter

Model	HB-FD601A	HB-FD601B	HB-FD601C	HB-FD601D
Category	Flood Light
Power	50W	100W	150W	200W
InputVoltage	AC90-305V DC127-431V
power drive	MEANWELL HLG series
light source	Bridgelux 45mil LEDs (America)
Frequency	50/60HZ
Power Fator	>0.95
Efficiency(lm/w)	>110lm/W
Color renderingindex	Ra>85
Light degradation rate	25000h ≤ 30%
CT(k)	3000K/6000K
LED QTY	50W*1pcs	50W*2pcs	50W*3pcs	50W*4pcs
size	290235150mm	424323176mm	424323176mm	526326185mm
Package Size	335290205mm	435335230mm	435335230mm	530335215mm
Net Weight	4.25kg	7.1kg	7.15kg	8.7kg
Material	Aluminium + tempered glass
IP grade	IP67
Warranty	5 Years
Applications:	All kinds of Cast Light, Flood Lighting.

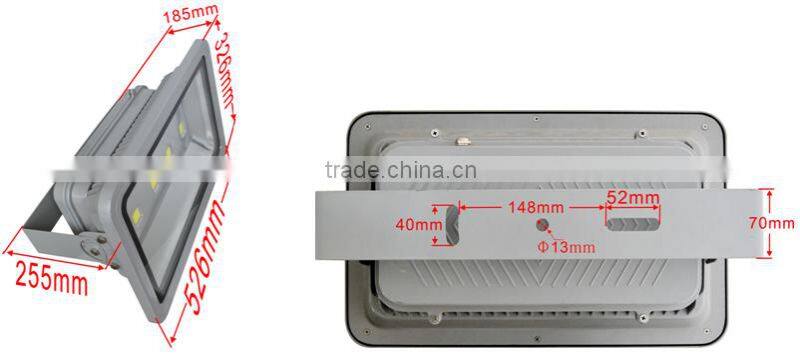

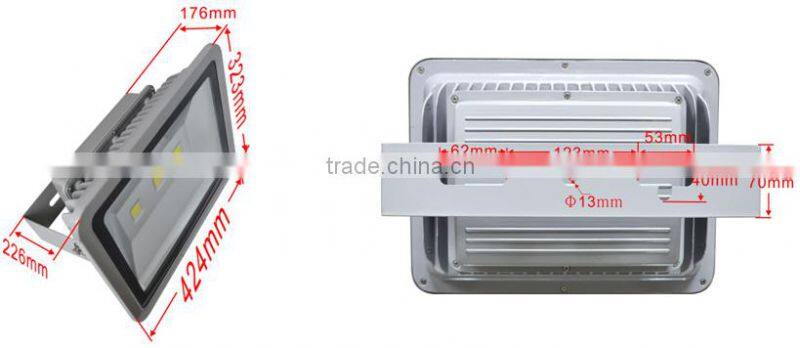

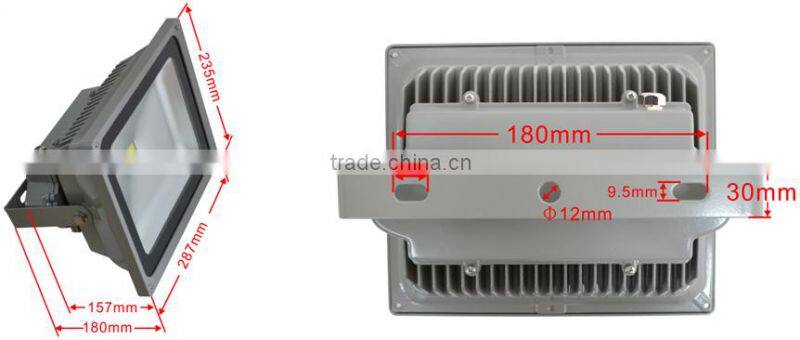

3,size Figure

Model	PICTURE
HB-FD601A
HB-FD601B
HB-FD601C
HB-FD601D

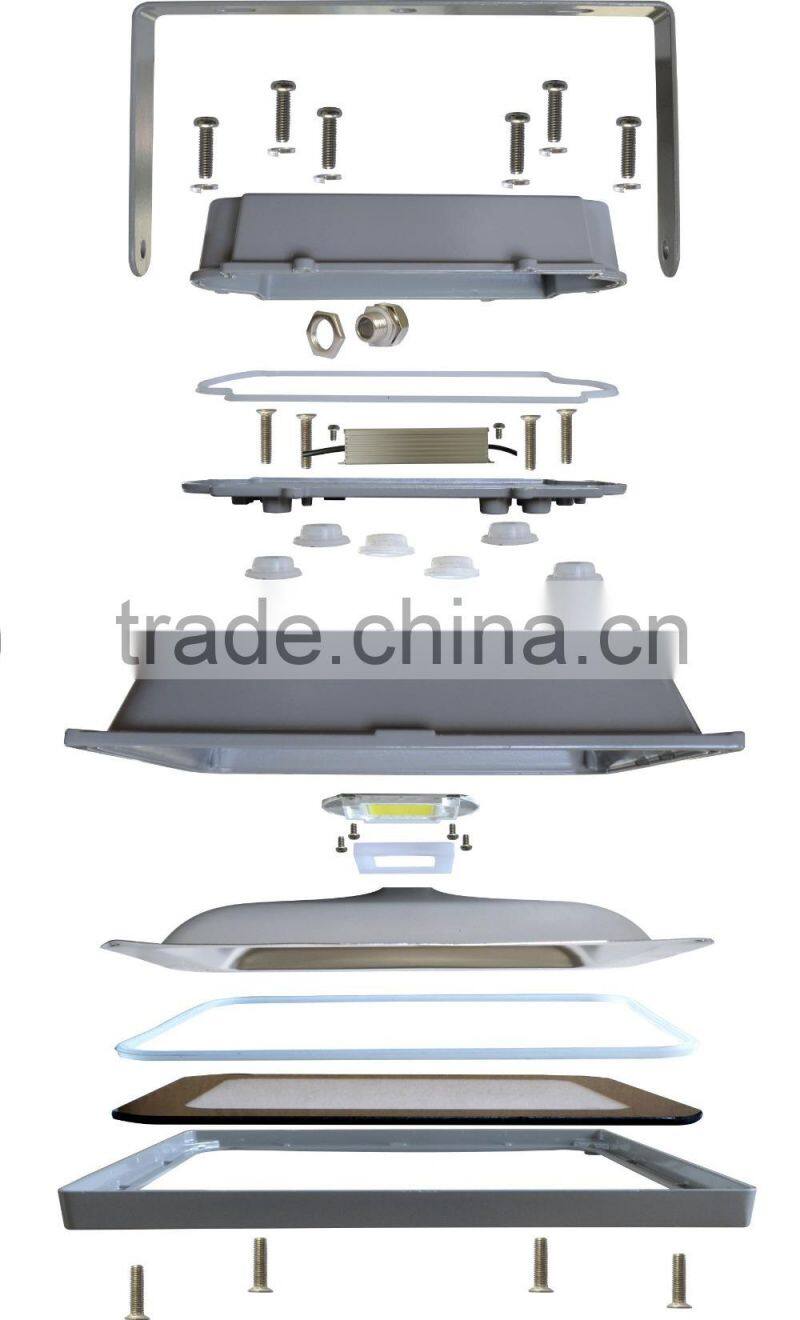

4,Structural features

1. The product surface electrostatic spraying.

2. With Shanghai cuisine HLG series power, wider input voltage, higher efficiency, more stable performance, please visit for details

3. In U.S. pury chip and surface light source encapsulation, of a more uniform light.

4. Beautiful appearance generous.
5. High transparent toughened glass.
6. Using multiple silica gel plug seal and metal protection, protection grade higher and more reliable.

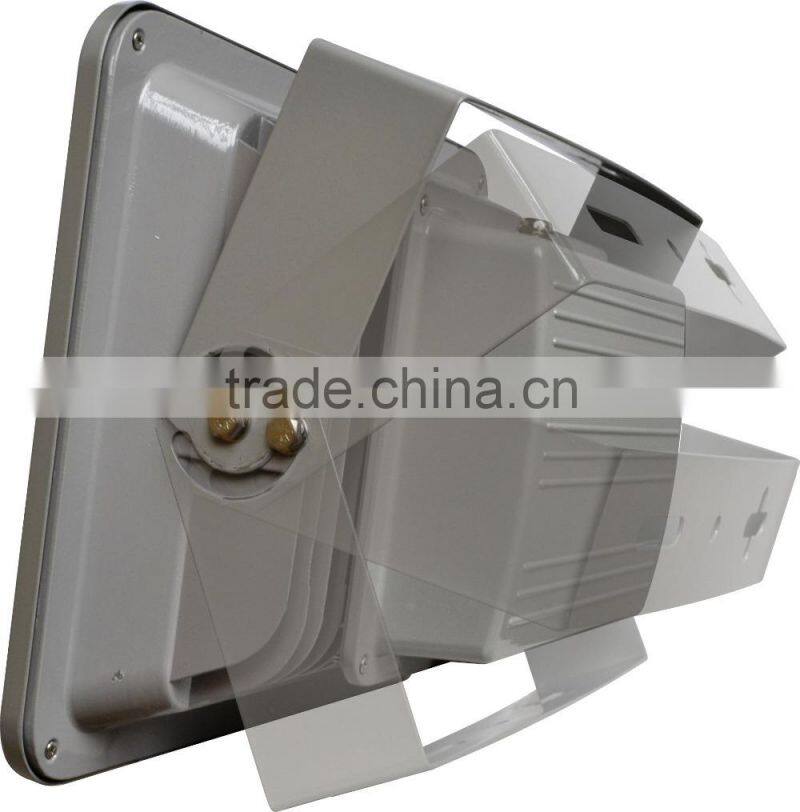

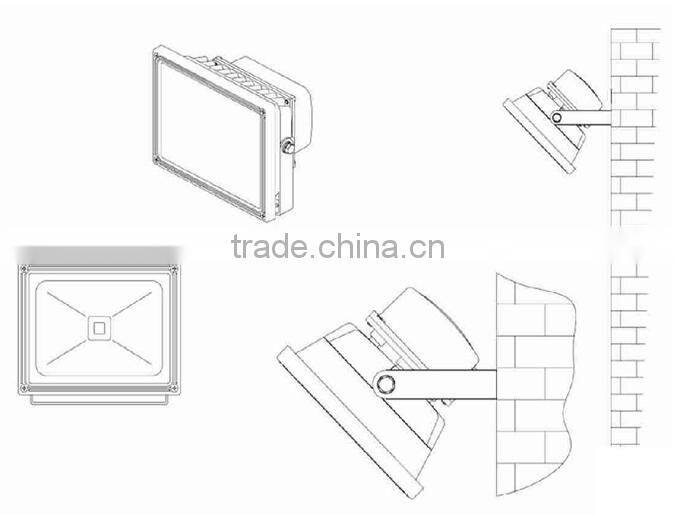

7. Adjustable Angle design, meet the demand of customers a variety of installation, see left-hand chart).

5,Installation instructions

1, through the products on the mounting bracket mounting holes can be screwed directly on the pole or installation.

2, fixed good product can dispatch screw loose, then convert support Angle, which is equivalent to adjust the installation Angle of lamps and lanterns, after adjust Angle will be screwed.

6, installation considerations

Low please cut off the power before installation and ensure the installation position to withstand the weight of the lamps and lanterns.

To prevent light off, please be sure to confirm the installation and correct.

* please do not use where corrosive gas.

* please do not cover any material on the lamp.

For the sake of safety, please pick up the good earth.

Low decomposition of our products, modified, or improper construction of fault is not in the scope of this
