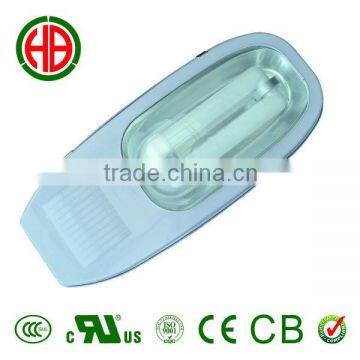

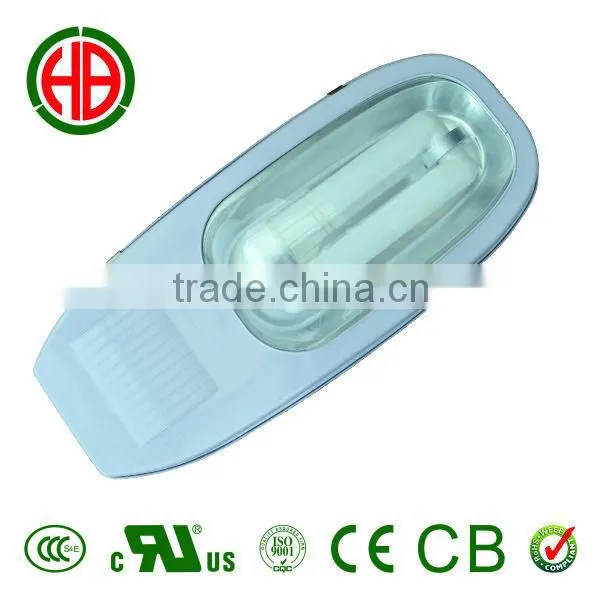

HB-RD201B 200w 250w low frequency induction street lighting
1. Wide voltage range design(100-300V): 40-400W all series wide voltage range design (100-300V), which entirely meet the requirements using in 100V, 120V, 220V, 240V, 277V grid.
2. Designed according to electromagnetic compatible circuit standard: EMC meet GB17625, EN55015 standard.
3. Outdoor special protect function: Add the thunder and anti-surge current function; Insulation Paint process is used on electronic ballasts, which can dampproof, dustproof, anti-oxidation to ensure the lifetime of the outdoor products.
4. Protect function under the abnormal condition (open circuit, electric leakage, short circuit): No high voltage, heavy current, high-power appear during the protect process, improve the product stability, which ensure that the ballast won’t be damaged if the tube load is under any abnormal conditions.
5. Smart sweep frequency start:: Ensure every lights can be lighted up while they are used on a large scale. Avoid the circumstance that the light cannot work normally because of bad environment or voltage instability.
6. High quality import electronic device and IC design: Good stability, good warranty of product lifetime. For example, The United States stmicroelectronics Co.,Ltd FET. The U.S. IR chip companies, electrolytic capacitor Nichicon Corporation of Japan, Taiwan thick sound resistance, capacitance Singapore, etc.
7. High power factor: The power factor of AC external induction lamps 23-400W is 0.98, input current is the smallest under equal power.
HB-RD201B
Type |
Input Voltage (V) |
Current (A) |
Power Fator |
Efficiency (lm/w) |
CT(k) |
Color Index |
Ballast size (mm) |
tube size (mm) |
200W |
100-300 |
2.04-0.68 |
0.98 |
80 |
5000 |
80 |
195*103*50 |
455*155*115 |
250W |
100-300 |
2.6-0.85 |
0.98 |
80 |
5000 |
80 |
214*112*60 |
455*155*115 |
Work Frequency: 230KHz
LIGHT FIXTURE
Type: HB-RD201B
Category: Road Light
Size: 935*400*245mm

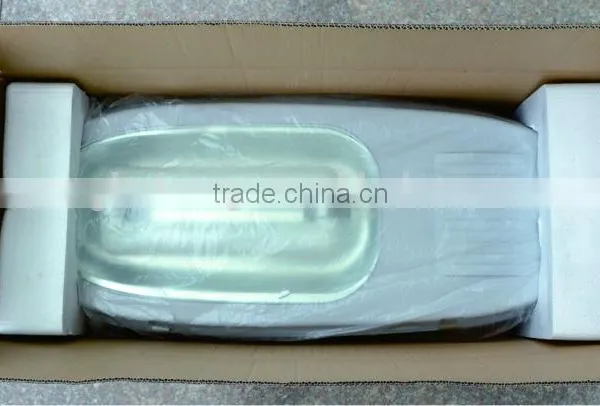

Package Size: 980*420*310mm
Net Weight: 9.4kg(200W/250W)
Gross Weight: 10.8kg(200W/250W)

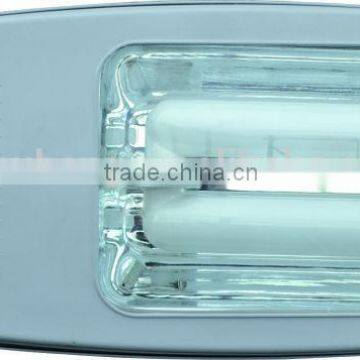

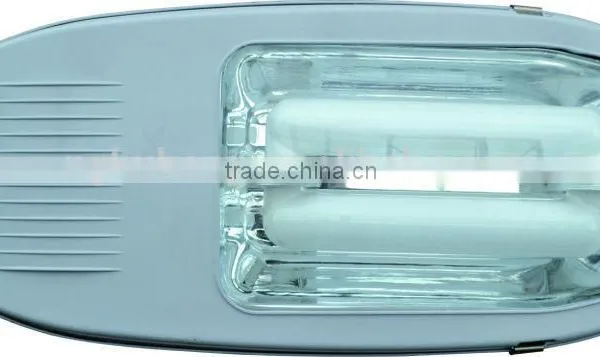

Lamp source: HB Induction Lamp(square)
Power: 200W-250W
IP grade: IP65
HB-RD201Binclude Tube, Ballast,Fixture.
Applications:
Urban roads, Highways, Downtown streets, Parking lots.

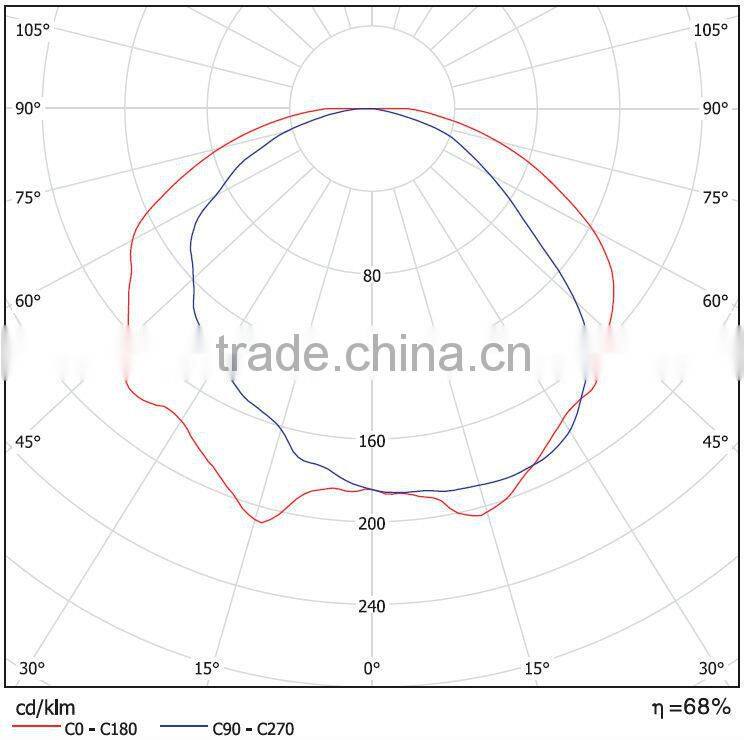

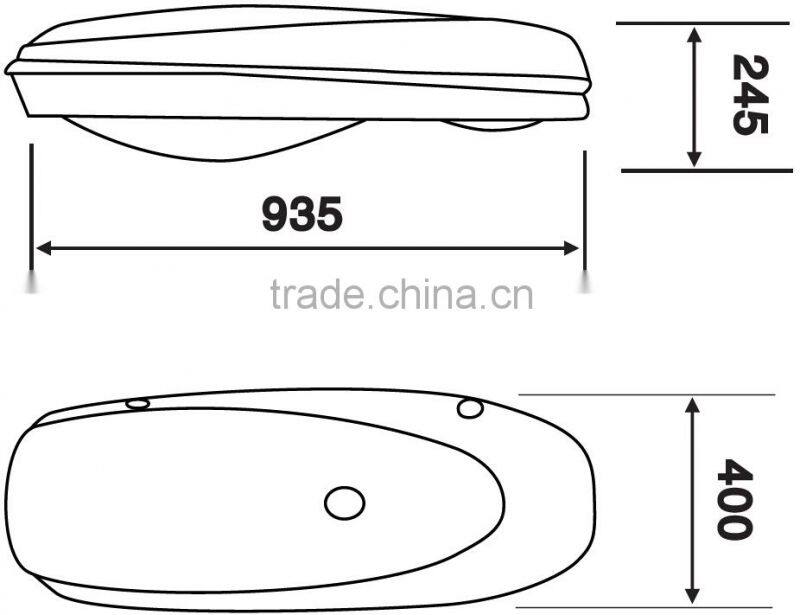

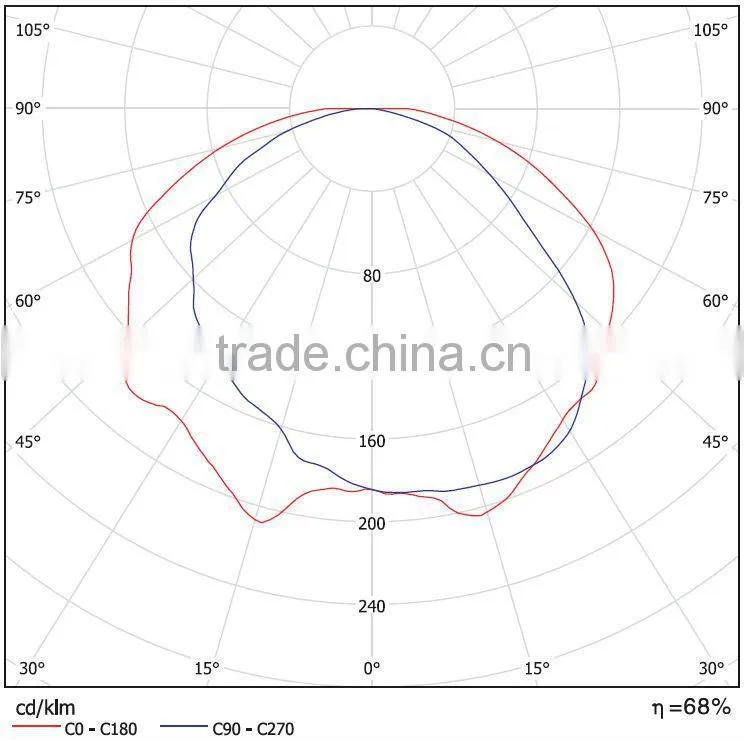

Light Distribution Curve Engineering Figure
Structural features:
1. High-pressure die-cast aluminum electrical box, using light, electrical split design.
2. Professional induction lamp reflector surface structure design, using mirror reflective surface treatment process.
3. Imported mirror aluminum reflector, high reflectivity, ensuring high flux output.
4. Unique lighting design, to ensure that the lamp heat dissipation.
5. High-strength glass, high transmittance, high impact.

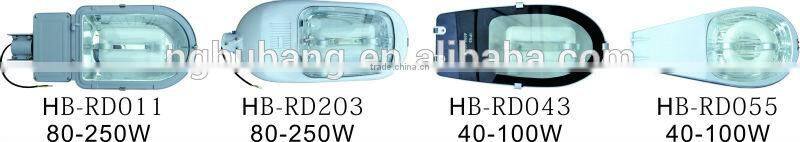

Other Smilar HB Fixtures:

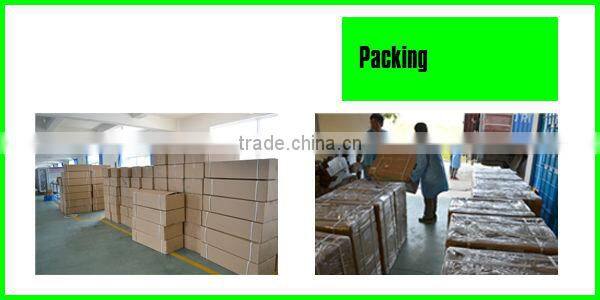

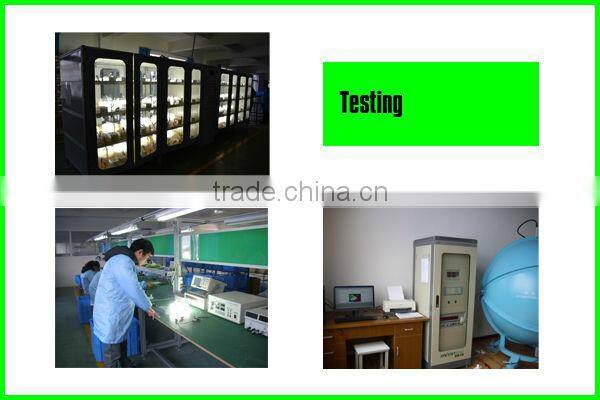

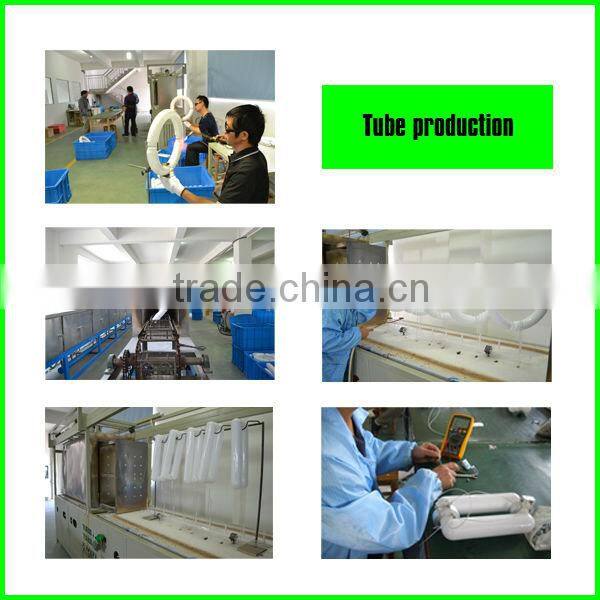

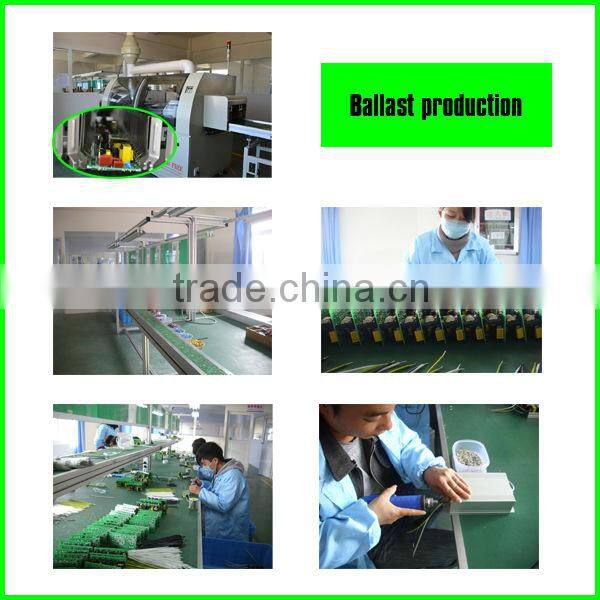

Our Factory and workshop
