Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > 1.6m*3m Working Area Cutting Bed,high Precision Cutting

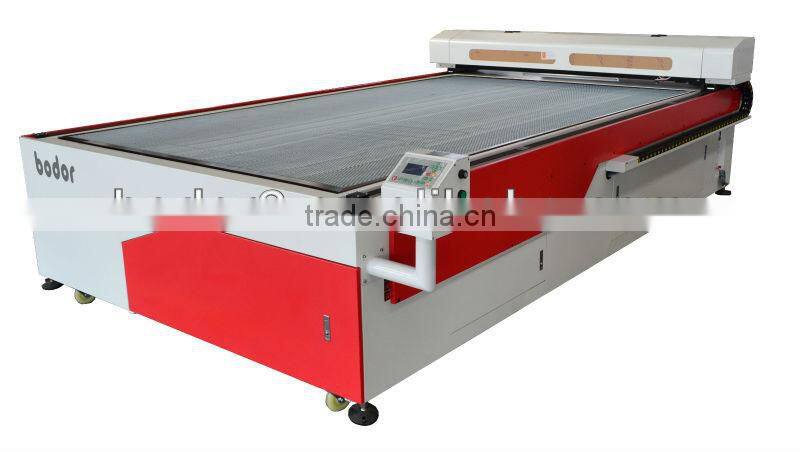

1.6m*3m Working Area Cutting Bed,high Precision Cutting
US$ 3,000 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hardware Fiber Metal Laser Cutter EquipmentUS$ 10,000 - 100,000MOQ: 1 Set -
500W 1000W 2000W Fiber Laser Metal CutterUS$ 10,000 - 100,000MOQ: 1 Set
-
Cookware Fiber Laser Marking MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Hand-hold Glass Engraving Marking Laser MachineUS$ 2,000 - 10,000MOQ: 1 Set
-
Number Two-dimensional Marking Laser MachineUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Wood
Cutting Thickness
0-30000mm/min
Cutting Area
1300*2500mm/1600*3000mm/1800*3000mm/2000*3000mm/2000*6000mm
Cutting Speed
0-30000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
RD
Graphic Format Supported
AI, PLT, BMP, DST, DWG, LAS
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL-1325B
Certification
CE, SGS, Other, CE, SGS, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1:High sfficiency&long life laser tube2:Imported Focus Lens and Mirrors
3:Life time of laser tube reach to 10000 hours.
Main Features
1. Working table: Honeycomb working table with special treated material. Never fray and easy operation, suitable for all kinds of flexible materials.
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase
stepper motor to ensure the working accuracy.
4. High efficiency tube with stable laser path, life time around 10000 hours.
4. High efficiency tube with stable laser path, life time around 10000 hours.
Technical Parameters
| Model | BCL1325B | BCL1630B | BCL 1830B | BCL 2030B | BCL 2060B | |
| Working Area | 1300*2500mm | 1600*3000mm | 1800*3000mm | 2000*3000mm | 2000*6000mm | |
| Laser Power | 60w/80w/100w/130w/150w | |||||
| Laser Type | Sealed Co2 Laser Tube,10.6μm | |||||
| Cooling Type | Water Cooling | |||||
| Cutting Speed | 0—30000mm/min | |||||
| Laser Output Control | 0—100% Software Setting | |||||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | |||||
| Highest Scanning Precision | 4000DPI | |||||
| Locating Precision | ≤+0.01mm | |||||
| Controlling Software | DSP Control System | |||||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | |||||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Sofeware in Cloth | |||||
| Color Separation | Yes | |||||
| Drive System | High-precision 3-phase Stepper Motor | |||||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | |||||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | |||||
| Option |
Up&Down Table(Length:500mm),Honeycomb Worktable,Rotary Device Red Dot Position System,Auto-focus Device |
|||||
Applications:
Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and artcrfts industries,etc.
Applicable Materials:
non-metal materials: cloth, leather, paper, wood, bamboo, plexiglass, glass, thin film ,canvas etc.
Garments sampling, large format tailoring ,leather industry ,shoemaking ,decoration,furniture ,advertisement, packing and printing ,molding and artcrfts industries,etc.
Applicable Materials:
non-metal materials: cloth, leather, paper, wood, bamboo, plexiglass, glass, thin film ,canvas etc.
