Home > Products > Fiber Laser Cutting Machine > fiber laser metal cutting machine for copper and aluminium
fiber laser metal cutting machine for copper and aluminium
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | According the material 0.2-6mm | Cutting Area: | 1300x2500mm, 1500x3000mm, 1500x4000mm, 1500x6000mm | Cutting Speed: | 25m/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Graphic Format Supported: | AI, BMP, DWG, DXP |
Place of Origin: | Shandong, China | Brand Name: | Bodor | Model Number: | BCL-FB |
Certification: | CE, SGS, Other, CE, SGS, FDA | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Operate easily,high accuracy2.High perforamce ratio
3.Smoothful cutting seam
4.CE,FDA,SGS
Fiber laser cutting machine BCL-FB
Prominent beam quality, excellent cutting speed, high stability and photoelectric
conversion efficiency, low use and maintenance cost, convenient operation and maintenance, widely used in sheet metal rapid and accurate cutting.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Model | BCL 1530FB | BCL 1540FB | Option |
Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
Laser Medium | SingleCoreJunctionSemiconductorModule | ||
Max Cutting Speed | 25m/min | ||
Cooling Way | Water Cooling | ||
Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
Min line width | 0.1nm | ||
Cutting Depth | 0.2-6mm | ||
Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
Power Requirements | 380V/50Hz/16A | ||
Continuous Working Time | 24Hours | ||
Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg |

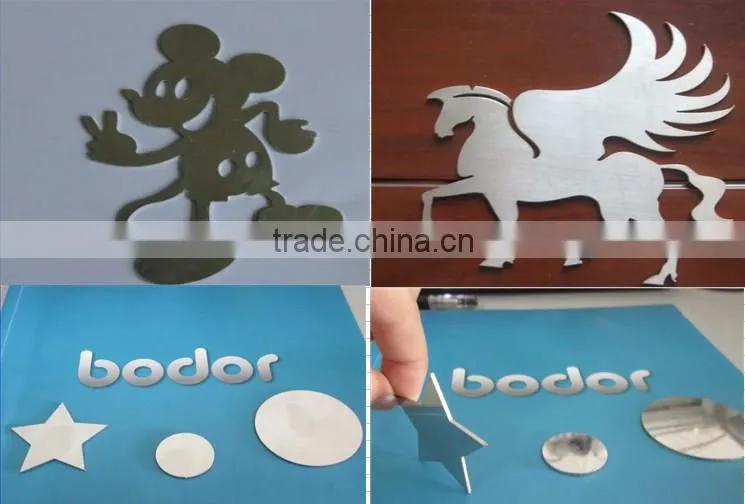

Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.
Contact Us
- Jinan Bodor CNC Machine Co., Ltd.
- Contact nameSandy Geng
- Phone86-0531-88690051
- AddressHuaya Industrial Park, Kanghong Road, High-Tech Zone
