High Pressure Centrifugal Gravel Pump Sand Mud Slurry Pump

FOB Price

US$ 586 - 986 / Set

1 Set(Min. Order)

Port Tianjin Port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	NNT
Model Number	G	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, Mine tailings, gravel, slurry with solids, dredge, sand etc
Power	Electric	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	High Pressure
Application	Other, Mine tailings, gravel, slurry with solids, dredge, sand etc

Product Description

high pressure centrifugal gravel pump sand mud slurry pump

1,Product Overview:

The series of slurry pump product has rational structure, high efficiency, reliable operation, convenient maintenance and other advantages, and is widely used for conveying abrasive or corrosive slurry, especially clinker of power plants in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors.

This pump is of single casing connected by means of clamp bands and wide wet-passage.The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloy.The discharge direction of pump can be oriented in any direction of 360°.This type of pump possesses the advantages of easy installation and operation.good performance of NPSH and abrasion resitance.

2,Main Features:

Single casing structure; High efficiency, wear resistant, wide flow channel, good ability of NPSH, stable performance, easy assembly, liner and impeller can be made of wear-resistant metal, the discharge outlet can be adjusted at any direction, and the pump can be driven with belt.

3,MainUsages:

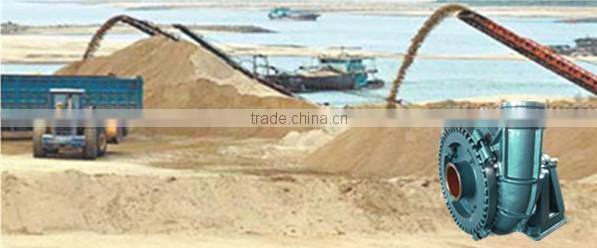

Delivery of slurry with strong abrasion high concentration for metallurgy, mines, coal and power plant, especially the large particles and cavitations conditions.

4, Advantages

Outlet: 4-16 inch
Capacity: to 4320 m³/h
Head: to 80 m
Type: Centrifugal, Horizontal, Single Casing
Wet Parts Materials:High chromium abrasion resistance alloys
Replacement: Interchangeable with other pumps dimensionally

5, Model Introduction

For example:10/8F-G

10:Suction diameter(inch)

8:Discharge diameter(inch)

F:Base type

G:Gravel pump

6, Parameters of G(GH) Slurry Pump

7, Materials

High chrome alloy: A05, A07, A49, etc.

Natural rubber: R08, R26, R33, R55, etc.

Other materials can be supplied as requirements .

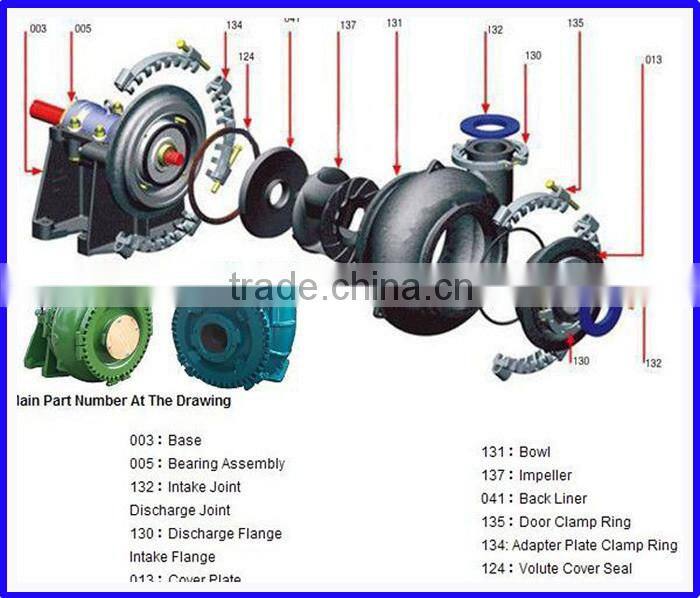

Casting, shaft, throat bush, front liner, back liner, wear plate, case, cover, stuffing box, lantern restrictor,

cover plate bolt, volute, throat bush, shaft sleeve, cover plate liner, frame plate liner ,neck ring, expeller ring,

expeller, bearing assembly, volute liner, volute packing, bowl, bearing cartridge, cover plate liner, impeller,

closed impeller, open impeller

OEM Service

We also provide OEM service according to customer's special requirements .

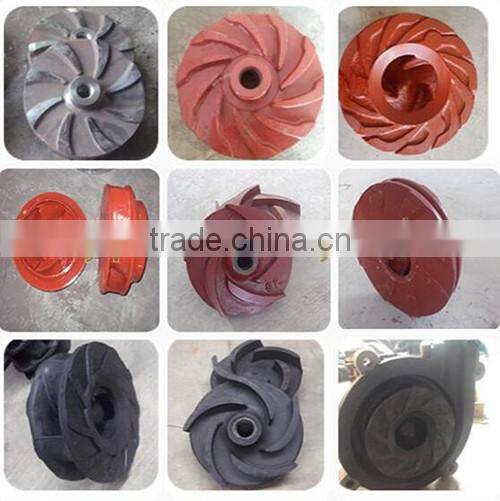

Impellers

Other parts

Applications

Slurry pumps

FAQ

*Can you supply pump qualified with ANSI and ASME standard?

Yes, our pump compliant with ISO / ASME/ANSI standard.

*How can I purchase order without seeing the quality first?

If it is a big order, we can provide a sample for running testing at your plant.

*How do you control the quality of the products?

Our production is strictly according to ISO 9001 standard and factory was established in 1980, have over 30 years experience in slurry pumps and parts.

*How to customize pumps and mechanical seals ?

Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.

*How can I pay for my items? What is the payment you can provide?

Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
L/C at sight

*How long is warranty?

1 year for main construction warranty.

*How long is production leading time?

Normally 25 days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7-15 days.

*What is the shipping terms you can provide ?

Depends on customer's requirements, we can provide different transportation terms, such as EXW, FOB, CIF.

*Who is in charge of after-sales?

Inside sales. It can save customer's time and high efficiency communicate. NNT has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.

*Who is in charge of maintenance?

Local agent. Client is first, if pump running has any problem on site, our local agent will arrival the plant within 24 hours.

About Nainater

Shijiazhuang Nainater Slurry Pump Co., Ltd is a modern pump industry enterprise engages in professional

manufactore, scientific research, develop, sales and service.

Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and

Dredging pump parts, Desulfurization pump and Desulfurization pump parts, Clean water pump and Sewage

pumps, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national

economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than

20 countries and regions. Our products have won unanimous favorable comments from the market.

The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and

our environmental management systems are accredited to ISO 14001:2004.
