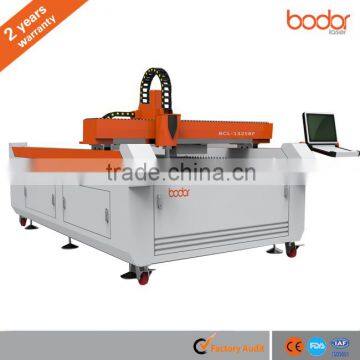

Fiber Optic Metal Laser Cutting Fiber Laser 500W 1000W 2000W
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Laser Type: | Fiber Laser | Applicable Material: | Metal |
Cutting Thickness: | 1-20mm | Cutting Area: | 1500*3000mm/1500*4000mm | Cutting Speed: | Max 25m/min |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Place of Origin: | Shandong, China |
Brand Name: | Bodor | Model Number: | BCL1530FB/1540FB | Certification: | CE, SGS, Other |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

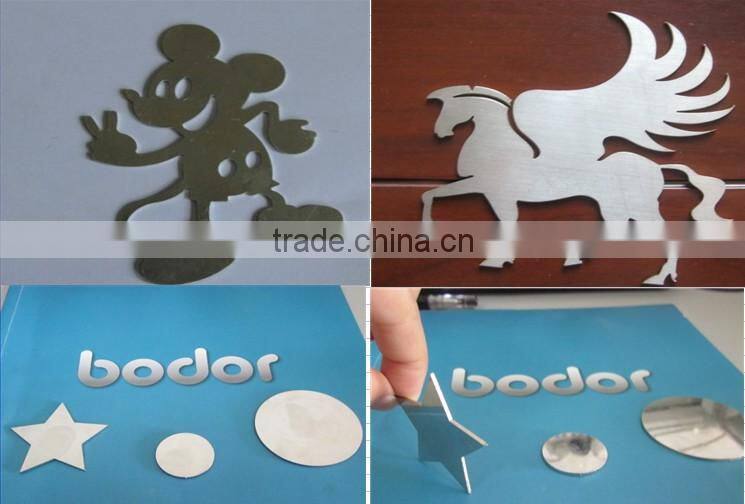

Mainly used for cutting Mild steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials and so on.
Advantage of Fiber laser cutting machine:
1. Excellent path quality: Smaller laser dot and high work efficiency, high quality.
2. High cutting speed: cutting speed is 2-3 times than same power CO2 laser cutting machine.
3. Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
4. High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
7 Easy operations: fiber line transmission, no adjustment of optical path.
Model | BCL 1530FB | BCL 1540FB | Option |
Max cutting range | 1500*3000mm | 1500*4000mm | According to Demands |
Machine Size(Length*Width*Height) | 2.4*4.7*1.9m | 2.4*5.7*1.9m | |
Accessory Parts(Length*Width*Height) | Chitler 1*1*1.2m Control Box 1*0.8*1.8m Fiber Module 0.5*0.6*0.14m | ||
Laser Medium | SingleCoreJunctionSemiconductorModule | ||
Max Cutting Speed | 25m/min | ||
Cooling Way | Water Cooling | ||
Laser Power | 500W(Option 200W/300W/400W/1000W/2000W) | ||
Min line width | 0.1nm | ||
Cutting Depth | 0.2-6mm | ||
Driving and transmission Way | Imported Servo Motor and Linear Guide Rail | ||
Power Requirements | 380V/50Hz/16A | ||
Continuous Working Time | 24Hours | ||
Related Weight | Machine Body 2732kg Trolley 116kg Computer Cabinet 56kg Servo Cabinet 75kg Transformer 77kg Chiller 93kg Fiber Module 50kg |

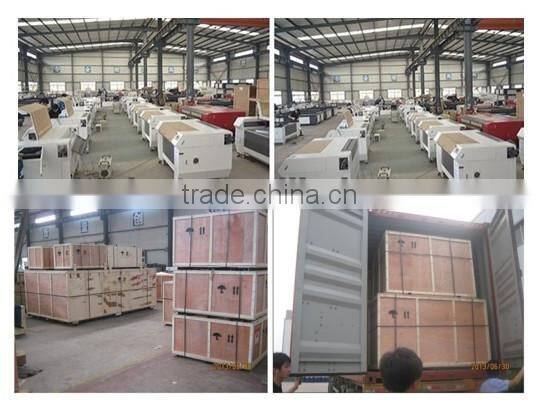

Wooden packgae
Gurantee the whole machine for 2 years and laser tube for 4 months; offer lifelong repair; laser tube’s average life is 4000-10000 working hours(depends on the laser power); Offer 24 - hour technical support.

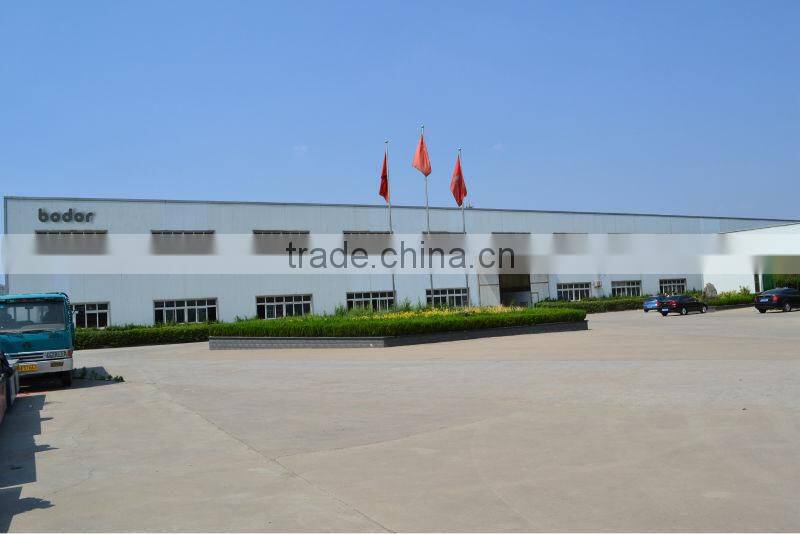

About Bodor
Jinan Bodor CNC Machine Co.,Ltd has been always devoting to the research and manufacturing of the CNC products such as Cutting, Engraving and Marking Machines and so on.Today, Bodor CNC has developed to a large worldwide Manufacturing Group, and becomes an excellent leader of the world in this field.
Bodor CNC was founded in 2002, and changed its name to "bodor" formly in 2008.We can supply Laser Cutting, Engraving and Marking Machines,Dot Peen Marking Machines, and many other industrial automation equipments.Meanwhile,we can also supply industrial automation sulutions according to your special needs.
Bodor CNC has earned ourselves a good reputation and ten thousands of faithful customers with our advanced technology,standardized producing management,stable products,and the best services.Through years of international marketing experience,we have established business relationships with customers from North America,West Europe,South Asia,and Middle East,etc.Welcome to join the world of Bodor CNC,you can experience the world-class products and services together with our customers all over the world.
QC example
1.Laser tube test
Every laser tube and power supply will be adjusted for continual 8 hours(electrify every 7 seconds); "power test equipment" test power consumption and get real output power and laser jet distance.
Picture 1 and 2: use "power meter" get laser tube's power in tested current: make the light sensation piece in middle to aim at output entrence of laser tube, also put it 20mm from output entrence, make current to test current situation, then you can see the number on power meter display screen, when it is stable, it is real power of laser tube. Meantime, you can test the light spot effect with it.
Not qualified laser tube will be returned to our supplier!
2.laser head, control panel and power supply adjustment
All laser head, control panel and power supply will be aging test, to test its stablity and function, so as to ensure all of them are best-to-use before into storage.
3.Square guide rail test
Test point: check square guide rail flatness, straightness; test size and pitch-row according to design; Put the square guide rail on marble, check whether it is curve, ensuring the error is < 0.1mm.
4.Synchronizing wheel test
Test point: check synchronizing wheel's flexisiblity, check whether it is the same step and uniform with bearing.
5.Laser tube holder, bearing holder, transmission band and strutting piece
Test point: mild, internal precision and durability
6.Test screw, plastic tube and other hardware
Test point: refer to standard if the parts can be tested precisely; if the parts can not be tested precisly, we will compare them with standard sample, compare every hardware's standard to ensure every parts has their own precise specification.
7.Whole machine adjustment and test
Before delivery, the machine will be adjusted and test by 3 departments, during which quality department will set parameter, adjust parts and then cut/engrave/mark sample materials
Innovation is the motive force of enterprise development !
We are glad to provide custom-made laser solutions and distrbutors wanted all over the world
Contact Us
- Jinan Bodor CNC Machine Co., Ltd.
- Contact nameSandy Geng
- Phone86-0531-88690051
- AddressHuaya Industrial Park, Kanghong Road, High-Tech Zone
