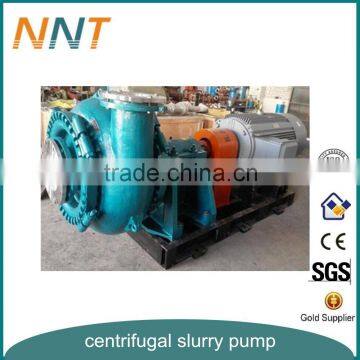

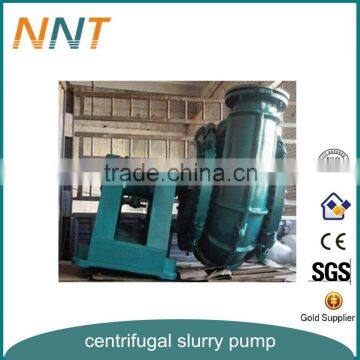

Heavy Duty Root Vegetable Handling Dredge Pump

Product Overview-NNT Pump

------ Features
1. It uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate;

2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;

3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;

4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;

5. It uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature;

6. Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions;

7. In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

------Specifications

Discharge size: 4 ~ 24 inches(100mm ~ 610mm)

Flow capacity: up ot 12600 m ³ /h(55440gpm)

Head: up to 92 m(302 foot)

Max allowable particle size: 380mm

 Model & Dimensions-NNT Pump

------Model  Meaning

14/12 G—— G

14—— suction discharge diameter (inch)

12—— discharge diameter (inch)

 G —— frame form

 G —— gravel pump

-------Pump  Structure

Pump Applications-NNT Pump

1, Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.

2, Dredging, suck gravel in the dredger,  suck gravel in the course of rivers
3, Delivering slurries in mining, explosive sludge in metal smelting
4, Type GH pumps are of high-head ones

Related Pump-NNT Pump

About NNT Pump

Shijiazhuang Nainater Slurry Pump Co., Ltd is a modern pump industry enterprise engages in professional

 manufacture, scientific research, develop, sales and service.
Our company is specialized in manufacturing: Slurry pump and Slurry pump parts, Dredging pump and

 Dredging pump parts, Desulfurization pump and Desulfurization pump parts, Clean water pump and Sewage

 pumps, are widely used in mine, metallurgy, coal, electric power ,dredge and other sectors of the national

 economy. These pumps are sold to South America, Africa, Southeast Asia, Russia and so on more than

 20 countries and regions. Our products have won unanimous favorable comments from the market.

 The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and

 our environmental management systems are accredited to ISO 14001:2004.
