Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor

Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-1
Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-2
Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-3
Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-4
Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-5

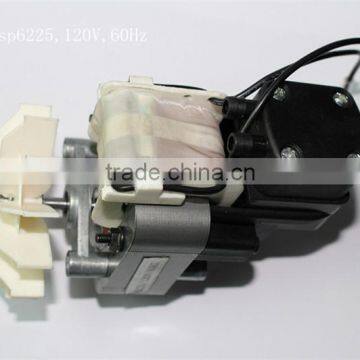

Sigle Phase Shade Pole Motor Air Compressor Nebulizer Motor photo-6
US$ 4 - 5.2 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Haolun
Model Number:
SP63
Type:
Other, Shade pole motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Haolun
Model Number SP63
Type Other, Shade pole motor
Frequency 50/60Hz
Output Power 40W
Protect Feature Explosion-proof
Phase Single-phase
Certification CCC, CE, UL
AC Voltage Other, 110-240V
Place of Origin Guangdong, China
Efficiency IE 2

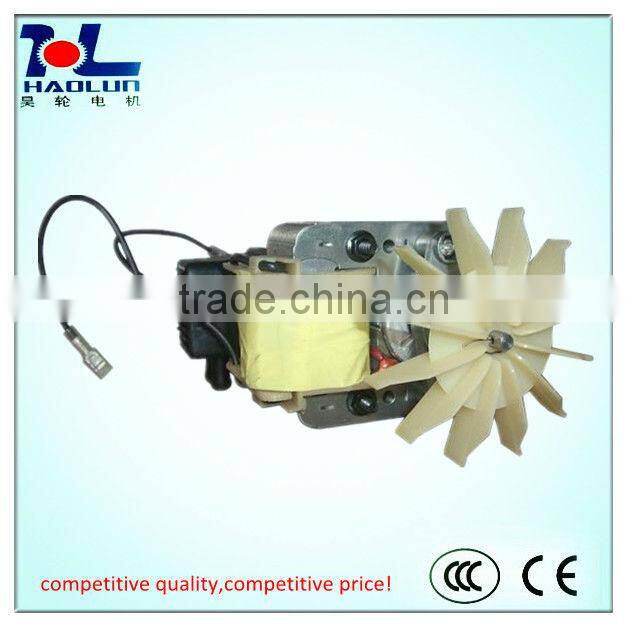

Single phase shade pole motor air compressor nebulizer motor

230V 50/60Hz nebulizer shade pole motor with high pressure high quality.

Usage: for medical nebulizer, air pressure nebulizer and air compressor nebulizer

sigle phase shade pole motor air compressor nebulizer motor



  •
    Nebulizer motor specification
  • Voltage: 110V to 240V
  • Frequency: 50/60Hz
  • Output power: 40W
  • Phase: single phase shade pole motor
  • Thermal protector: 130°C, class F
  • Certifications: CE and UL
  • Pump nozzle direction: three direction for choose

 (1)First direction of air compressor pump



Medical nebulizer air compressor shade pole motor stack have different thickness(25mm,30mm,35mm,40mm).   Among them,  shade pole motor model SP6325 & SP6330 is widely used.





(2)Second direction of air compressor pump

sigle phase shade pole motor air compressor nebulizer motor



 (3)Third direction of air compressor pump







Packing and shipping details of nebulizer motor



Mass production use standard export carton,  LCL shipment will add pallet.

Each carton three layers, each layer 6pcs, total 18pcs





Payment terms: 30% deposit by T/T and the rest 70% balance by T/T also before shipping





Shade pole motor stator and rotor produced by ourself

Uses pure copper wire

Three type different size cooling fan for choose

Prompt delivery: within 25 days after get the deposit



sigle phase shade pole motor air compressor nebulizer motor


Quick delivery and orther service



Delivery lead time: 20-25 days after got deposit

Sample policy: We provide free compressor nebulizer shade pole motor sample for test if the express cost pay by client.

Warrenty: one year warrenty.




FAQ

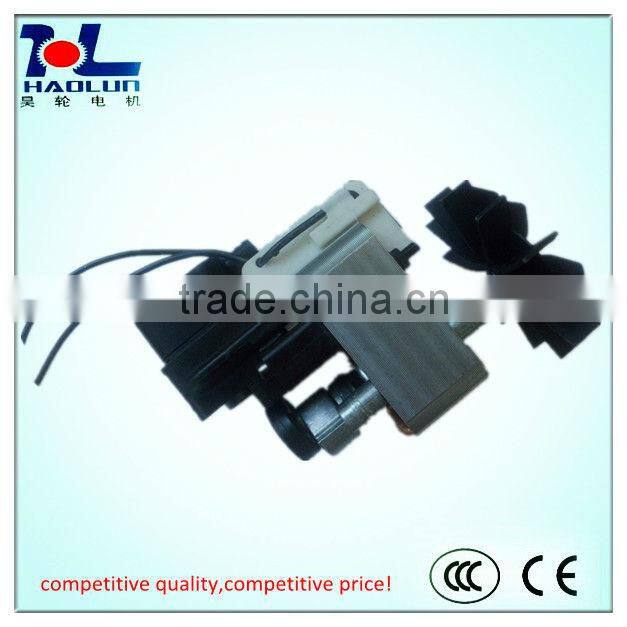

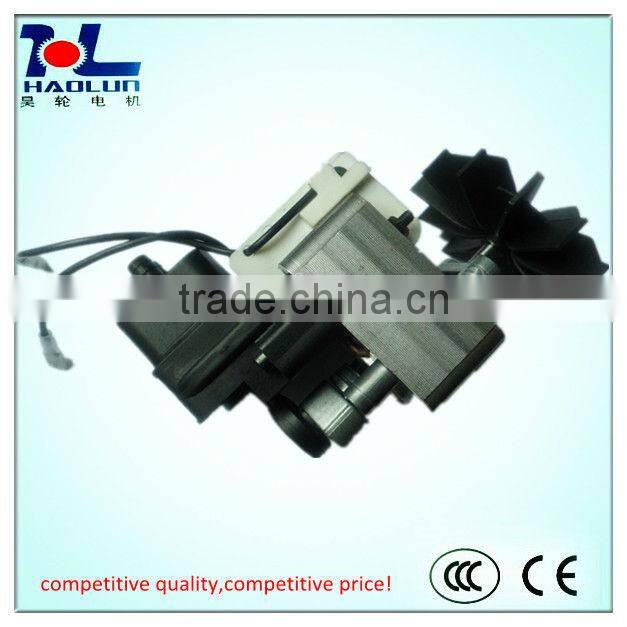

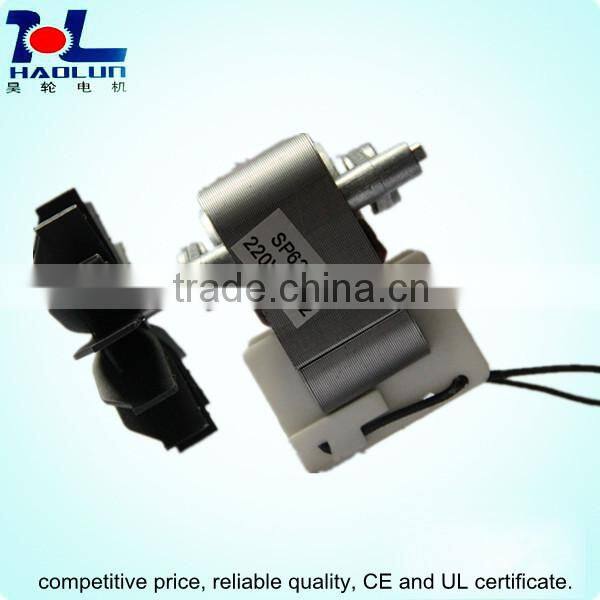

 Detail pictures of air compressor nebulizer shade pole motor:

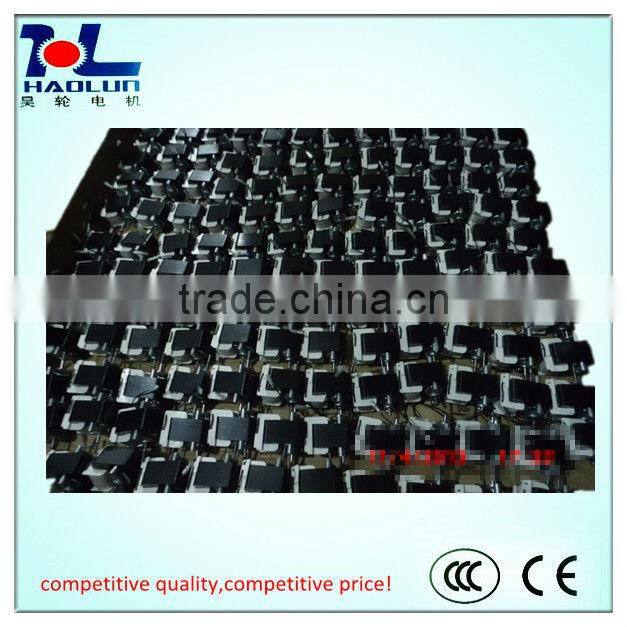

 30mm air compressor nebulizer shade pole motor on producing

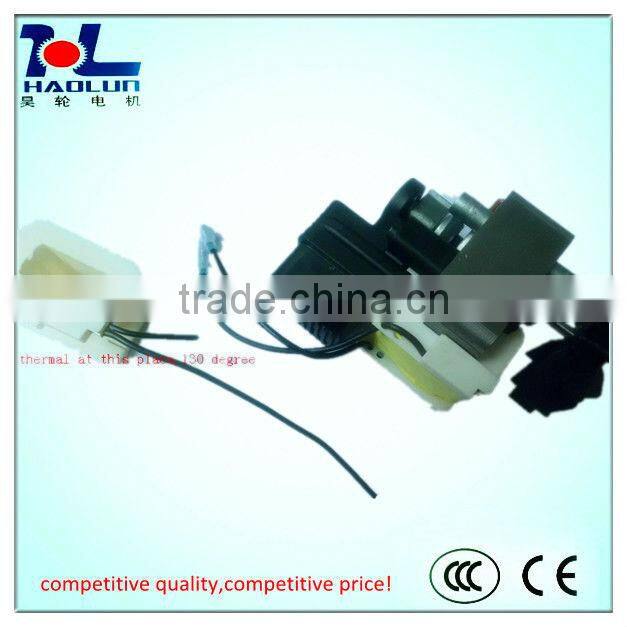

 Air compressor nebulizer shade pole motor motor use 130°c class F thermal protector

The inlet and outlet pipe of the pump with match with the shade pole motor have more than direction.

The shade pole motor shaft length also can customized
