1325 Laser Cutting Bed
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
CO2
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tinajin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cloth Cutting Machine With 80w Laser TubeNegotiableMOQ: 1 Set -
China Bodor Cloth Laser Engraving MachineNegotiableMOQ: 1 Set
-
CO2 Used Laser Engraver for SaleNegotiableMOQ: 1 Set
-
Laser Cutting Bed-double Head Laser OptionalNegotiableMOQ: 1 Set
-
Laser Cutting Bed for All Kinds of Hard MaterialsNegotiableMOQ: 1 Set
Condition
New
Laser Type
CO2
Applicable Material
Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Cutting Area
1300*2500mm
Cutting Speed
0-30000mm/min
CNC or Not
Yes
Cooling Mode
Water Cooling
Control Software
RD Control System
Graphic Format Supported
AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Place of Origin
Shandong, China
Brand Name
Bodor
Model Number
BCL-B
Certification
CE, SGS, Other, CE, SGS, FDA,TUV
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Computer control easy for complex design2. High accuracy and fast speed
3. CE,TUV,SGS,FDA certificated
Fully open blade working platform, machine tool and stable working chassis, high accuracy stepper motor driver, optional automatic transmission system, make your work more stable and accurate.
Main Features
1. Working table: Open blade with special treated material. Never fray and easy operation, suitable for all kinds of hard materials.
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
4. High efficiency tube with stable laser path, life time around 10000 hours.
2. Steady chassis: Stability and precision during high speed work.
3. Moving system adopts Taiwan HIWIN linear guide and precision gear, matched up with advanced DSP-controlled 3-phase stepper motor to ensure the working accuracy.
4. High efficiency tube with stable laser path, life time around 10000 hours.
Technical Parameter
| Model | BCL1325B | BCL1625B | BCL 1830B | BCL 2030B | BCL 2060B | |
| Working Area | 1300*2500mm | 1600*2500mm | 1800*3000mm | 2000*3000mm | 2000*6000mm | |
| Laser Power | 60w/80w/100w/130w/150w | |||||
| Laser Type | Sealed Co2 Laser Tube,10.6μm | |||||
| Cooling Type | Water Cooling | |||||
| Cutting Speed | 0—30000mm/min | |||||
| Laser Output Control | 0—100% Software Setting | |||||
| Smallest Character Engraving | 2.0*2.0mm1.0*1.0mm / English 1.0mm*1.0mm | |||||
| Highest Scanning Precision | 4000DPI | |||||
| Locating Precision | ≤+0.01mm | |||||
| Controlling Software | RD Control System | |||||
| Graphic Format Supported | DST PLT BMP DXF DWG AI LAS,etc | |||||
| Compatible Software | TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,All Type of AUTOCAD Sofeware in Cloth | |||||
| Color Separation | Yes | |||||
| Drive System | High-precision 3-phase Stepper Motor | |||||
| Auxiliary Equipments | Exhaust Fan and Air Exhaust Pipe | |||||
| Power Supply | AC110V/220V+10%,50HZ/60HZ | |||||
| Option | Up&Down Table(Length:500mm),Honeycomb Worktable,Rotary Device Red Dot Position System,Auto-focus Device | |||||
Applicable industry:
Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

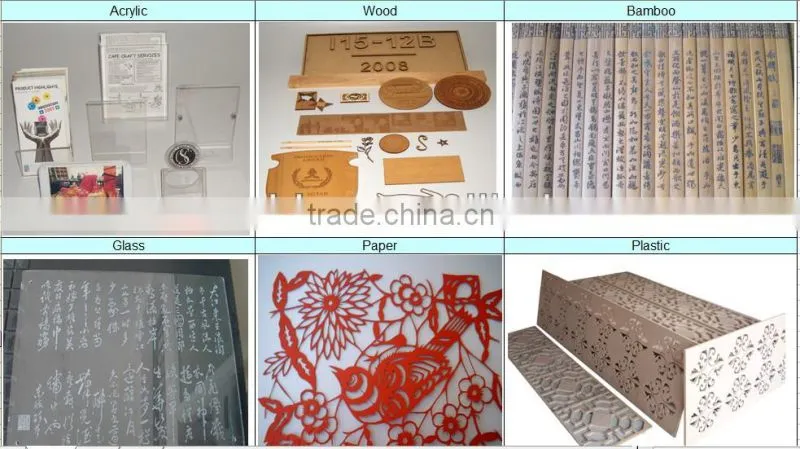

Applicable Materials:
materials such as acryl, wood planks(light planks,candlenut wood),bamboo ware, double color board, paper, leather, shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.

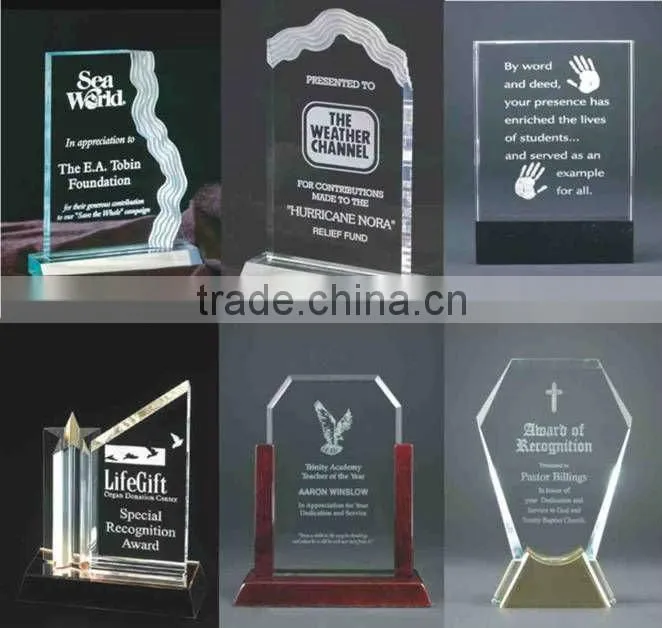

Samples:
