Online wholesale shop light, efficient and multifunction small water well drilling machine
Structure |
Parameters |
Diameter of Hole |
Φ168-300 mm |
Drilling Depth |
300 m |
Air Consumption |
16-40 m3/min |
Working Pressure |
1.05-2.46 Mpa |
Ground Clearance |
280 mm |
Support Cylinder Stroke |
460 mm |
Feed Cylinder Stroke |
1750 mm |
Feed Power |
50000 N |
Lift Power |
150000 N |
Speed of Rotator |
Low:43/52/69rpm;Quick: 85/102/125 rpm |
Rotation Torque |
Low: 8000N.M; Quick:4000N.M |
Climb Capacity |
25o |
Traveling Speed |
0-2.5 km/h |
Weight |
9500 kg |
Dimension |
5200×2300×3200 mm(L*W*H) |

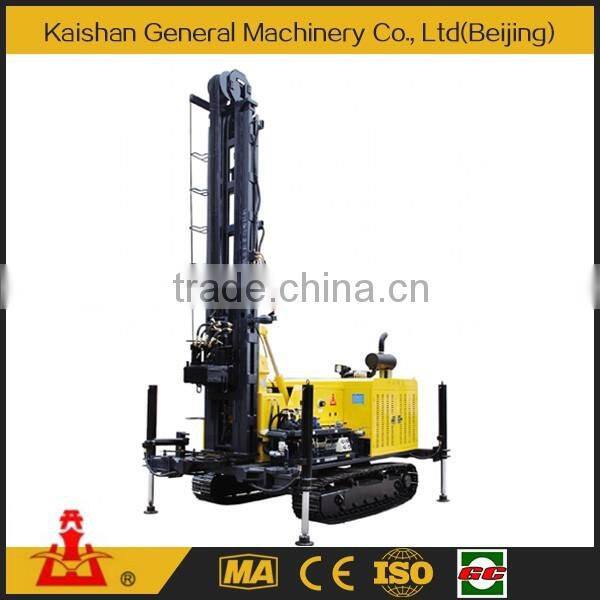

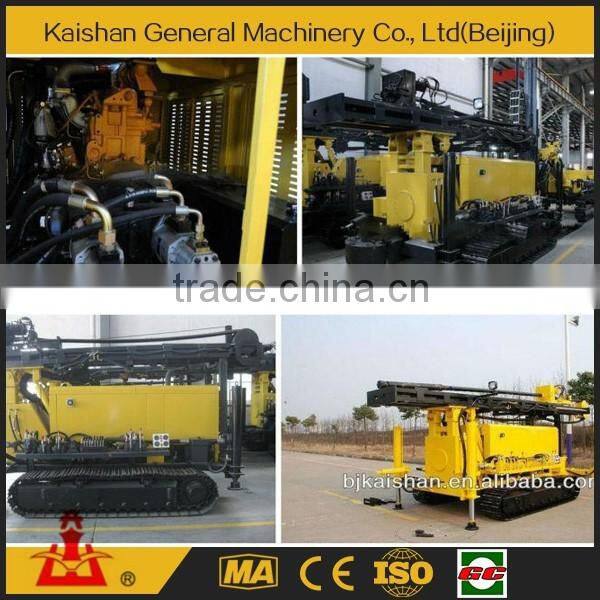

KW30 Water Well Drill Rig is a light, efficient and multifunction drilling plants.The power system is provided by the air compressor.The drill rig can drill holes in various stratum and the diameter of the hole reaches 300mm.It uses the late-model hydraulics,large torque hydraulic motor and cylinder system powered by well-known multi-cylinder engine.The drill rig adopts crawler chassis and cross-country performance is very well.

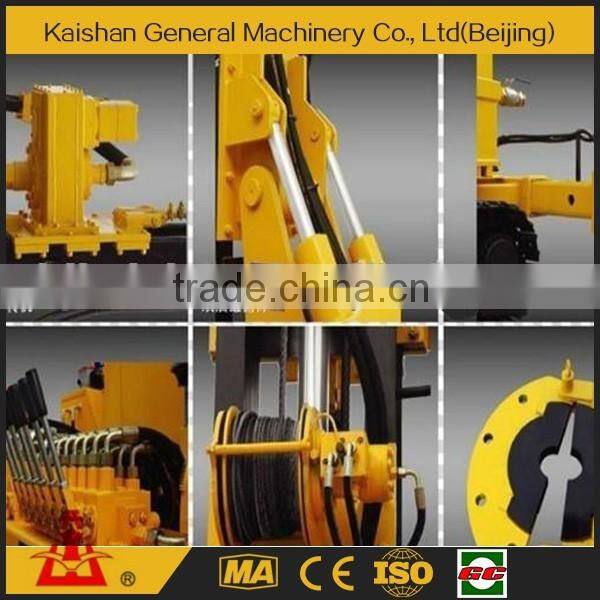

Features:
1.Double-moter powerful rotating system.
2.High Torque Large Aperture
3.Centralized operating system
4.Double oil-cylinder push system
5.Safe & stable traveling system

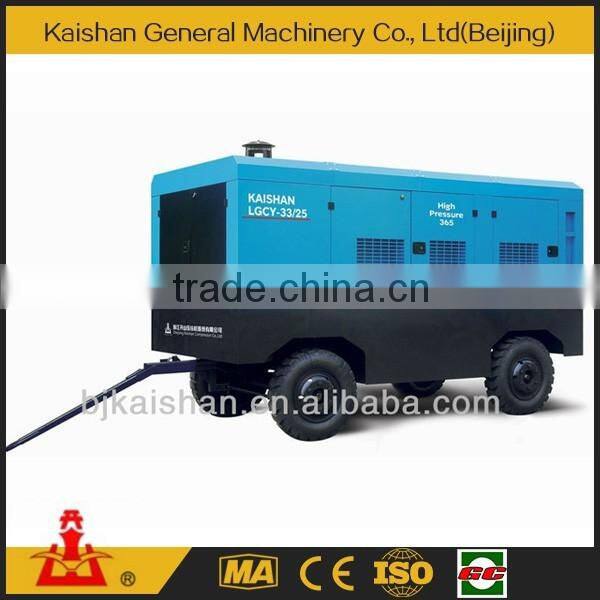

Specification of LGCY-33/25 Screw Air Compressor:
Structure |
Parameters |
Complete Machine | |
Model |
LGCY-33/25 |
Capacity |
33(m³/min) |
Working Pressure |
2.5(Mpa) |
Weight |
6800(kg) |
L×W×T |
4700×2100×2850(mm) |
Tyre Size × Number |
7.50-16×4 |
Diesel Engine | |
Diesel Manufacturer |
Yu Chai |
Type |
YC6K550L |
Model |
Vertical, line,Water-cooled |
Breathing Method |
Inter-cooling |
Bore × Stroke × Cylinder |
130×163×6 |
Rated Power |
550 (kw) |
Diesel Oil Capacity |
35(L) |
Tank Capacity |
600(L) |
Voltage |
24(L) |
Air Compressor | |
Compress Grade |
2 |
| KW water well drilling machine SPECIFICATION | ||||
| Model No | KW10 | KW20 | KW30 | |
| Dia.of hole | 115-254mm | 115-254mm | 168-300mm | |
| Drilling depth | 120m | 200m | 300m | |
| Working pressure | 10.5-24.6bar | 10.5-24.6bar | 1.05-2.46 | |
| Air consumption | 16-30m3/min | 16-30m3/min | 16-40m3/min | |
| Ground clearance | 245mm | 280mm | 280mm | |
| Support cylinder stroke | 460mm | 1000mm | 460mm | |
| Feed cylinder stroke | 1750mm | 2400mm | 1750mm | |
| Feed power | 30000N | 45000N | 50000N | |
| Lift power | 70KN | 95KN | 150KN | |
| Speed of rotator | 50-100rpm | 60-105rpm | 69-125rpm | |
| Rotation torque | 3200N·M | 4000N·M | 4800N·M | |
| Climb capacity | 25o | 25o | 25o | |
| Traveling speed | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | |
| Dimensions | 6000×2300×2500mm | 5100×2300×2850mm | 5200×2300×3200mm | |
| Weight | 6000KG | 8500KG | 9500KG | |
| Matched diesel Engine | ||||
| Engine model | YC4D08 Engine | YC6B125-K10 Engine | YC6B150Z-T21,Engine | |
| Power | 58KW/78HP | 92KW/122HP | 110KW/150HP | |
| Rotation speed | 2400rpm | 2200rpm | 2100rpm | |
| Drilling Components | ||||
| 1.Impact Hammer | DHD360 | DHD360 (DHD380) | SPM480 | |
| 2. Dia. Of rod | Φ76mm,Φ89mm | Φ89mm | Φ102mm | |
| 2.Length of Rod | 3m | 3m | 3m | |
| 3. Dia.of Bit | Φ115-254mm | Φ115-254mm | Φ254-300mm | |
| Recommend compressor | LGCY-21/20 | LGCY-26/20 | LGCY-33/25 | |
| Air delivery(m³/min) | 21 | 26 | 33 | |
| working pressure(Bar) | 20 | 20 | 25o | |
| diesel engine | cummins,6LTAA8.9-C325(239KW) | yuchai,YC6M395L-K20(288KW) | cummins,QSZ13-C550,550HP | |
Delivery terms:
1. Time of Shipment: about 15 days after receiving your advance payment.
2. Packing: seaworthy packing.
3. Loading Port: Ningbo, CHINA.
4. Terms of Payment: T/T 30% deposit and balance before shipment.
5.Validity of the quotation: 31 Dec, 2016
6. Quality Guarantee: One year from delivery date(quick-wear part except)
7. After-sale service: For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)

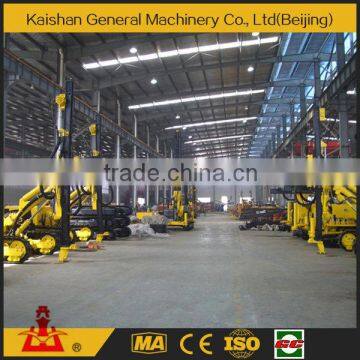

1.Our company is in Beijing and our factory is in Quzhou city Zhejiang province, which covers an area of 514,800 square meters with a total assets of one billion dollars. There are 6000 staffs including 1075 technicians.
2.We are the largest compressor and the main pneumatic tool manufacturer in China. In 2010 it produced and shipped 27,000 screw compressor units and 200,000 reciprocating compressor units.
3.KAISHAN compressor has a complete vertical integrated production line for compressor from the foundry plant, the air end plant, the pressure vessel plant, the sheet metal plant and the heat exchanger plant to the final unit and system assembly plant.
4.We are over 10 years professional manufacturer of air compressor and drill rig, good quality and competitive price which is guaranteed with CE,ISO9001,ISO14001, ASME, GC energy saving certificate.
