Hot Water Circulating Type Sterilization Pot

Hot Water Circulating Type Sterilization Pot photo-1
Hot Water Circulating Type Sterilization Pot photo-2

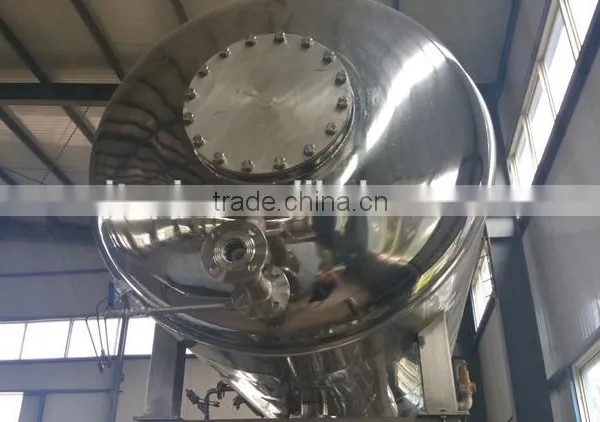

Hot Water Circulating Type Sterilization Pot photo-3
Hot Water Circulating Type Sterilization Pot photo-4

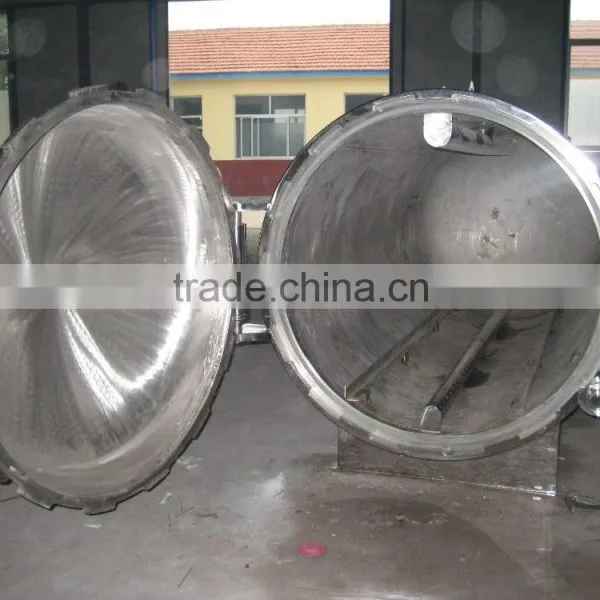

Hot Water Circulating Type Sterilization Pot photo-5

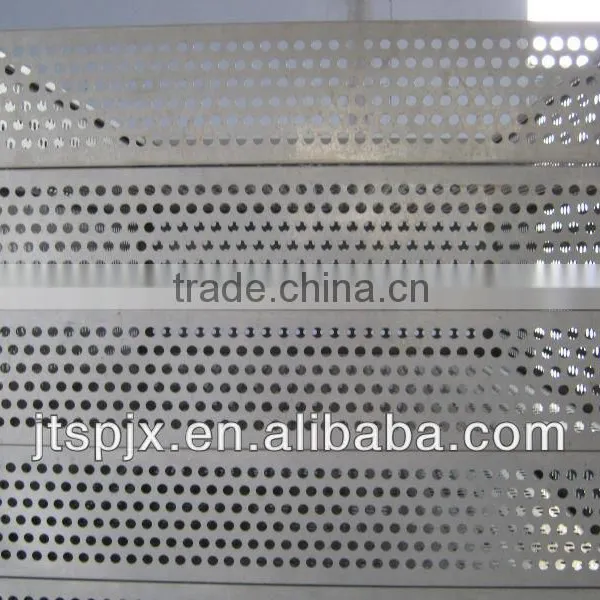

Hot Water Circulating Type Sterilization Pot photo-6
US$ 8,000 - 80,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINTAI
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name JINTAI

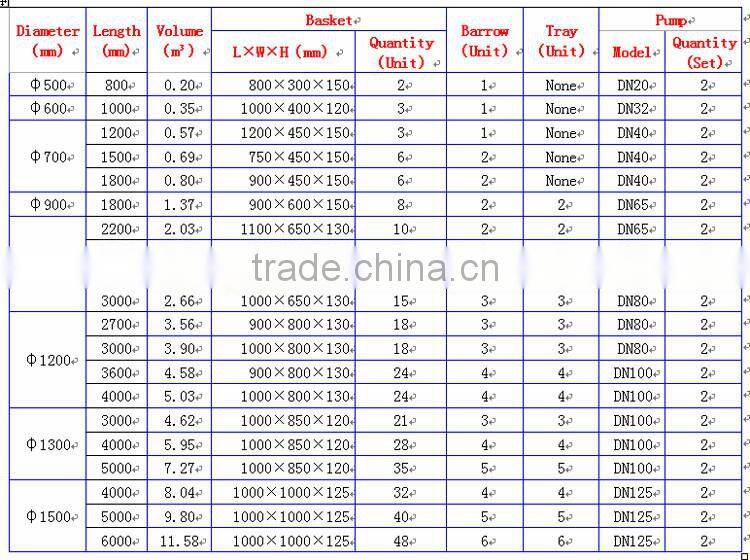

Model Number JTSC1200-3600
Usage Canned Food
Type Autoclave
Voltage 380/220V
Power(W) as per model
Weight as per model
Dimension(L*W*H) as per model
Certification CE ASME TUV
Warranty 1years
After-sales Service Provided Engineers available to service machinery overseas

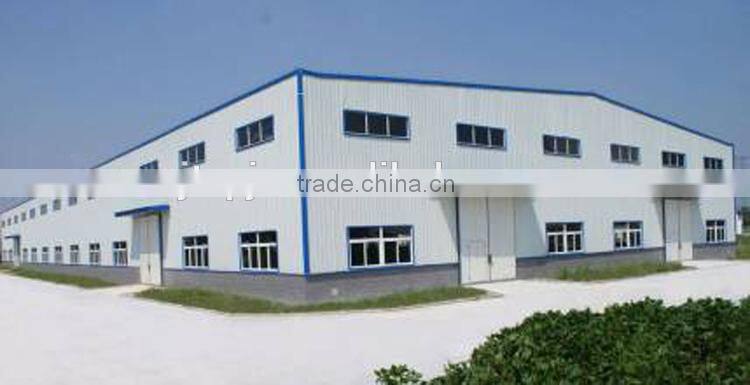

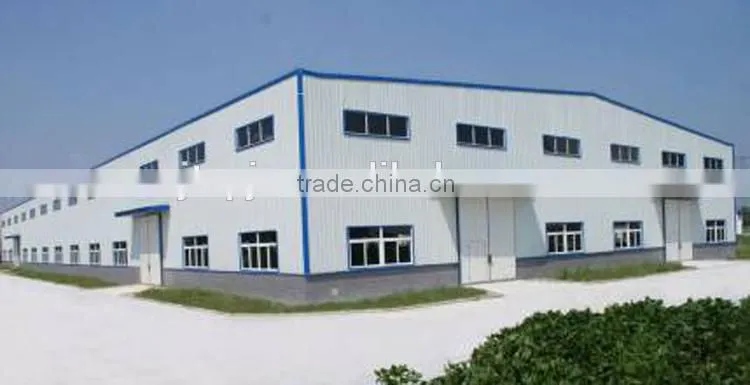

                                                                                 Company profile

         Zhucheng City Jintai Food Machinery Co., Ltd. - founded in 2008, is located in the city of Shandong Peninsula China. Company for the

natural person owned high-tech enterprises, currently has 260 employees, including senior engineer 17 people, engineers, and 32 people,

specializing in the production of pot sterilization (sterilization pot, kettle sterilization, sterilization kettle), sandwich pot, cooking pot,

all kinds of stirred tank and storage tank etc. food machinery, comply with the requirements of HACCP and food and Drug Administration (FDA),

Mainly sold to Russia, South Korea, Greece, the United States, India, Vietnam, Indonesia, Malaysia, Nigeria, Egypt, North Korea, Mongolia,

 Australia, the Philippines and other dozens of countries and regions, 2013 took the lead through the CE (PED, MD, LED). Successfully

exported to Switzerland and other European countries. "Details determine the quality, service to win customers" is the company's business

purposes, "only professional, to excellence" is the company's business philosophy.

        To do a good job of products, service society is the eternal pursuit of the company!

        Warmly welcome new and old customers at home and abroad to visit our company guidance!

hot water circulating type sterilization pot

hot water circulating type sterilization pot

 hot water circulating type sterilization pot

 hot water circulating type sterilization pot

hot water circulating type sterilization pot

  The inner rotary body welding assembly with machining center, a one-time molding, ensures that the rotating body in the rotating axis of a

 rotating body and the concentricity. The leakage problem of water vapor in the process of rotation is solved by using the three sealing device.

The supporting roller is made of tin bronze, stainless steel, synthetic steel and other materials, which prolongs the service life and solves the

defects of the bearing rotation. Material basket pressing system all adopt cylinder automatic sub pressing, the whole cylinder all adopt

stainless steel and other alloy production, solve the use of the process of the cylinder leakage caused by rust. The transmission system

adopts the automatic positioning system with the brake function, which can ensure that the rotating body is kept in the same position after

 the stop. Speed of rotation speed by frequency conversion, the user can adjust the rotational speed of the rotating body at any time according

 to the different viscosity of the product. Equipment and gear seat as one of production, solve the in use because of deceleration machine base

and the pot body deformation caused by the transport shaft concentricity change and found a series of problems in the process of. Using the

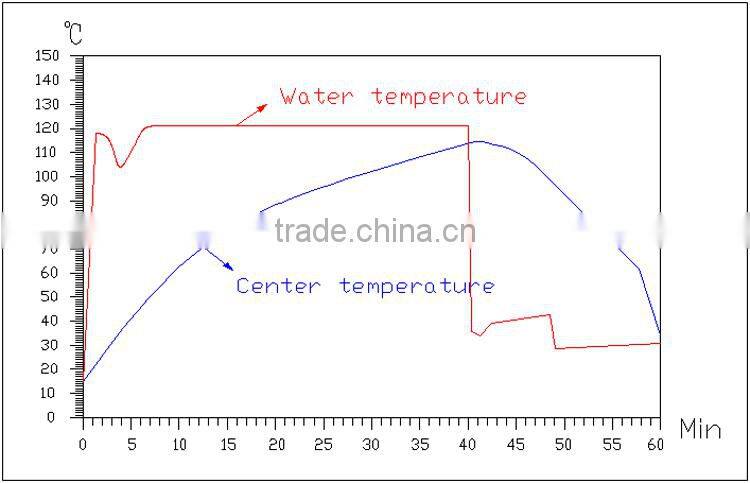

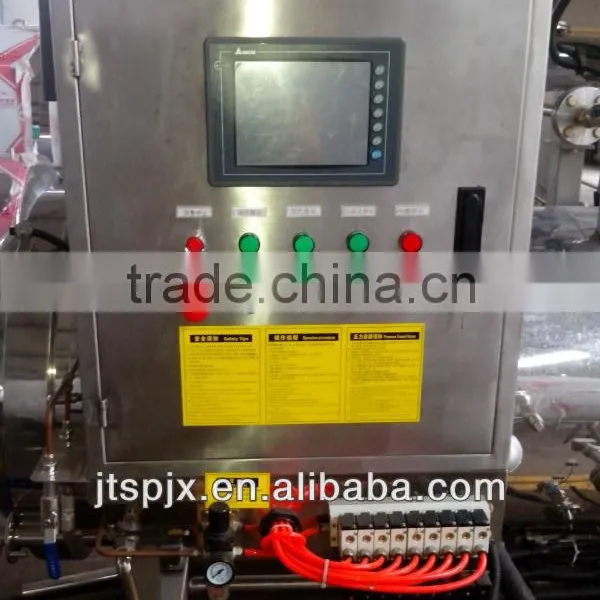

sterilization process of PLC automatic linear control, tank heat distribution of temperature control in + 0.3 DEG C, multi-stage heating, and

energy saving, and can store 30 sterilization formula.



 hot water circulating type sterilization pothot water circulating type sterilization pot
