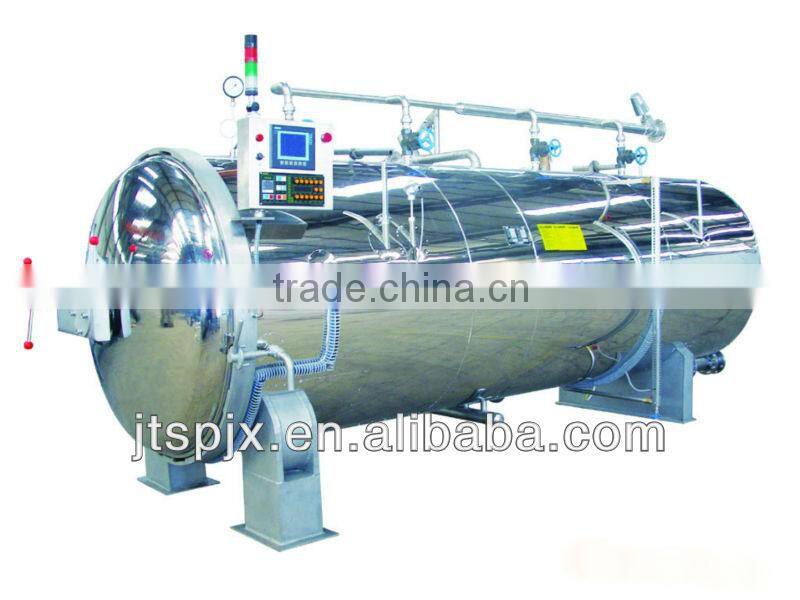

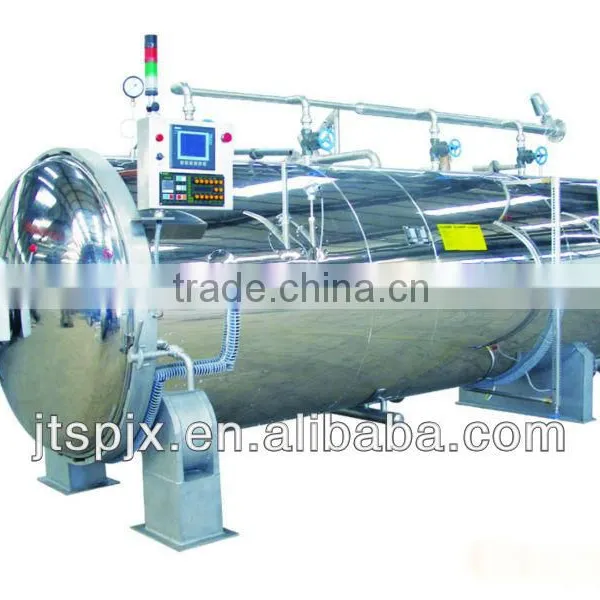

Stainless Steel Semi-autoclave Single Pot Sterilizing Steam Autoclave

Stainless Steel Semi-autoclave Single Pot Sterilizing Steam Autoclave thumbnail-1
Stainless Steel Semi-autoclave Single Pot Sterilizing Steam Autoclave photo-1
US$ 15,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JINTAI
Contact Supplier Request Quote Chat Now
Zhucheng Jintai Food Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name JINTAI
Model Number JT-QS
Usage Canned Food
Type Autoclave
Voltage adjustable

stainless steel semi-autoclave single pot  steam autoclave





application scope:



High-temperature sterilization of the Tinplate canned or Bottles canned





Product Features



1. Semi-automatic computer control the temperature, sterilization time, pressure protection, product cooling.





2. Energy saving and easy to operate.

3. It can use hot water cycle sterilization and steam sterilization.

4. It is suitable for vacuum package, cans, glass bottles, and plastic package, edible and other food.

5. Setting several sterilization processes according to different products.

6. Pure stationary steam-sterilization

7. Mechanical overpressure protection

8. Quick Opening Gate safety interlock protection

9.Inflatable silicone ring



Basic performance



1. Mechanical security chain

2. Mechanical overpressure protection

3.Gas Hammer silencers

4. Compulsory sterilization water flow

5.speed of Replacement water: <3 minutes>



Model:

diameter(mm)

length (mm)

volume(m³)

water pump



quantity

model

 body thickness

Sterilizer pot



φ500

800

0.20

2

DN20

4



φ600

1000

0.35

2

DN32

4



φ700

1200

0.57

2

DN40

4



1500

0.69

2

DN40

4



1800

0.80

2

DN40

4



φ900

1800

1.37

2

DN65

4



φ1000

2200

2.03

2

DN65

4



2400

2.18

2

DN80

4



2600

2.34

2

DN80

4



3000

2.66

2

DN80

4



φ1200

2700

3.56

2

DN80

5



3000

3.90

2

DN80

5



3600

4.58

2

DN100

5



4000

5.03

2

DN100

5



φ1300

3000

4.62

2

DN100

5



4000

5.95

2

DN100

5



5000

7.27

2

DN100

5



φ1500

4000

8.04

2

DN125

6



5000

9.80

2

DN125

6



6000

11.58

2

DN125

6





Design pressure

0.35 Mpa

Maximum working pressure

0.30 Mpa

The material of pot body

Sus304

Design temperature

147°C





stainless steel semi-autoclave single pot sterilizing steam autoclave
