Specifications
KT7 hydraulic integral drilling rig1.CE,ISO9001,ISO14001, ASME, GC energy saving
2.one yrs warranty
3.Compact structure
KT7 Integral Open Air Drill Rig | |
Rock Rigidity |
f=6-20 |
Dia. of Hole |
90-105 mm |
Drilling Depth |
30~40 m |
Working Pressure |
17 bar |
Air Consumption |
13 m3/min |
Rotation Speed |
0-120 rpm |
Torque |
1900 N•M |
Lift Power |
25 kN |
Ground Clearance |
380 mm |
Rated Power |
180 kw |
Diesel Engine |
YC6A |
Traveling Speed |
2.5 Km/h |
Gradeability |
30° |
Pivot Angle of Drill Boom |
Left: 60°, Right: 39° |
Lift Angle of Drill Boom |
Down:20°; Upward:42° |
Pivot Angle of Carriage |
Left: 35°, Right: 38° |
Lift Angle of Carriage |
-28°~ +42° |
Pitch Angle of Carriage |
129° |
Leveling Angle of Carriage |
Right: 4~89° |
Leveling Angle of Frame |
Down: 10°; Upward: 9° |
Dimension |
8000*2260*2800 mm |
Weight |
9500 KG |
Impactor |
KQG35A |
Propel Length |
3000 mm |
Compensation Length |
900 mm |
Drill Pipe |
Φ64×3000 mm |
Dusting System |
Hydraulic Cyclone Laminar |

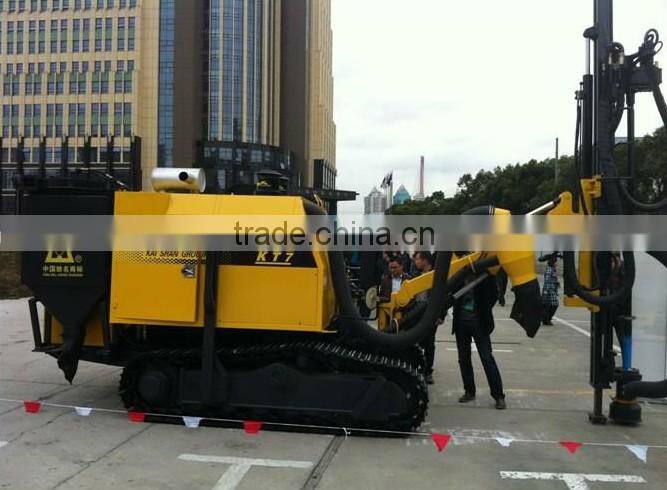

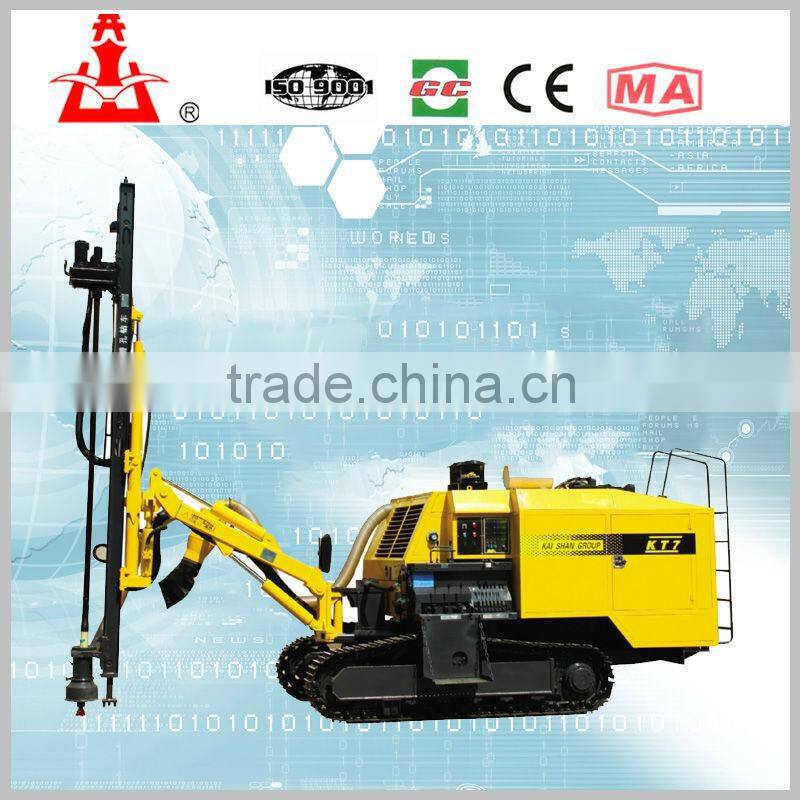

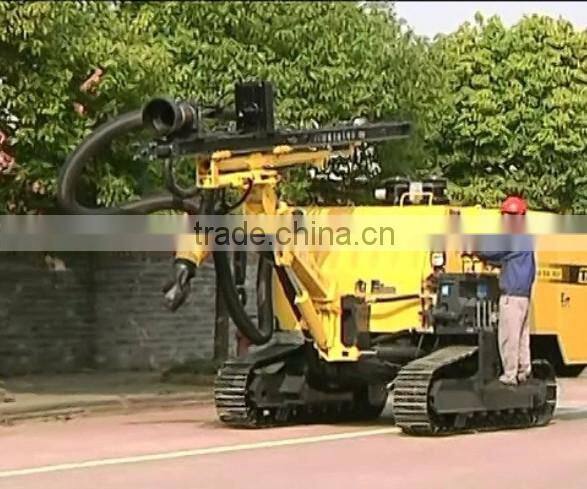

KT7 integral high pressure open air drill rig is an advanced drilling equipment, which integrated down the hole drilling system and screw air
compressor systems, and a sixcylinder diesel engine provided power for the two systems. Compact structure, good integrity and easy to
move. The drill rig equipped with screw air compressor head with core knowledge of the high pressure and single stage compression, and
applied of the world's leading Towne Yshaped line, large flowing (13m ³ / min), high pressure (1.7MPa), which provide strong impetus to high
pressure pneumatic impactor that enable drilling speed faster 20% -50% than the medium pressure drill rigs.
KT7 type integral high pressure open air drill rig is mainly used for rock drilling engineering and open mines.
1.Outside package:Standard export wooden cases
2.Inner package:Stretch film
We sincerely hope to establish long term cooperation relationship with you on the basis of mutual benefit,reciprocity and common development!
If you have any questions or comments pls let me know. Thank you and appreciate.
Contact :Cathy
Tel:8610-87825233
Fax:8610-87399234
Skype:kaishan02
Website: www.bjkaishan.en.china.cn
Quality Control
1.KAISHAN Group established Development Center in Jersey North America, and the top international compressor expert Dr. Tangyan designed the world-class SKY rotor ."Design in North American, Made in China."
2.Advanced equipment of kaishan screw air compressor
Trade show
Main products
1) Screw Type Air Compressors ( Air delivery:0.8m³/min -72m³/min;Work pressure: 8-13Bar;Power: 7.5Kw-400kw)
2) Diesel Driven Portable Screw Air Compressors (Air delivery:6m³/min-39m³/min ,Work pressure:7-35Bar,diesel engine:58kw-630kw )
3) Motor Powered Portable Screw Air Compressors( 350CFM – 910CFM)
4) Mining Piston air compressor(Air delivery:1.35m³/min -13m³/min;Work pressure:5-7Bar;Power: 11Kw-75kw)
5) Industrial piston air compressor(Air delivery:0.08m³/min -4.8m³/min;Work pressure:8-40Bar;Power: 0.75Kw-75kw)
6) Drill rig (Include Water well drill rig)
7) Rock Drill(YO18-Y19-YT23D-YT24-Y26-YT28)
Certificates
We have special service team which will offers you professional guidance:
1.Low maintenance cost, high efficiency.Minimizing downtime of the equipment.
2.Planned maintenance budget.Maintenance plans are designed according to the customers' different requirements.Providing dedicated and experienced maintenance technicians.
3.Our sales team will response for your question within 24 hours(holidays excluded)
4.Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5.Quality Control:
1)We have our own experienced QC
2)There will be strict inspection and testing for every order before shipping out.
6.After-sale Service:
1)Quality Guarantee:12 months from delivery date(quick-wear part except)
2)For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advanced payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig:8430310000
