Home > Products > Canned food sterilization equipment > Food sterilization pot sterilizing kettle
Food sterilization pot sterilizing kettle
- 20 Set / Sets per Month
- qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | jintai | Model Number: | JT900-1800 |
Type: | Meat Processing Machinery | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Food sterilization pot sterilizing kettle
1. Sterilization in short time
Utilize double-tank hot water circulation for sterilization. Heated the water in the hot water tank to the required temperature of sterilization in advance, the sterilization time can be reduced and work efficiency can be improved.
2. Energy effective
The working medium during sterilization is recyclable. It reduces the production cost by saving energy, time, labor and material resources.
3. Even exchange of the water flow, even temperature, no dead area
It utilizes the international advanced technology, hot water circulation and immersion for sterilization. In the process of sterilization, circulation water in the sterilization trough will be uninterruptedly shifted up and down, left and right. It ensures the heat distribution of any spot in the trough is even. It effectively puts an end to the phenomenon of dead area in the process of sterilization and makes the guarantee period of the product more stable and longer. The temperature in the sterilization tank stays stable in all stages of the sterilization, which ensures the qualification rate of F value.
4. Automatic system
The whole sterilization process is controlled by PLC. It is a one-time action without manual operation. It utilizes the chart plate and screen touch control. All time intervals are controlled by the simulate sensor and automatic valve. The digital exhibition of pressure and temperature makes it applicable to input any pre-programmed pressure and temperature models into the computer. The computer can hold 100 sterilizing formulae.
5. Simulate temperature control system where the setting of multi-stage heating system is available.
The sterilizing method by multi-stage heating can minimize the heat on food, which can keep its original flavor, taste, nutrition and color to the utmost and make every kind of food sterilized in its best condition. The accuracy of the sterilizing temperature is up to ±0.3 so as to avoid over boiling or incomplete sterilization.
6. Function of measuring F-value
Every retort produced by Jintai can be equipped with F-value measuring instrument. The F-value software can make the F-value calculation every 3 seconds. All sterilizing data including sterilizing conditions, F-value, time-temperature curve, time-pressure curve and so forth can be saved or printed after the processing of data processing software to serve the production management.

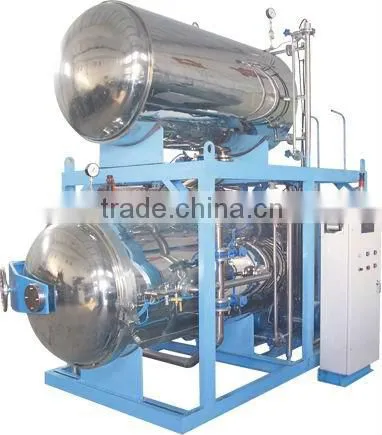

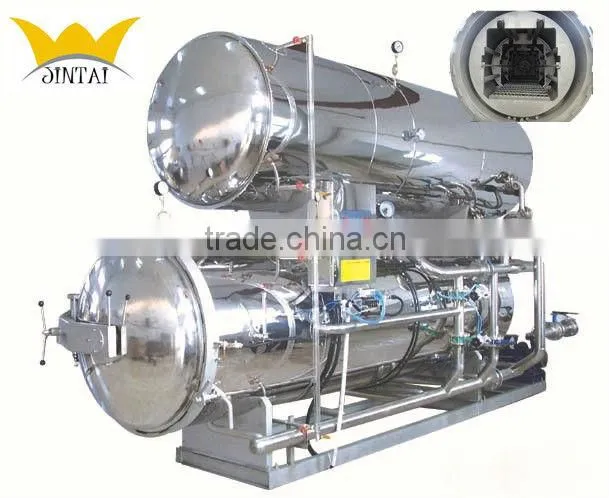

Product picture :
Ltd. was established in 20 08. Our company is aprofessional manufacturer of
sterilization pots, cooking pots, sandwich pans, and fry pans.
Our products are sold to over 20 domestic cities and provinces and India,
Vietnam, Nigeria, Egypt, North Korea, Mongolia, Australia,
the Philippines,Switzerland and dozens of other countries
and regions. Our products are conformed to FDA and HACCP and
we’ve got CE certificate.We’re specialized in researching and manufacturing high-temperature sterilization retort.The main products are various models
of computer automatic spray type high temperature and high pressure sterilization retort,
computer automatic double layer hot water high temperature and high pressure sterilization retort,
etc. Welcome to visit!
Model:
diameter(mm) | length (mm) | volume(m³) | Body Thickness (mm) | water pump | |||
model | quantity | ||||||
Sterilizer pot | hot water pot | ||||||
φ900 | 1800 | 1.37 | 4 | 4 | DN65 | 3 | |
φ1000 | 2200 | 2.03 | 4 | 4 | DN65 | 3 | |
2400 | 2.18 | 4 | 4 | DN80 | 3 | ||
2600 | 2.34 | 4 | 4 | DN80 | 3 | ||
3000 | 2.66 | 4 | 4 | DN80 | 3 | ||
φ1200 | 2700 | 3.56 | 5 | 5 | DN80 | 3 | |
3000 | 3.90 | 5 | 5 | DN80 | 3 | ||
3600 | 4.58 | 5 | 5 | DN100 | 3 | ||
4000 | 5.03 | 5 | 5 | DN100 | 3 | ||
φ1300 | 3000 | 4.62 | 5 | 5 | DN100 | 3 | |
4000 | 5.95 | 5 | 5 | DN100 | 3 | ||
5000 | 7.27 | 5 | 5 | DN100 | 3 | ||
φ1500 | 4000 | 8.04 | 6 | 6 | DN125 | 3 | |
5000 | 9.80 | 6 | 6 | DN125 | 3 | ||
6000 | 11.58 | 6 | 6 | DN125 | 3 |
Design pressure | 0.35 Mpa |
Maximum working pressure | 0.30 Mpa |
The material of pot body | Sus304 |
Design temperature | 147°C |
