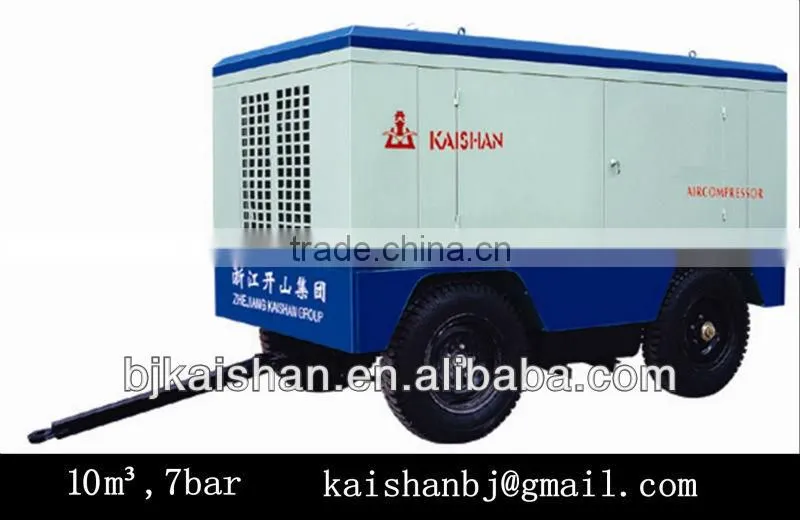

Help CenterCVFY-10/7 Mobile Diesel Engine Piston Air Compressor for Sale
Related Products
-
CVFY-10/7 Mobile Diesel Engine Piston Air Compressor for MiningUS$ 1 - 2MOQ: 1 Set -
CVFY-10/7 Portable Diesel Engine Piston Air Compressor for MiningUS$ 1 - 2MOQ: 1 Set
-
CVFY-10/7 ,10m3,7bar,portable Diesel Engine Piston Air Compressor for MiningUS$ 1 - 2MOQ: 1 Set
-
VF-9/7 ,55kw,7bar,electric Piston Air Compressor for MiningUS$ 1 - 2MOQ: 1 Set
-
VFY-9/7 ,55kw,7bar,electric Piston Air Compressor for MiningUS$ 1 - 2MOQ: 1 Set
Specifications
15 days delivery timemining safe compressor with two jack hammer
Manufacturer
Third party inspection welcome
high efficent
mining safe series piston air compressor
1,Valve plate and spring strip:made of special steel from Sweden and with special treatment, high special and reliable.
2,Piston ring: special design;integral casting;excellent flexibility;lowest lubricating oil consumption.
3,Cylinder: made of boron cast iron;wear resistant;special suitable for dusty condition.
4,Cylinder cover: extrusion process adopted;streamlined external appearance; good heat emission performance.
5,Crankshaft:made from ductile cast iron;rare magnesium ally after heat treatment and surface quenching;excellent performance.
6,Simple structure,light weight,easy to move.
7,Easy operating and maintenance.8,Energy saving, Low cost.
brand |
kaishan |
name |
CVFY-10/7 portable diesel engine piston air compressor |
model |
CVFY-10/7 |
Air delivery(m³/min) |
10 |
Working pressure(Mpa) |
0.7 |
Cylinder(Dia*Qty) |
260*2/160*2 |
Diesel engine(Kw) |
70 |
Air tank(L) |
200 |
weight(kg) |
2700 |
Overall size(L*W*H)(mm) |
4000×2000×2700 |
Mining and engineering with parameters of piston type air compressor | ||||
Model |
Matched engine(kW) |
Air delivery(m3/min) |
Working pressure (Mpa) |
Overall size(L×W×H)mm |
VF-7/7 |
40 |
7 |
0.7 |
2100×1100×1110 |
CVF7/7 |
YC4108 |
7 |
0.7 |
2760×1200×1460 |
CVF7/7 |
QC4110 |
7 |
0.7 |
2760×1200×1460 |
VFY-7/7 |
40 |
7 |
0.7 |
2830×1500×1890 |
CVFY-7/7 |
YC4108 |
7 |
0.7 |
2830×1300×1890 |
CVFY-7/7 |
QC4110 |
7 |
0.7 |
2830×1300×1890 |
VF-9/7 |
55 |
9 |
0.7 |
2460×1200×1220 |
VFY-9/7 |
55 |
9 |
0.7 |
2830×1500×1900 |
VF-10/7 |
63 |
10 |
0.7 |
2460×1200×1220 |
VFY-10/7 |
63 |
10 |
0.7 |
2830×1500×1900 |
CVF-10/7 |
YC4108ZG |
10 |
0.7 |
3200×1350×1650 |
CVF-10/7 |
QC4112 |
10 |
0.7 |
3200×1350×1650 |
CVFY-10/7 |
YC4108ZG |
10 |
0.7 |
3200×1550×2230 |
CVFY-10/7 |
QC4112 |
10 |
0.7 |
3200×1550×2230 |
VF-13/7 |
75 |
13 |
0.7 |
2460×1200×1220 |
VFY-13/7 |
75 |
13 |
0.7 |
2830×1500×1900 |
CVF-13/7 |
YC6108ZG |
13 |
0.7 |
3300×1350×1470 |
» Consumables parts<<
we supply compressor all spare parts timely with competitive price ,if you need any sapre parts pls let us know the compressor MODEL first,so that we supply right model spare parts for you. contact skype:air-compressr1
compressor oil
air filter
oil filter
oil content
» Usage<<
cooperation terms:
1)Delivery time :within 30days after receiving your advance payment
2)Payment terms:T/T 50% in advance ,the balance should be paid within 5days against the B/L date
3)Package:1,plywood cases suitable for sea transportation 2,Fumigation-free wooden cases 3,simple package
4)Air compressor HS CODE:8414809090
5)Quality Guarantee:12 months from delivery date(quick-wear part except)
6)After-sale service:For warranty repair/ replacement, user should send defective items back then supplier
re-supply the same to user whin assurance period for free(user in charge of freight fee)
