Home > Industrial Equipment & Components > Compressor > Compressor Unit > Mining Safe CVFY-13/7 Pistonbelt Driven Air Compressor

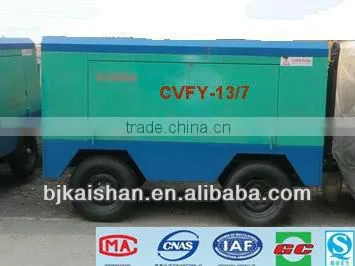

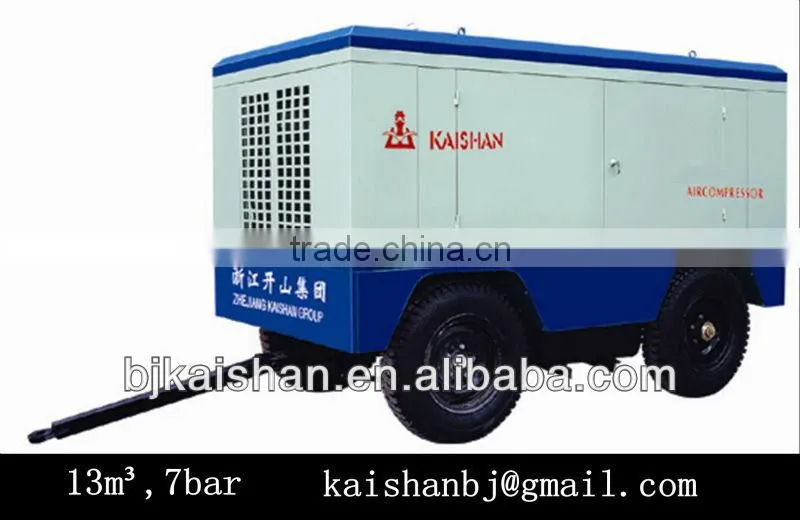

Mining Safe CVFY-13/7 Pistonbelt Driven Air Compressor

Name: Mining Safe CVFY-13/7 Pistonbelt Driven Air Compressor
Brand: kaishan
SKU: 101490045
Availability: InStock

Mining Safe CVFY-13/7 Pistonbelt Driven Air Compressor thumbnail-1

Mining Safe CVFY-13/7 Pistonbelt Driven Air Compressor photo-1

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Piston

Configuration:

Portable

Contact Supplier Request Quote Chat Now

Kaishan General Machinery Co., Ltd. (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo tianjin any port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Piston

Configuration Portable

Power Source Diesel

Lubrication Style Lubricated

Mute Yes

Place of Origin Beijing, China

Brand Name kaishan

Model Number CVFY-13/7

Voltage 220V

Dimension(L*W*H) 3500*1700*2100mm

Weight 3100kg

Certification CE,ASME,ENERGY SAVING CERTIFICATE,ISO9001.ISO14001

Warranty 13 months

After-sales Service Provided Overseas third-party support available

Specifications

15 days delivery time

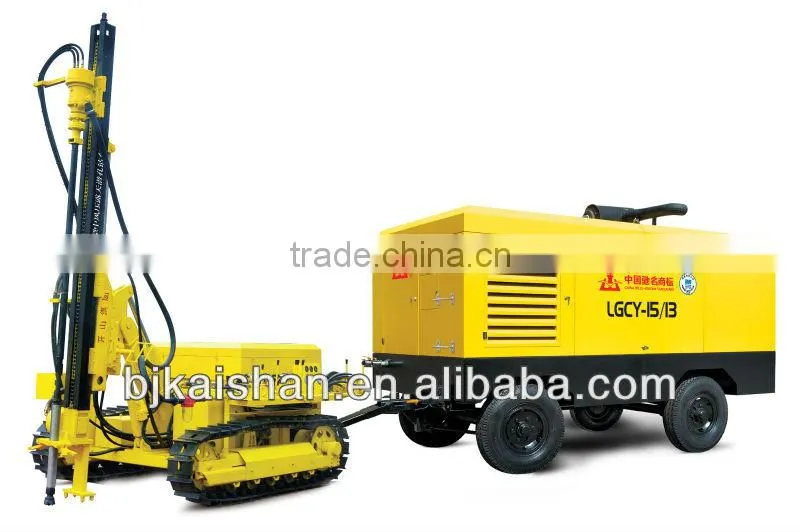

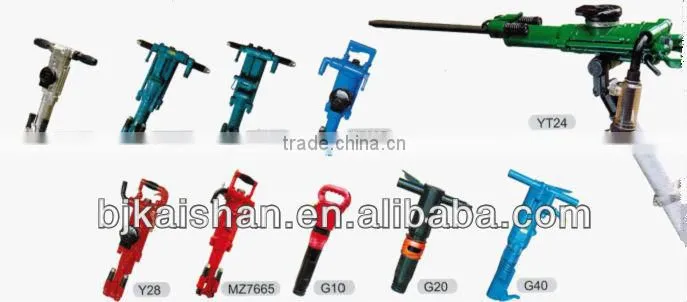

mining safe compressor with two jack hammer
Manufacturer
Third party inspection welcome
high efficent

mining safe series piston air compressor

1,Valve plate and spring strip:made of special steel from Sweden and with special treatment, high special and reliable.

2,Piston ring: special design;integral casting;excellent flexibility;lowest lubricating oil consumption.

3,Cylinder: made of boron cast iron;wear resistant;special suitable for dusty condition.

4,Cylinder cover: extrusion process adopted;streamlined external appearance; good heat emission performance.

5,Crankshaft:made from ductile cast iron;rare magnesium ally after heat treatment and surface quenching;excellent performance.

6,Simple structure,light weight,easy to move.

7,Easy operating and maintenance.8,Energy saving, Low cost.

brand	kaishan
name	CVFY-13/7 portable diesel engine piston air compressor
model	CVFY-13/7
Air delivery(m³/min)	13
Working pressure(Mpa)	0.7
Cylinder(Dia*Qty)	2602/1602
Diesel engine(Kw)	75
Air tank(L)	350
weight(kg)	3100
Overall size(LWH)(mm)	3500×1700×2100

Mining and engineering with parameters of piston type air compressor
Model	Matched engine(kW)	Air delivery(m3/min)	Working pressure (Mpa)	Overall size(L×W×H)mm

VF-7/7	40	7	0.7	2100×1100×1110
CVF7/7	YC4108	7	0.7	2760×1200×1460
CVF7/7	QC4110	7	0.7	2760×1200×1460
VFY-7/7	40	7	0.7	2830×1500×1890
CVFY-7/7	YC4108	7	0.7	2830×1300×1890
CVFY-7/7	QC4110	7	0.7	2830×1300×1890
VF-9/7	55	9	0.7	2460×1200×1220
VFY-9/7	55	9	0.7	2830×1500×1900
VF-10/7	63	10	0.7	2460×1200×1220
VFY-10/7	63	10	0.7	2830×1500×1900
CVF-10/7	YC4108ZG	10	0.7	3200×1350×1650
CVF-10/7	QC4112	10	0.7	3200×1350×1650
CVFY-10/7	YC4108ZG	10	0.7	3200×1550×2230
CVFY-10/7	QC4112	10	0.7	3200×1550×2230
VF-13/7	75	13	0.7	2460×1200×1220
VFY-13/7	75	13	0.7	2830×1500×1900
CVF-13/7	YC6108ZG	13	0.7	3300×1350×1470

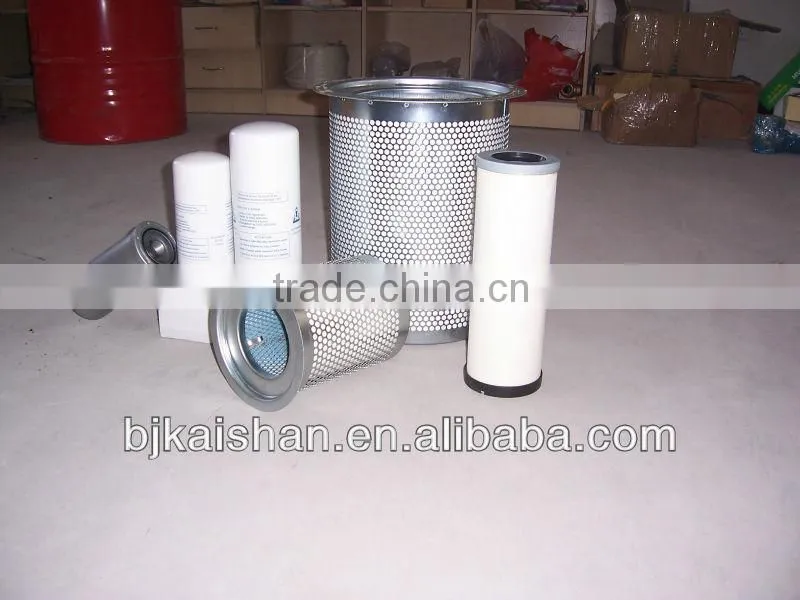

» Consumables parts<<

we supply compressor all spare parts timely with competitive price ,if you need any sapre parts pls let us know the compressor MODEL first,so that we supply right model spare parts for you. contact skype:air-compressr1

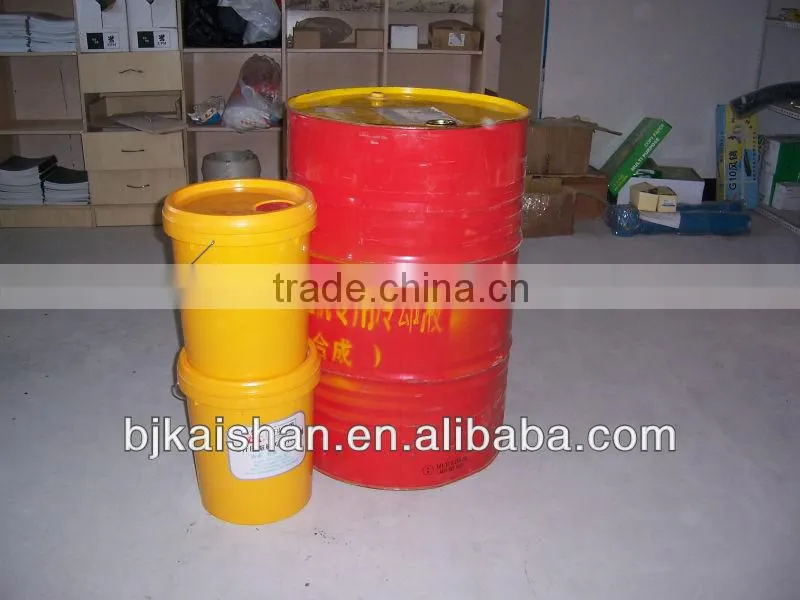

compressor oil

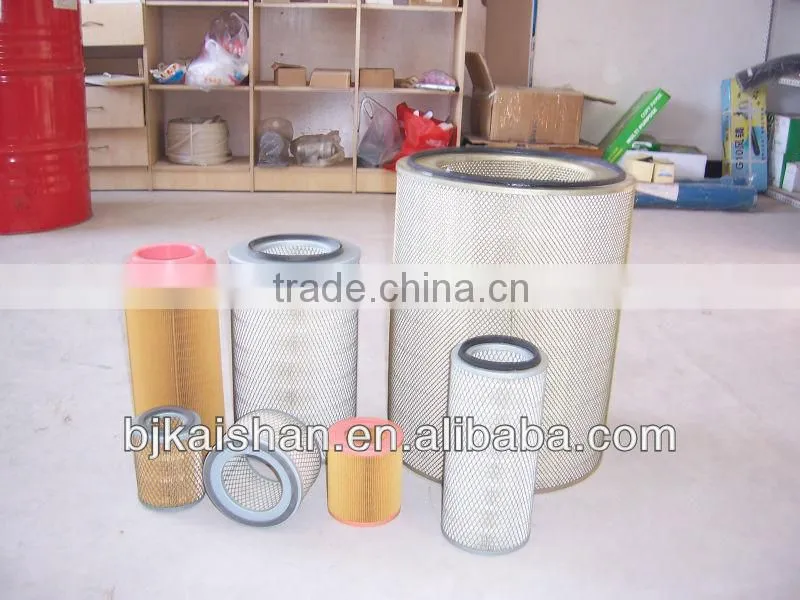

air filter

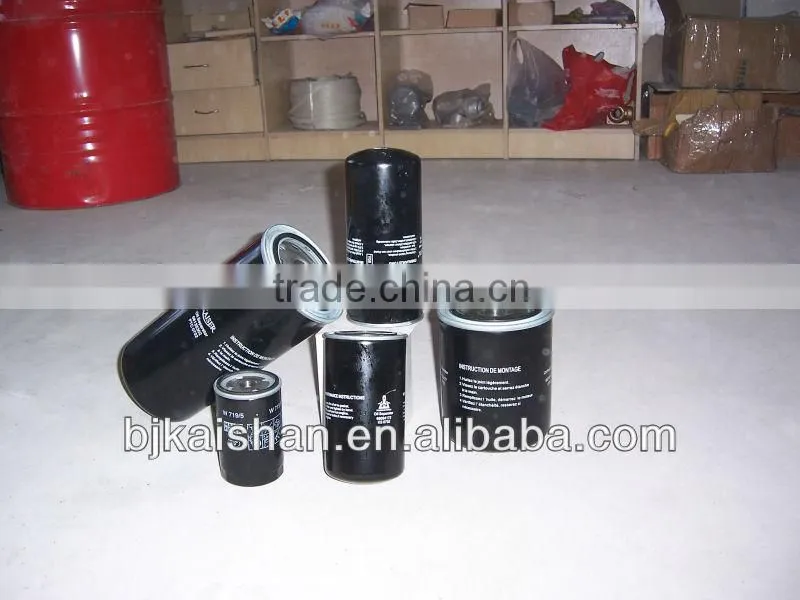

oil filter

oil content

» Usage<<

cooperation terms:

1)Delivery time :within 30days after receiving your advance payment

2)Payment terms:T/T 50% in advance ,the balance should be paid within 5days against the B/L date

3)Package:1,plywood cases suitable for sea transportation 2,Fumigation-free wooden cases 3,simple package

4)Air compressor HS CODE:8414809090

5)Quality Guarantee:12 months from delivery date(quick-wear part except)

6)After-sale service:For warranty repair/ replacement, user should send defective items back then supplier
re-supply the same to user whin assurance period for free(user in charge of freight fee)
