Specifications
electric screw air compressor unit1.Economical operation cost
2.Superior electric operation system

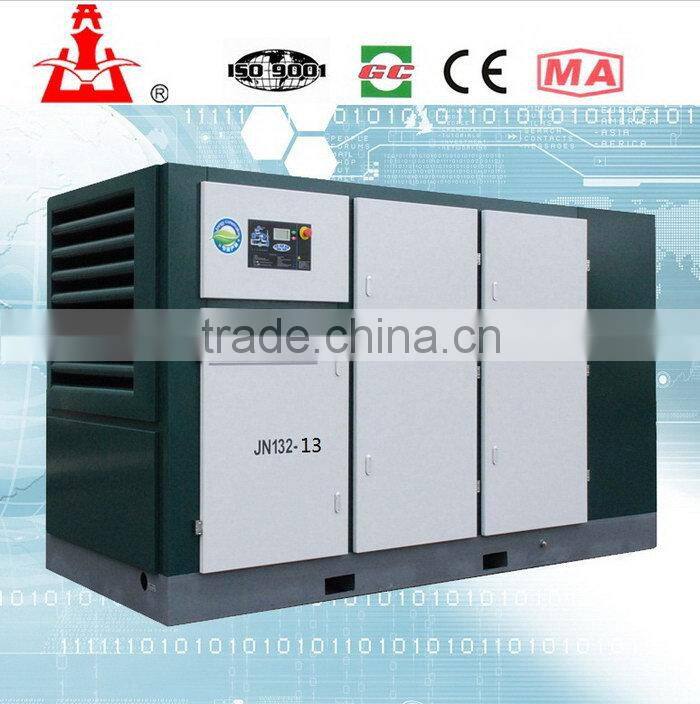

Low pressure Energy saving electric motor screw air compressor 132kw JN132-13
| Brand | Kaishan |
| Name | JN energy saving screw air compressor |
| Model | JN132-13 |
| Air delivery(m³/min) | 18.47 |
| Working pressure(Mpa) | 1.3 |
| Motor power(Kw) | 132 |
| Weight(kg) | 3300 |
| Overall size(L*W*H)(mm) | 3260x1620x1850 |

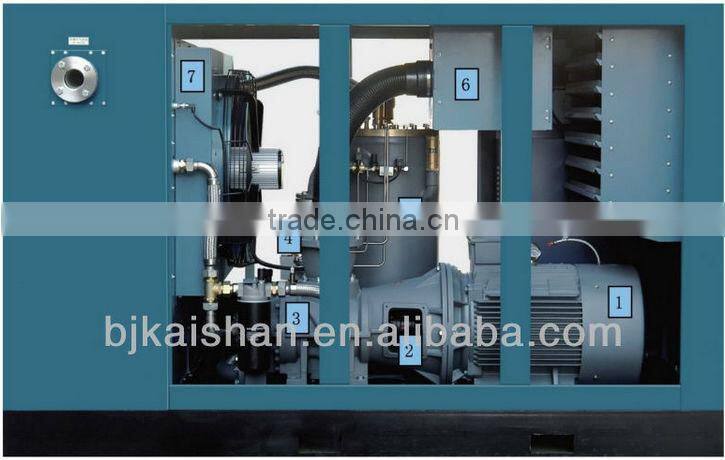

1.Drive Motor
IP54 rated,standard efficiency,IEC motors are used on every KAITAIN compressor. Over sized cast iron conduit boxes make
connections easy. The industry best motor grease is used to protect motor bearings, provide longer lubricant life, greater shear
stability and the best resistance to rust and corrosion.
2.Drive Coupling
The latest European designed spider couplings are used to guarantee the reliability and transmission efficiency and provide
vibration free power transmission for quiet and maintenance free operation.
3.Airend · Direct Driven --- No Gearing, No Belt!
Rotors are the key elements in producing compressed air efficiently.KAITAINairends utilize a male 5 lobe rotordriving rotorand a 6 lobe female rotordriven rotor).These state of the art Y profile rotors were introduced in the KAITAIN series compressor.
They have the following characteristics:
Larger rotors are designed to ensure the airends have slower rotorspeeds to deliver compressed air more efficiently than smaller airends
This translates into energy cost savings and a longer unit life.
The airends are guaranteed for 5 years.The rotor profile minimizes leakage andthe tighter clearances achieved through state of the art manufacturing processes results in higher
efficiency and improved lubrication.
4.Inlet Valve
The inlet valve is the major air flow control component in the compressor unit.It controls air flow to the compressor,either by opening,
throttling, or closing completely in response to pressure transducer controls.
5.Oil Separation System
The threestage separation system, the result of extensive research and development, supplies high quality compressed air.
The separation tank has two different separation stages: Centrifugal and gravity. The third stage separation is provided by
a high performance,long life coalescent separator filter. The efficiency of the first two stages assures the long life of
this coalescent filter. This system limits oil vapors carryover to below 3 ppm.
6.Kerry Air Filter
KAITAIN series compressors use the Kerry air filter which provides filtration to less than 3 microns Ultra Web nanofiber technology.
This technology ensures clean, unrestriced airflow for optimal compressor operation. It has 99.99% filtration efficiency and fully
complies with ISO 5011 standards. Strategic air inlet port positioning receives the coolest air as it enters the cabinet to ensure
superior volumetric efficiency.
7.Cooling System
The cooling efficency of a compressor is of vital importance to ensuring reliability and efficiency. The Kaitain Series compressors use an advanced design axial fan. The fan blade-end tip angle is designed to maximize the air volumetric flow rate cooling the high temperature lubricant oil and compressed air. A large surface area cooler with optimal fin design has been included to provide maximum cooling and longer operating life.
8.Oil Separation System Continue
The air purity meets ISO standard 8573-1:1991, Class 3 Oil Residues. Kaitain's oil separation system is monitored by an alarm system on the electronic control panel.
9.Kaitain Control System
The leadlag control system is designed to sequentially control up to sixteen compressors, assuring energy savings. Each compressor’s
operating infor mation such as: air outlet temperature, air velocity, loading and unloading status can be accessed through a main
computer station.
1.Outside package:Standard export wooden cases
2.Inner package:Stretch film
1.Our company is located in Beijing and our factory is located in Zhejiang province, which covers an area of 514,800 square meters with a total assets of one billion dollars.There are 6000 staffs including 1075 technicians.
2.We are the largest compressor and the main pneumatic tool manufacturer in China. In 2010 it produced and shipped 27,000 screw compressor units and 200,000 reciprocating compressor units.
3.KAISHAN compressor has a complete vertical integrated production line for compressor from the foundry plant, the airend plant, the pressure vessel plant, the sheet metal plant and the heat exchanger plant to the final unit and system assembly plant.
4.We are over 10 years professional manufacturer of air compressor and drill rig, good quality and competitive price which is guaranteed with CE,ISO9001,ISO14001, ASME, GC energy saving certificate.
We sincerely hope to establish long term cooperation relationship with you on the basis of mutual benefit,reciprocity and common development!
If you have any questions or comments pls let me know. Thank you and appreciate.
BR/William
Overseas Sales Department
KAISHAN GENERAL MACHINERY CO.,LTD(BEIJING)
Tel:8610-87825233
Fax:8610-87399234
Mob:+8618682092248
Skype:william11034
Website: www.bjkaishan.en.china.cn
Quality Control
1.KAISHAN Group established Development Center in Jersey North America, and the top international compressor expert Dr. Tangyan designed the world-class SKY rotor ."Design in North American, Made in China."

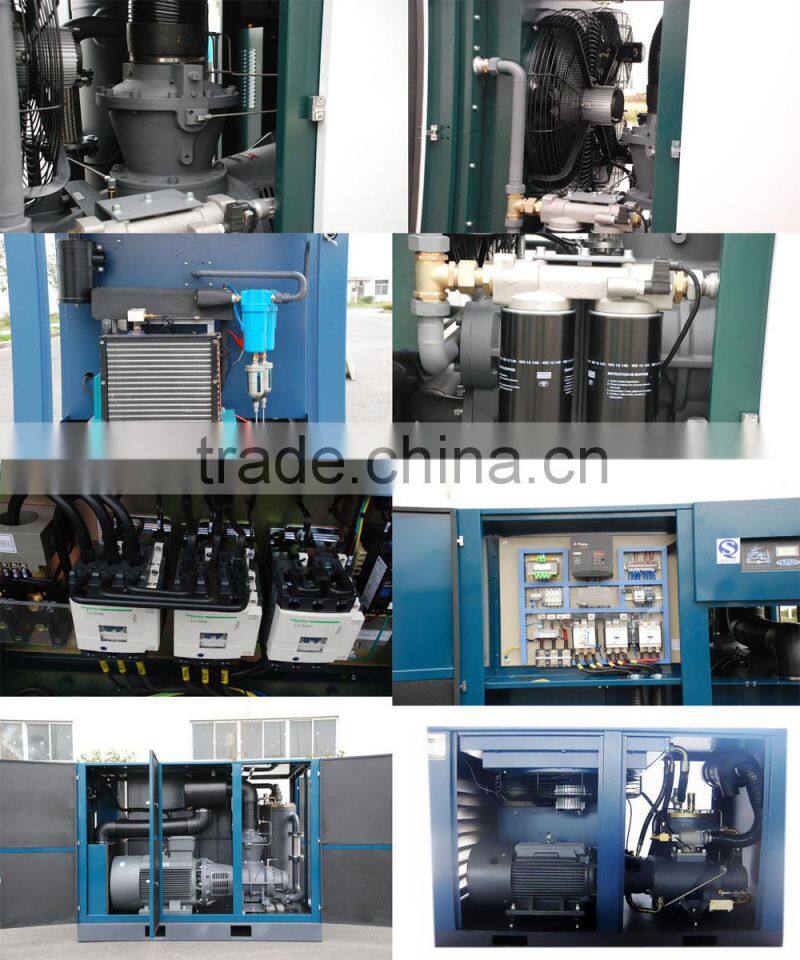

2.Advanced equipment of kaishan screw air compressor
Trade show and Customers

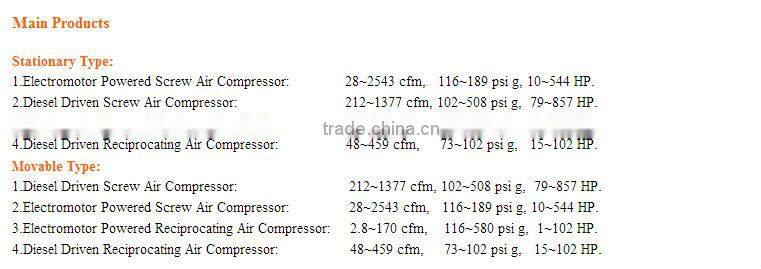

Main products
1) Screw Type Air Compressors ( Air delivery:0.8m³/min -72m³/min;Work pressure: 8-13Bar;Power: 7.5Kw-400kw)
2) Diesel Driven Portable Screw Air Compressors (Air delivery:6m³/min-39m³/min ,Work pressure:7-35Bar,diesel engine:58kw-630kw )
3) Motor Powered Portable Screw Air Compressors( 350CFM – 910CFM)
4) Mining Piston air compressor(Air delivery:1.35m³/min -13m³/min;Work pressure:5-7Bar;Power: 11Kw-75kw)
5) Industrial piston air compressor(Air delivery:0.08m³/min -4.8m³/min;Work pressure:8-40Bar;Power: 0.75Kw-75kw)
6) Drill rig (Include Water well drill rig)
7) Rock Drill(YO18-Y19-YT23D-YT24-Y26-YT28)
Certificates
We have special service team which will offers you professional guidance:
1.Low maintenance cost, high efficiency.Minimizing downtime of the equipment.
2.Planned maintenance budget.Maintenance plans are designed according to the customers' different requirements.Providing dedicated and experienced maintenance technicians.
3.Our sales team will response for your question within 24 hours(holidays excluded)
4.Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5.Quality Control:
1)We have our own experienced QC
2)There will be strict inspection and testing for every order before shipping out.
6.After-sale Service:
1)Quality Guarantee:12 months from delivery date(quick-wear part except)
2)For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advanced payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig:8430310000
