Stainless steel electric chemical transfer pump

Specifications

Inlet: 50 to 200 mm
Outlet: 32 to 150 mm
Flow: 0.3 to 400 m3/h
Head: 5 to 125 m
Power:0.55 to 90 kw

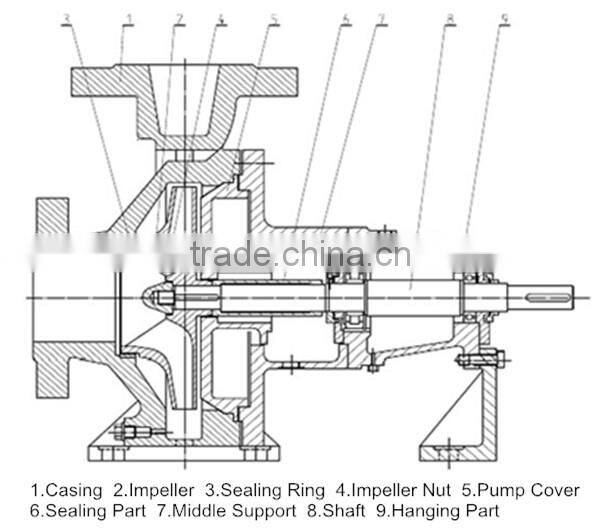

The property and dimension of type IH chemical pump are designed according to the international standard ISO2858 and API610.The pump is made up of casing,impeller,pump cover,shaft and etc..

The IH series chemical pump is single-stage and single-suction corrosion-resisting centrifugal pump,which pumps corrosive liquid without solid particle and viscosity similar to water.The temperature of medium is -20 to 105 degrees centigrade,if necessary,cooling measure can be taken to reach a higher temperature.It applies to petroleum,chemical,metallurgical,power,paper making,foodstuff,pharmaceutical,synthetic fiber industry and etc..

Notation

For example: IH50-32-160A

IH: International standard chemical pump series

50: Inlet diameter

32: Outlet diameter

160: Nominal diameter of impeller

A: Performance decreased after impeller of the same type is cut for first time
