IH Stainless Pump for Power Industry

IH Stainless Pump for Power Industry thumbnail-1
IH Stainless Pump for Power Industry photo-1
US$ 236 - 3,612 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
NNT
Model Number:
IH centrifugal chemical pump
Contact Supplier Request Quote Chat Now
Shijiazhuang Nainater Slurry Pump Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name NNT
Model Number IH centrifugal chemical pump
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Other
Power Electric
Standard or Nonstandard Standard
Fuel Diesel
Pressure High Pressure
Application Other, Chemical

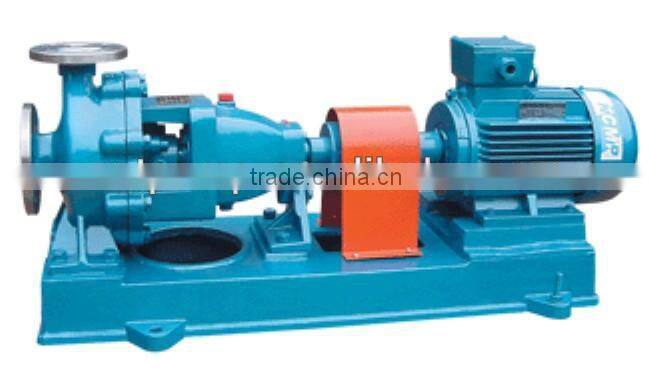

IH stainless pump for power industry

Type IH pump is single-stage, single-suction chemical cantilever centrifugal pump, it is instead of type F anti-corrosive centrifugal pump, it is a saving energy products, it widely used in the field of chemical engineering, petroleum, metallurgy, papermaking, food, medicine, fiber, etc., it is suitable for delivery corrosive medium or the medium which are not permitted to contaminate, the inlet pressure is ≤0.3MPa, the medium temperature is 20°C to 105°C, it can deliver more higher temperature medium by cooling unit.

IH Single-suction pump/Single-stage pump/Chemical pump/Centrifugal Pump

Performance Range(design point)

Flow:6.3~400m3/h

Head H :5m~125m.

 Instruction of pump type

  For example:IH50-32-160A

International Standard Chemical centrifugal pump

Inlet diameter is 50mm

Outlet diameter is 32mm

Nominal impeller diameter is 160mm

Impeller first cut







Modle r/min capaicty head power caliber NPSH
m3/h l/s m Inlet outlet m
IH50-32-125 2900 7.5 2.08 23 2.2 50 32 2
12.5 3.47 20 2
15 4.17 18 2.5
7.5 2.08 23 2.2 50 32 2
12.5 3.47 20 2
15 4.17 18 2.5
7.5 2.08 23 3 50 32 2
12.5 3.47 20 2
15 4.17 18 2.5
1450 3.75 1.04 5.75 0.55 50 32 2
6.3 1.74 5 2
7.5 2.08 4.5 2.5
3.75 1.04 5.75 0.55 50 32 2
6.3 1.74 5 2
7.5 2.08 4.5 2.5
3.75 1.04 5.75 0.55 50 32 2
6.3 1.74 5 2
7.5 2.08 4.5 2.5
IH50-32-160 2900 7.5 2.08 34.5 3 50 32 2
12.5 3.47 32 2
15 4.17 30 2.5
7.5 2.08 34.5 4 50 32 2
12.5 3.47 32 2
15 4.17 30 2.5
7.5 2.08 34.5 5.5 50 32 2
12.5 3.47 32 2
15 4.17 30 2.5
1450 3.75 1.04 8.6 0.55 50 32 2
6.3 1.74 8 2
7.5 2.08 7.5 2.5
3.75 1.04 8.6 0.75 50 32 2
6.3 1.74 8 2
7.5 2.08 7.5 2.5
3.75 1.04 8.6 1.1 50 32 2
6.3 1.74 8 2
7.5 2.08 7.5 2.5
IH200-150-400 1450 240 66.7 55.8 90 200 150 3
400 111.1 50 3.5
460 127.8 47 4
240 66.7 55.8 110 200 150 3
400 111.1 50 3.5
460 127.8 47 4
240 66.7 55.8 160 200 150 3
400 111.1 50 3.5
460 127.8 47 4



IH stainless pump for power industry
