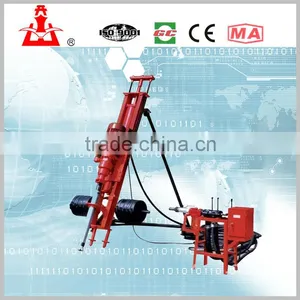

Help CenterDTH Drilling Machine KQD165B for Cement Factory
Related Products
-
Cement Factory Machine DTH Drill Rig KQD165BUS$ 1,500 - 9,000MOQ: 1 Set -
KQD145 Gun Drilling Machines for SaleUS$ 1,700 - 9,000MOQ: 1 Set
-
KQD100 Horizontal Drilling MachineUS$ 1,700 - 9,000MOQ: 1 Set
-
KQD100 Horizontal Directional Drilling MachineUS$ 1,700 - 9,000MOQ: 1 Set
-
KQD120 Drills Wells Used SaleUS$ 1,700 - 9,000MOQ: 1 Set
Specifications
1.High efficient and good performance2.ISO:9001-2000
3.Easy operating and maintenance

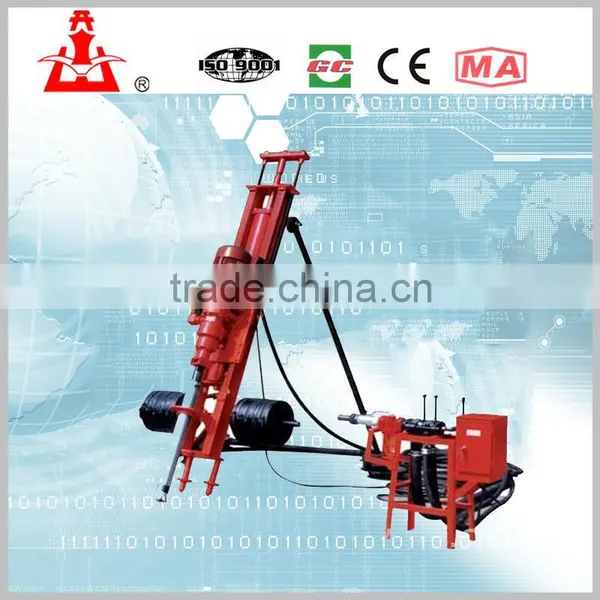

Specification of down the hole drill rig
KQD165B
Dia of The Hole |
90-150mm |
Depth of The Hole |
≥50m |
Rotation Speed |
0-60rmp |
Working Pressure |
0.7-1.4Mpa |
Specification of Drill Rod |
76*1500mm |
Air Consumption |
≥15m³/min |
Lifting Power |
12000N |
Motor Power |
11KW |
High Adaptability Down the hole drill
1.high efficiency and energy saving-motor driven down the hole drill
2.simple structure and easy to move
material and superior technology
4.adopt consummate design, long service life
5.easy to operate
Other model down the hole drill Technical Parameters:
| Model | Hole diameter | Hole depth | Working pressure | Air consumption | Remark |
| (mm) | (m) | (MPa) | (m3/min) | ||
| KQD 70 | 60--80 | ≥15 | 0.5—0.7 | ≥3.5 | 3kw |
| KQY90 | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
| KQD 100 | 80--100 | ≥20 | 0.5—0.7 | ≥6 | 4kw |
| KQD 120 | 80-100 | ≥20 | 0.5—0.7 | ≥6 | 5.5kw |
| KQD145B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
| KQD150B | 90-130 | ≥50 | 0.7-1.4 | ≥12 | 7.5kw |
| KQD165 | 90-150 | ≥50 | 0.7-1.4 | ≥15 | 11kw |
Advantages :
A----Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.
B----In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.
C----Centralized control mechanism,easy to operate.
D----Unique dual muffler,muffler effect, reducing environmental pollution

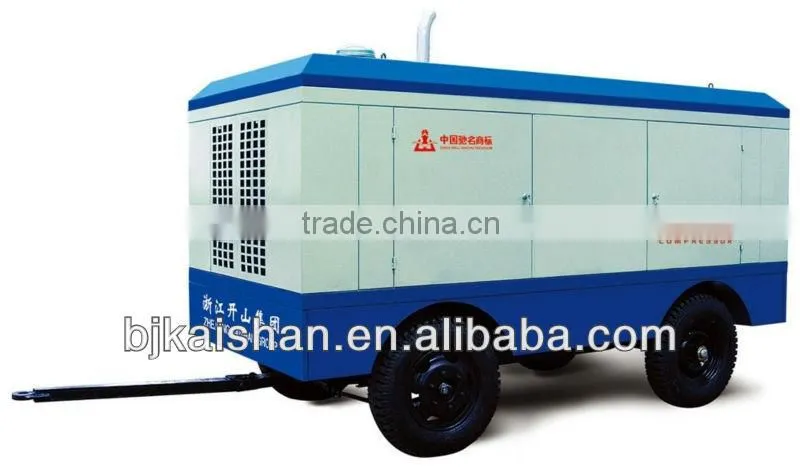

matched portable diesel piston air compressor:
| Model | CVFY-13/7 |
| Capacity (m³/min) | 13 |
| Working Pressure (Mpa) | 7 |
| Weight (kg) | 2200 |
| Dimension (mm) | 2800*1500*1850 |
Cooperation terms:
1)Delivery time :within 30days after receiving your advance payment
2)Payment terms:T/T 30% in advance ,the balance should be paid within 5days against the B/L date
3)Package:
1,plywood cases suitable for sea transportation
2,Fumigation-free wooden cases
3,simple package
4)Drill rig HS CODE:8414809090
5)Quality Guarantee:12 months from delivery date(quick-wear part except)
6)After-sale service:For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user whin assurance period for free(user in charge of freight fee)
About us:
KAISHAN GENERAL MACHINERY CO.,LTD(BEIJING) is located in captal of china,It's very convenient for foreign customer visit our company,we have over 10 years professional manufacturer of air compressor and drill rig, goodquality and competitive price was guaranteed with CE, ISO9001,ISO14001, ASME, energy saving certificate.we exports big amout machine every year.hope we can start business in near future.
Our Factory produce all kinds of air compressor and rock drill and drill rig, any feedback from you will be highly appreciate.
