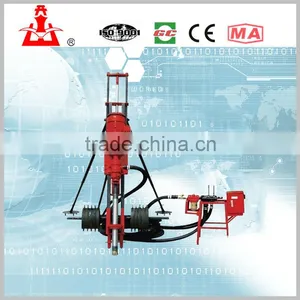

KQD155 Deep Rock New Drill Rig Horizontal Directional Drill Rig

KQD155 Deep Rock New Drill Rig Horizontal Directional Drill Rig thumbnail-1
KQD155 Deep Rock New Drill Rig Horizontal Directional Drill Rig photo-1
US$ 1,700 - 9,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Kaishan General Machinery Co., Ltd. (Beijing)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI NINGBO TIANJIN QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Electric
Place of Origin Zhejiang, China
Brand Name KAISHAN
Model Number KQD155B
Usage Coal
Voltage 380 v
Power(W) 7.5KW
Certification ISO, CCC
Warranty 2 years
After-sales Service Provided Overseas service center available





1.High efficient and good performance
2.ISO:9001-2000
3.Easy operating and maintenance

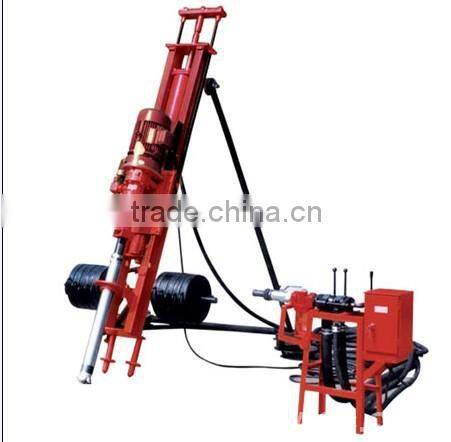

Specification of down the hole drill rig



KQD150B



Dia of The Hole

90-130mm

Depth of The Hole

≥50m

 Rotation Speed

0-60rmp

Working Pressure

0.7-1.4Mpa

Specification of Drill Rod

76*1500mm

Air Consumption

≥12m³/min

Lifting Power

12000N

Motor Power

7.5KW



High Adaptability Down the hole drill



1.high efficiency and energy saving-motor driven down the hole drill

2.simple structure and easy to move

 material and superior technology

4.adopt consummate design, long service life

5.easy to operate



Other model down the hole drill Technical Parameters:



Model

Hole diameter

Hole depth

Working pressure

Air consumption

Remark

(mm)

(m)

(MPa)

(m3/min)

KQD 70

60--80

≥15

0.5—0.7

≥3.5

3kw

KQY90

80--100

≥20

0.5—0.7

≥6

4kw

KQD 100

80--100

≥20

0.5—0.7

≥6

4kw

KQD 120

80-100

≥20

0.5—0.7

≥6

5.5kw

KQD145B

90-130

≥50

0.7-1.4

≥12

7.5kw

KQD150B

90-130

≥50

0.7-1.4

≥12

7.5kw

KQD165

90-150

≥50

0.7-1.4

≥15

11kw





Advantages :



A----Forward,turn,and the impact of all the compressed air as power,structure simple ,power,relocation facilities.

B----In the single-top,double top,bearing-type three supporting structures to choose fom,can adapt to any geological features.

C----Centralized control mechanism,easy to operate.

D----Unique dual muffler,muffler effect, reducing environmental pollution

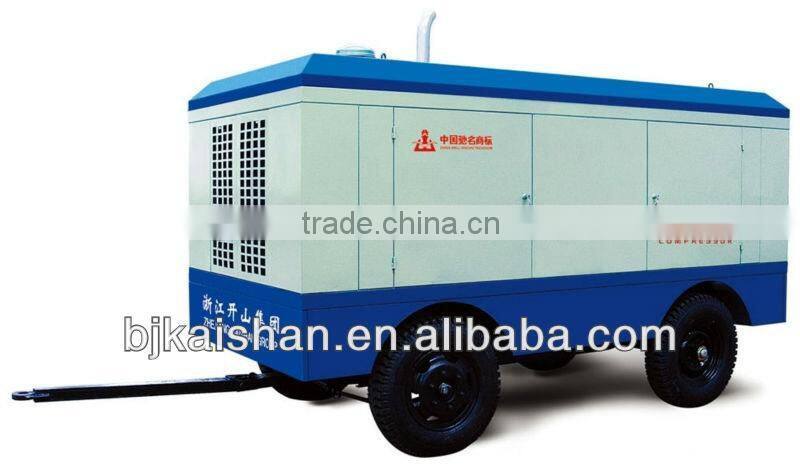

matched portable diesel piston air compressor:





Model

CVFY-13/7

Capacity (m³/min)

13

Working Pressure (Mpa)

7

Weight (kg)

2200

Dimension (mm)

2800*1500*1850



KQD155 deep rock new drill rig horizontal directional drill rigKQD155 deep rock new drill rig horizontal directional drill rig











Packaging & Shipping

 KQD155 deep rock new drill rig horizontal directional drill rig

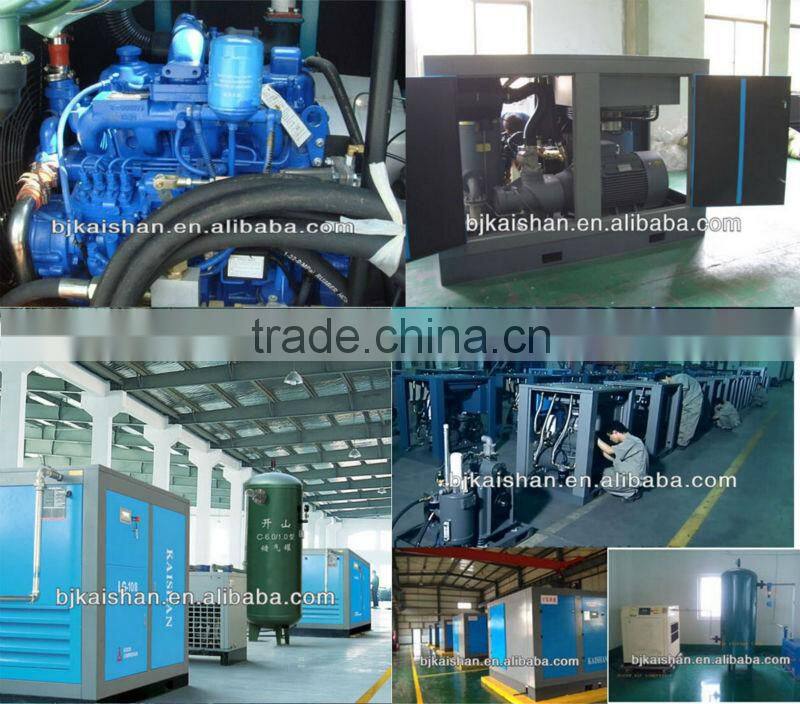

Factory

 KQD155 deep rock new drill rig horizontal directional drill rig





Any needs contact me!

Sales02: Cathy

skype:kaishan02

Tel: Tel:0086-10-87825233

Fax:0086-10-87399234
