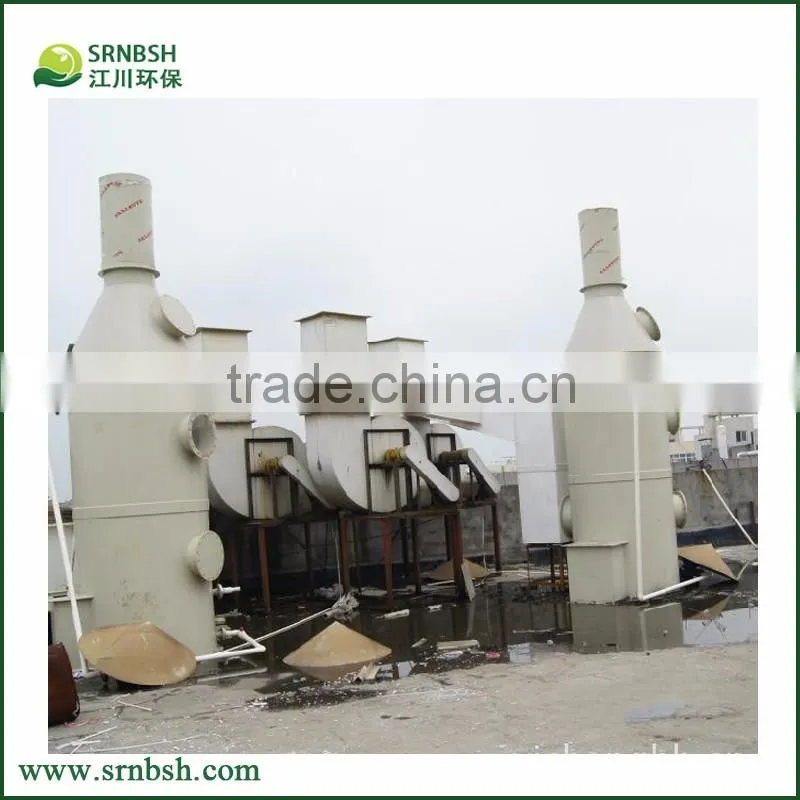

Help CenterAcconding To Market Survey Special Hot Sell Sieve Plate Absorption Tower With ISO Centification
Related Products
-
Newly Industrial High Efficiency Industrial Vertical Exhust Scrubbing Tower MachineUS$ 1 - 35,000MOQ: 1 Set -
Beneficial To Restaurant And Fast Food Shop Kitchen Ceiling-mounted Air Scrubber Gas Purification SystemUS$ 1 - 25,000MOQ: 1 Set
-
Acconding To Market Survey Special Hot Sell Spray Tower Made In China Industrial Air Purifier Equipment SupplierUS$ 1 - 38,000MOQ: 1 Set
-
China Factory Manufacturing Purification Equipment Fiberglass FRP ACID FUME Absorption Scrubber TowerUS$ 1 - 28,000MOQ: 1 Set
-
Latest Spray Scrubbing Tower and Harmful Gas Purifier Machine Made In ChinaUS$ 1 - 35,000MOQ: 1 Set
Type of Gas |
Name of Gas |
Molecular formula |
Removal Rate |
|
Acid Alkali |
Hydrochloric acid |
HCl |
98~99% |
Cyanic acid |
HCN |
>99% |
|
Hydrofluoric acid |
HF |
>99% |
|
Sulfur dioxide |
SO2 |
98.5%-99.5% |
|
Chlorine |
Cl2 |
>99% |
|
Hydrogen sulfide |
H2S |
98.5%-99.5% |
|
Sulfuric acid |
H2SO4 |
98.5%-99.5% |
|
Nitric acid |
HNO3 |
>99% |
|
ammonia gas |
NH3 |
>99.5% |
|
Sodium hydroxide |
NaOH |
>99% |
|
oxynitride |
NOX |
98~99% |
|
|
Organic |
methylbenzene |
|
>99% |
xylene |
|
>99.5% |
|
xylene |
|
>98.5% |
|
ethyl acetate |
|
98~99% |
The system is in the role of the fan, the airflow makes upward movement from the imports in the bottom of the tower, besides , the chemical liquid makes downward movement . In the same time, there are numbers of filler in the tower , increase the contact area between liquid and gas , so achieve the purification effect .The clean gas is discharged through the upper layer of the demister .Due to the different composition of the gas , acid liquid or alkali were selected as the chemical liquid .
1.The purification tower could made of PVC,PP,FRP,carbon steel or stainless steel.
2. Process large air volume , and the performance is stable .
3. The operation and the maintenance are both convenience .
4. The purification efficiency is up to 99.9%.
AIR VOLUME |
PRESSURE |
FAN |
PUMP |
SIZE |
GW |
|||
MODEL |
m3/h |
MODEL |
POWER |
FLOW |
HP |
|||
1 |
1000 |
1800PA |
SN-4C |
1.1 |
550 |
5 |
800X5000X8T |
500KG |
2 |
2000-3000 |
1800PA |
SN-5C |
3 |
550 |
5 |
1200X5000X10T |
620KG |
3 |
4000-8000 |
1800PA |
SN-6C |
7.5 |
590 |
7.5 |
1500X5500X10T |
710KG |
4 |
9000-15000 |
1800PA |
SN-15C |
15 |
590 |
10 |
2000X5500X10T |
800KG |
5 |
16000-22000 |
1800PA |
SN-23C |
22 |
590 |
10 |
2400X5500X10T |
1T |
6 |
23000-28000 |
1800PA |
SN-9C |
30 |
1200 |
15 |
2600X5500X10T |
1.2T |
7 |
28000-35000 |
1800PA |
SN-36C |
37 |
1200 |
15 |
2700X5500X10T |
1.5T |
8 |
36000-45000 |
1800PA |
SN-48C |
45 |
1200 |
15 |
3000X5500X10T |
1.7T |
9 |
50000 |
1800PA |
SN-55C |
55 |
1200 |
15 |
3200X5500X10T |
1.9T |
Waste gas purification tower is generally made up of draught fan, packing layer, demister, circular watering pipe, circulating water channel, etc.
Currently, waste gas purification tower has been successfully used to deal with spraying waste gas, printing waste gas, chemical waste gas, electronic waste gas, medical waste gas, asphalt waste gas, mechanical exhaust, sewage waste gas, etc. And it also has a great success in meeting the national discharge standard. At the same time, it removes odour and improves the environment. It is especially suitable for the waste gas which is of low dust capacity, low concentration and great peculiar smell.
This machine aims at separating gas from the contaminant and translating into innocuous substance and then cleaning gas. The waste gas intakes to the purifying column through the air hose, after packing, the waste gas and absorption liquid are completely contacted and have a neutral reaction. After purified, the waste gas discharges into the environment after demisting and dehydration. Its motivation is draught fan.

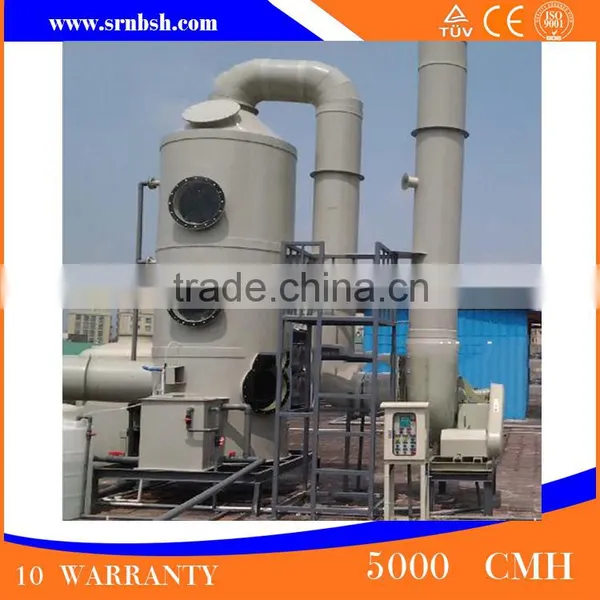

1000 CMH Scrubbing Tower
