Home > Products > Dust Collector > China Factory Cement Mill Ash Silo Single Impulse Dust Collector Filter Single Pulse Dust Collector

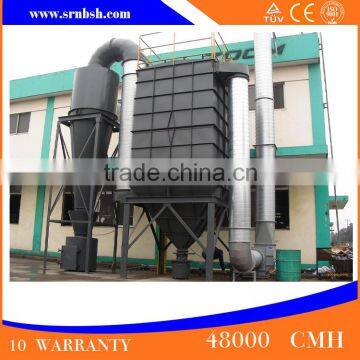

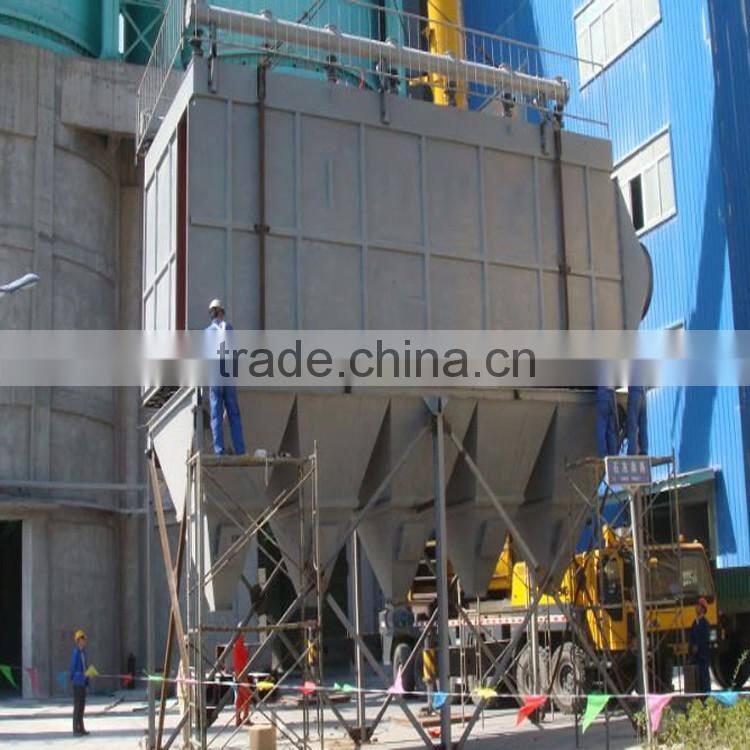

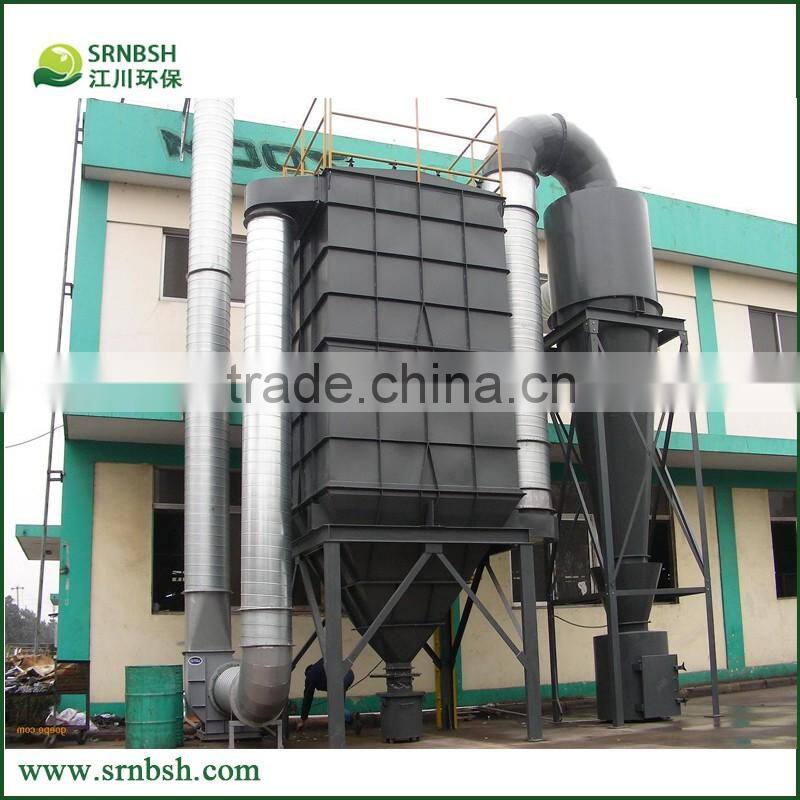

China Factory Cement Mill Ash Silo Single Impulse Dust Collector Filter Single Pulse Dust Collector
- 1 Set / Sets per Month
- ShangHai
- T/T L/C D/P D/A
-
Best selling oil mist collection centrifugal oil mist collector for CNC machines
-
Ventilation cleaning equipment, negative pressure cyclone dust collector
-
LIVTER Factory High Power Wood Dust Collector Industrial Dust Sawdust Collector Engraving Machine Dust
-
LIVTER Dust Collector Bag Industrial Woodworking Dust Collector Cyclone
-
LIVTER Cyclone Dust Separator With Filter Bag Dust Collector Woodworking Wood Dust Collector
-
LIVTER Industrial Cyclone Cartridge Dust Collector For Woodworking Machine
Product Details
| Type: | Fabric Dust Collector | Efficiency: | 99.9% | ||
| Minimum Particle Size: | 0.5 Micron, according to requirment | Place of Origin: | Jiangsu, China | Brand Name: | JiangChuan |
| Model Number: | CTB-78 | Dimension(L*W*H): | Requirment | Weight: | 3280kg |
| Certification: | CE ISO Certificate, ISO, CE, | Warranty: | 10 Years | After-sales Service Provided: | Overseas service center available |
Product Description
Material of Bracket | SS41+EPOXY Rust-Prevention |
Material of Axle | S45C |
Efficiency of dust collection | over 99% |
Resistance | low |
Air volume | Process air volume is very big |
Performance | Reliable |
Operational maintenance | Simple |
Dynamic Balance | ISO1940; 2.5mm/s |
Shake | ISO2372; 4.5mm/s |
Kindly attention: The description over here is for model selection reference only. It maybe won't update from time to time, so if you have any demand please contact us and tell us what you need, so that we can make best selection for you.
TypeBags
|
filter bag length (mm)
| air volume (m3/h) | Filter area (m3) |
| ||
A | B | C | ||||
CTB--1 | 1800 | 156--780 | 2.6 | 456 | 366 | 414 |
2000 | 174--870 | 2.9 | 478 | 384 | 434 | |
2100 | 210--1050 | 3.5 | 510 | 410 | 460 | |
| 1800 | 395--1980 | 6.6 | 710 | 560 | 640 |
2000 | 444--2220 | 7.4 | 740 | 590 | 670 | |
2400 | 534--2670 | 8.9 | 790 | 640 | 720 | |
CTB--18 | 1800 | 714--3570 | 11.9 | 1140 | 870 | 1030 |
2000 | 792--3960 | 13.2 | 1200 | 920 | 1090 | |
2400 | 954--4770 | 15.9 | 1270 | 990 | 1160 | |
CTB--26 | 1800 | 1032--5160 | 17.2 | 1350 | 1030 | 1230 |
2000 | 1146--5730 | 19.1 | 1420 | 1090 | 1290 | |
2400 | 1380--6900 | 23.0 | 1500 | 1180 | 1370 | |
CTB--39 | 1800 | 15472--7710 | 25.7 | 1960 | 1460 | 1780 |
2000 | 1722--8610 | 28.7 | 2060 | 1530 | 1870 | |
2400 | 2076--10380 | 34.6 | 2140 | 1640 | 1940 | |
CTB--52 | 1800 | 2112--10560 | 35.2 | 2360 | 1770 | 2150 |
2000 | 2292--11460 | 38.0 | 2480 | 1860 | 2250 | |
2400 | 2766--13830 | 46.4 | 2600 | 1990 | 2370 | |
CTB--78 | 1800 | 3093--15450 | 51.5 | 3290 | 2450 | 2990 |
2000 | 3438--17190 | 57.3 | 3460 | 2570 | 3140 | |
2400 | 4146--20730 | 69.1 | 3620 | 2740 | 3280 | |
CTB--104 | 1800 | 4116--20580 | 68.6 | 4200 | 3130 | 3820 |
2000 | 4590--22950 | 76.5 | 4410 | 3296 | 4010 | |
2400 | 5526--27630 | 92.1 | 4650 | 3530 | 4220 | |
20000CMH Dust Collector
