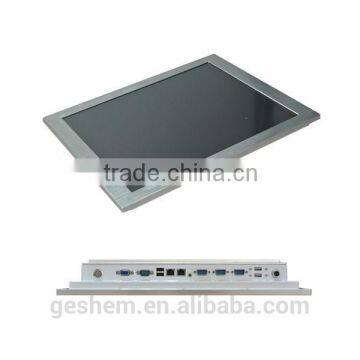

Features:
l Intel ®ATOM D525 1.8GHz Processor

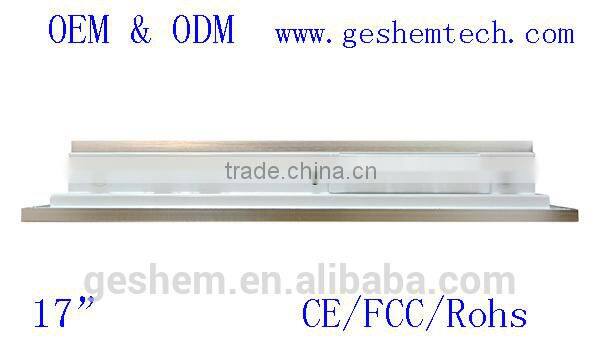

l 17″ TFT LED screen
l Resistive touch screen
l Fully-sealed fanless design, suitable for harsh industrial environment applications
l 2GB memory (DDRIII), up to 4GB memory
l 4*USB /4*COM/1*VGA
l 2*RJ45 Gigabit LAN
l Color: Slivery/Black/White
Specifications:
Display Feature |
Display Screen |
17″ TFT LED |
Resolution |
1024*768 |
|
Brightness |
350 cd/m2 |
|
Contrast ratio |
400:1 |
|
Touch Screen |
Resistive touch screen |
|
Performance |
Chipset |
Intel ®ATOM D525 + ICH8M |
Memory |
2G memory (DDRIII), up to 4GB |
|
Hardware Monitor |
Monitors voltage, TEMP and CPU fan speed |
|
Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec, setup by software |
|
Storage |
HDD:320GB 2.5'HDD CF :(Optional) |
|
Power Supply |
100~240VAC/50~60Hz (Power adapter) 12VDC/5A or 9~36VDC Optional (No power adapter) |
|
Power Dissipation |
28W (standby); 40W (Running MaxPower 100%) |
|
O/S |
Operating System |
Windows XP/ Windows 7/ Linux |
I/O Interface |
USB |
4*USB2.0 Ports |
Serial Port |
4*RS232 (1~2*RS485 Optional) |
|
Ethernet |
2* RTL8111DL 10/100/1000Mbps RJ45 |
|
Audio |
1*Line out |
|
Display |
1*VGA |
|
Environmental |
Anti-vibration |
5-19Hz/1.0mm amplitude;19-200Hz/1.0g, acceleration |
Anti-shock |
10g acceleration, 11ms duration |
|
IP Level |
Front panel IP65(Optional) |
|
Reliability |
MTBF≥50000h; MTTR≤0.5h |
|
Operating Temperature |
-10℃~50℃ (with air flow) |
|
Storage Temperature |
-20℃ ~60℃ |
|
Operating Humidity |
95% @40℃, non-condensing |
|
Mechanical |
Dimensions |
400mm(L)×320mm(W)×60 mm (H) |
Material |
High-strength and elegant Al-alloy panel |
|
Weight |
6.75kg/8.75kg (NET./GROSS.) |
|
Color |
Slivery/Black/White |
Packaging & Shipping:
1. Geshem Tech strives to get all the orders out as quickly as possible after the QC Dept fully test them.
2. The packaging method: plastic bag with one piece of industrial pc, packed with carton, and some foams do shockproof function. The size for the carton is 51*44*20 (cm).
3. Sea and Air delivery is available.
4.Flexible delivery time can be negotiated and on time delivery is our consistent style.
5.Customer can specify the Logistics company as their wish.
6. The package include the PC, power adapter, CD driver, QC pass, and some include the brackets.
1. Sample available
2. OEM & ODM are available for any kinds of industrial computers
3. High quality can be guaranteed, any further assistance just send us an email or call us any time.
4. Well-trained & experienced staff can answer all your inquiries influent English and your email or inquiries will be replied in 24 hours.
5. Arrange shipments any port in China.
6. one-year warranty and good after-sales services
Founded in 2008, Shenzhen Geshem Technology is one of the major designing and manufacturing companies in the industrial computer and embedded field. Our company has earned ISO 9001:2008 certification, and our products have passed CE, FCC, RoHs compliance testing by independent labs. We have offices in Germany, India, one agent in Iran, and three offices in China. The head office is in Shenzhen. In addition, we are also the agent of Getac in the south of China.
Android industrial panel pc: PPC-GS1091T Available size: 7"/8"/10"/12"

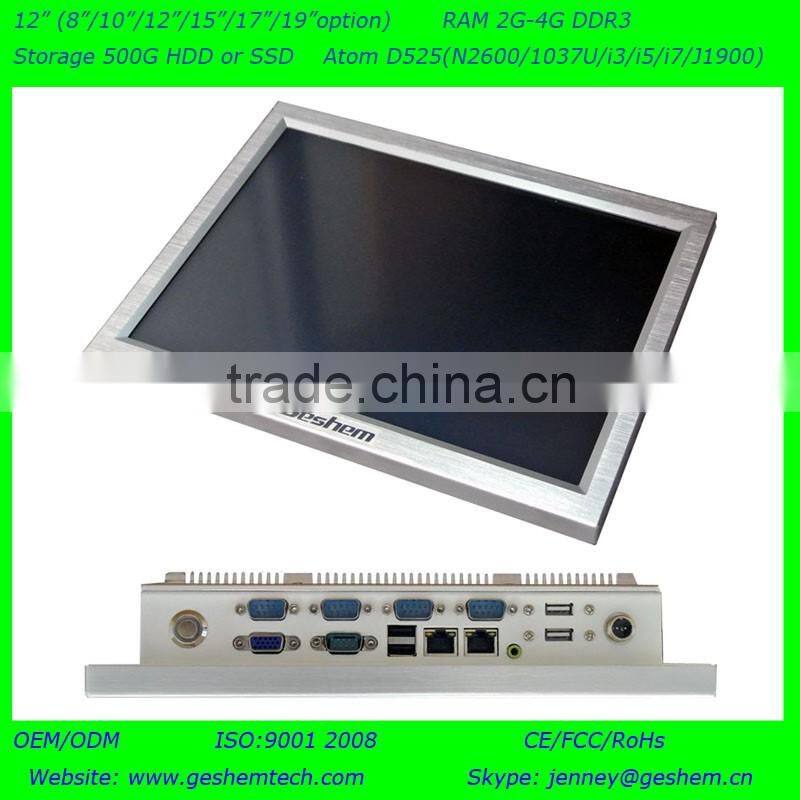

Industrial panel pc: PPC-GS1201T:
Available size: 8"/10"/12"/15"/17"/19" Available CPU: Intel Atom N2600, N2800, D525, Bay Trail J1900, i3/i5/i7/ Celeron 1037U

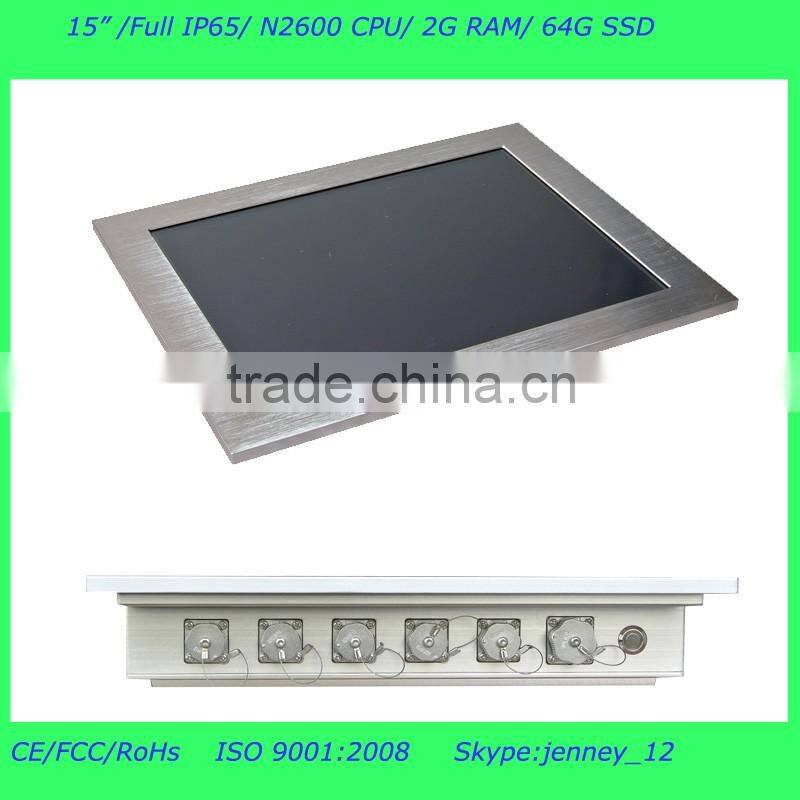

Rugged Full IP 65 industrial panel PC: PPC-GS1504TI:

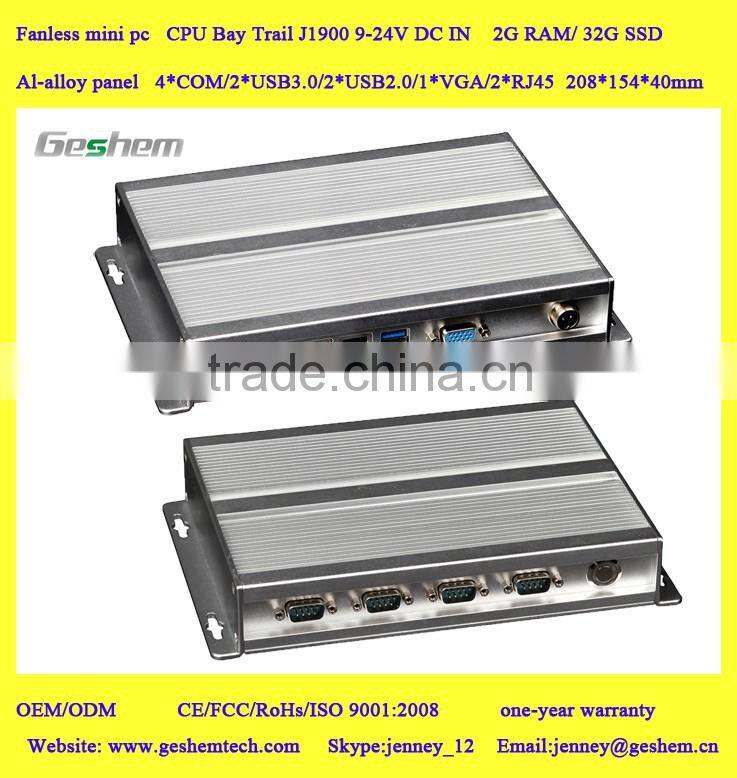

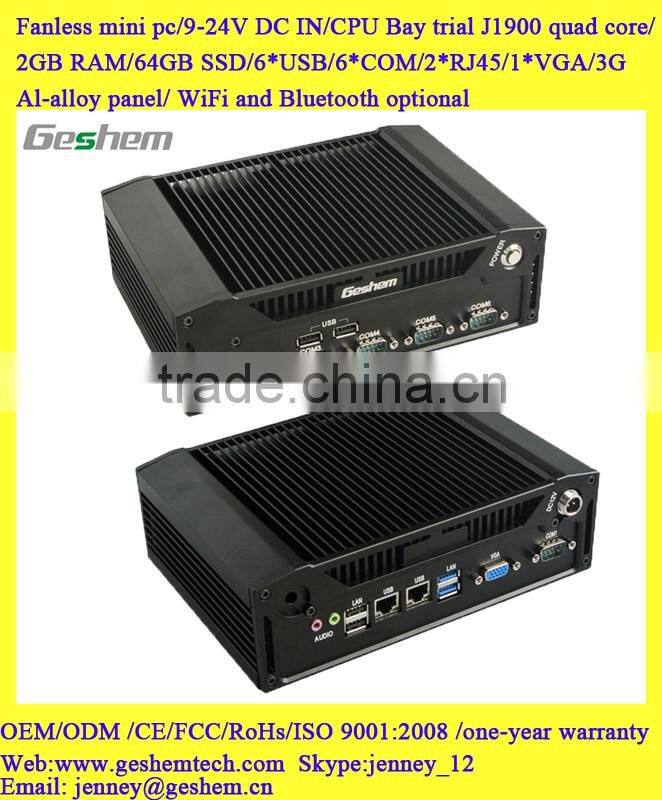

fanless embedded mini pc: PC-GS3051A:
Available CPU: Haswell/i3/i5/i7/Bay Trail J1900/ N2930/ D525/N2600/ N2800
Product Application
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Military standard monitor,Reinforcement level display
4.Industrial machinery, numerical control equipment, engineering machinery,
5.Train, subway, hospitals, government agencies, port monitoring and display
6.4S auto shop, product display, automatic vending machine, courier easy box
7.Self registration, bank line access number, terminal self - help machine,
8. Medical equipment,Terminal inquiry machine, automation equipment
