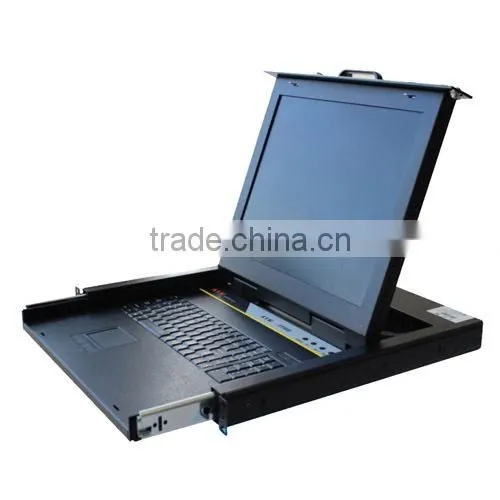

Help Center15'' TFT LCD KVM Switch With PS2 an USB Cable
Related Products
Introduction:
- Withdrawing installation design, the length can be adjusted to fit the rack space.
- Humanized design,can be installed and removed by only one person, which improves the efficiency of the administrator.
- To switch the host computer though the hotkey or OSD menu, which can manage up to 512 pcs
- Support Password security protection, only authorized users can view and manage on-line computer.
- Support a variety of brand industrial computer and the server: EVOC/Lenovo/IBM/DELL/HP/SUN, etc
- Support various operating system: Microsoft, Linux, Unix, etc.
Features:

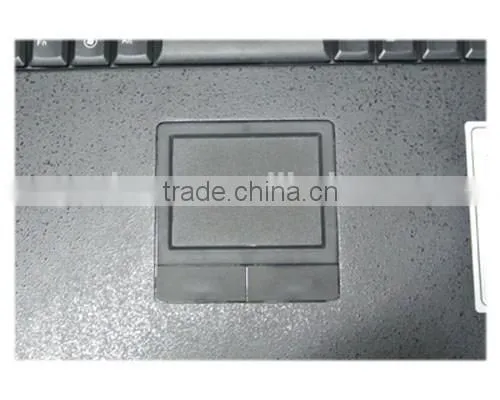

l LCD display/Touchpad mouse/104 Keyboard with Digital Zone/E-Switch.
l Excellent video effects, the best resolution is up to 1024*768 @ 75HZ.
l Support DDC2B.can detect the screen model without switching the computer.
l PS/2 keyboard and mouse are connected to control computer.
Specifications:
Model: |
KVM-GS1504M |
KVM-GS1508M |
KVM-GS1516M |
|||
Computer Connections: |
Direct 4, Max: 128 |
Direct 8, Max: 256 |
Direct 16, Max: 512 |
|||
Cable port: |
D-SUB15 (LCD, PS/2&USB keyboard, mouse).OSD switch Support. |
|||||
LEDs port |
4 |
8 |
16 |
|||
Switch mode: |
Hotkey, OSD menu |
|||||
Computer connectors |
4 |
8 |
16 |
|||
Switch Scan Time: |
1-255 second (OSD adjustable) |
|||||
LCD |
Size |
15" TFT LCD |
||||
Resolution |
1024*768 |
|||||
lor |
16.7M |
|||||
Brightness |
300 cd/m2 |
|||||
Contrast ratio |
700:1 |
|||||
Pixel Pitch |
0.297 mm x 0.297 mm |
|||||
Keyboard/Mouse |
104 Mechanical mute Keyboard Touchpad |
|||||
Power Input |
AC100-240V 47-63Hz, 35W |
|||||
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|||||
Color |
Insulated black paint (optional) |
|||||
Dimension ( L x W x H ) |
546mm*480mm*44mm |
|||||
Gross Weight |
21.5-26.3KG |
|||||
For Cabinet |
800-1040mm |
|||||
Operating Temp |
-10℃~60℃ |
|||||
Storage Temp |
-30℃~70℃ |
|||||
Humidity: |
0%-80%RH |
|||||
Certificate: |
CCC, FCC, CE |
|||||
Ordering information
KVM-GS1504M |
1U Rack mount 15" TFT LCD/4 port KVM switch/ 12V power supply/ PSII&USB cable. |
KVM-GS1508M |
1U Rack mount 15" TFT LCD/ 8 port KVM switch/ 12 V power supply/ PSII&USB cable. |
KVM-GS1516M |
1U Rack mount 15" TFT LCD/16 port KVM switch/ 12V power supply/ PSII&USB cable. |
