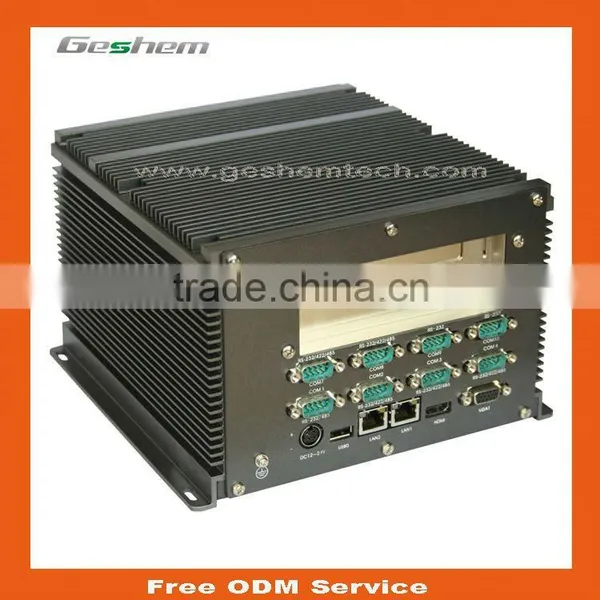

Fanless Industrial Computer Wtih no Internal Cable Design

Name: Fanless Industrial Computer Wtih no Internal Cable Design
Brand: Geshemtech
SKU: 101472501
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Type:

Embedded Computer

Brand Name:

Geshemtech

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Embedded Computer

Brand Name Geshemtech

Model Number PC-GS525P2

Place of Origin Guangdong, China

Specifications

Fanless Industrial Computer wtih no internal cable design
2*PCI Slot
2*RJ45/1000M
4*USB
10*COM

Fanless Industrial Computer wtih no internal cable design

Model	PC-GS525P2
System
Chipset	Intel D525 + Intel® ICH9M
Memory	Onboard 2G memory (DDRIII), up to 4GB
Hardware Monitor	Monitors voltage, TEMP
Watchdog Timer	Programmable 256 levels timer interval
Storage	1x2.5SATA; 1xDOM
Ethernet	2xRJ45 10/100/1000M
I/O Interface
Expansion Slots	2 x PCI Slot
USB	4 x USB
COM	10 x COM
Audio	Line Out/MIC in
LAN	2 x RJ45
Display	1x VGA port; 1x HDMI
Enviroment	Shock Protection: IEC 60068-2-27 CF: 50 G @ wall mount, half sine, 11 ms HDD: 20 G @ wall mount, half sine, 11 ms ; Vibration Protection IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) CF: 2 Grms @ 5 ~ 500 Hz, HDD: 1 Grms @ 5 ~ 500 Hz ; Reliability : MTBF≥50000h; MTTR≤0.5h ; Operating Temperature : -20°C~50°C @ 5 ~ 85% RH. (with air flow) ; Storage Temperature : -40°C ~80°C ; Humidity : 95% @40°C, non-condensing
Power Supply	12V DC Power Input
O/S	Linux/ Windows 7/ Windows XP
Structure	Dimensions : 192x210 x135 (LxWxH mm) ; Material : Aluminium alloy ; Weight : 3.5kg/4.2kg ; Color : Steel Gray ; Fanless ; No Internal Cabling
