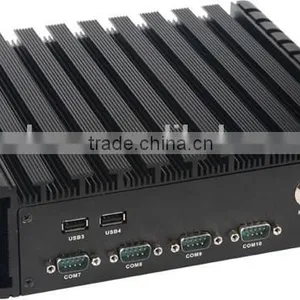

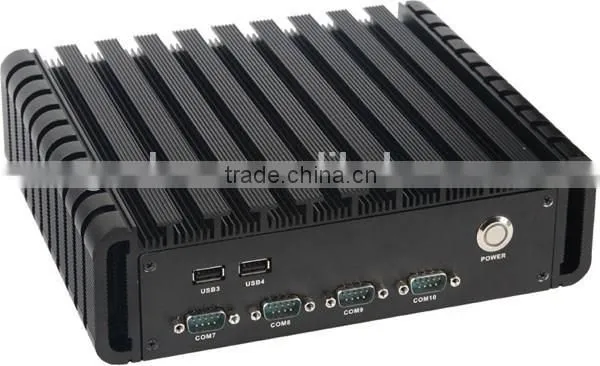

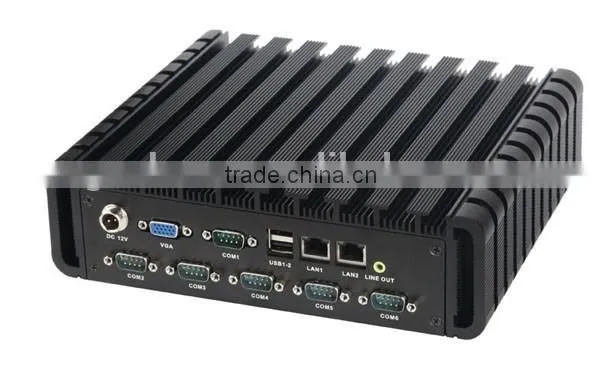

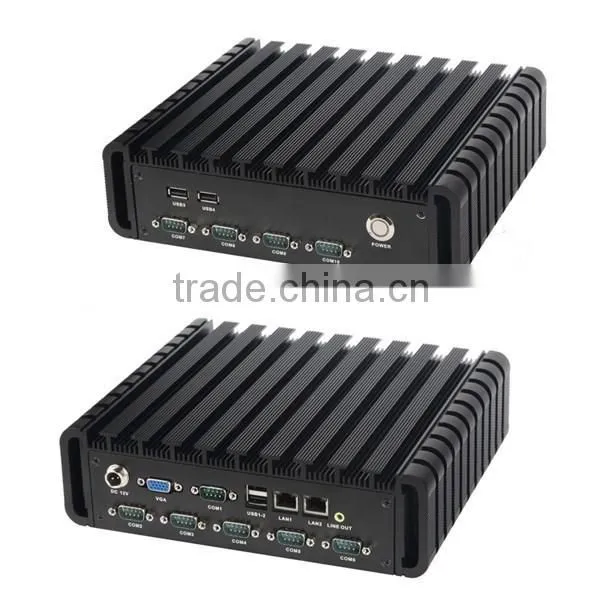

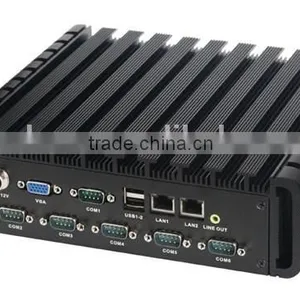

Industrial Fanless Mini Computer With Dual Lan and 2 GB RAM

Name: Industrial Fanless Mini Computer With Dual Lan and 2 GB RAM
Brand: Geshem technology
SKU: 101471397
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Type:

Other, industrial box pc

Brand Name:

Geshem technology

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Other, industrial box pc

Brand Name Geshem technology

Model Number PC-GS8001A

Place of Origin Guangdong, China

Product Description

Features:

l Intel ®ATOM D525 1.8GHz Processor

l Fully-sealed fanless design, suitable for harsh industrial environment applications

l 2GB memory (DDRIII), up to 4GB memory

l 4*USB/10*COM/1*VGA

l 2*RJ45 Gigabit LAN

l 1*Audio(Line-out,MIC-in)

l 1*WIFI(Optional)

l Color: Slivery/Black

Performance	Chipset	Intel ®ATOM D525 + ICH8M
	Memory	2G memory (DDRIII), up to 4GB
	Hardware Monitor	Monitors voltage, TEMP and CPU fan speed
	Watchdog Timer	1 to 255 sec, setup by software
	Storage	HDD:320GB 2.5'HDD
	Power Supply	100~240VAC/50~60Hz (Power adapter); 12VDC/5A; (No power adapter)
	Power Dissiation	15W (standby) 25W (operating MaxPower 100%)
O/S	Operating System	Windows XP/ Windows 7/ Linux
I/O Interface	USB	4 *USB2.0 Ports
	Serial Port	MAX 10RS232 (1~2RS485 Optional)
	Ethernet	2* RTL8111DL 10/100/1000Mbps RJ45
	Audio	1*Line out/Mic-in
	Display	1*VGA
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;
	Anti-shock	10g acceleration, 11ms duration.
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃ (with air flow)
	Storage Temperature	-20℃ ~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	237mm (L) 200 mm (W) 68 mm (H)
	Material	High-strength and elegant Al-alloy panel
	Weight	2.5kg/3.5kg(NET./GROSS.)
	Color	Slivery/Black
