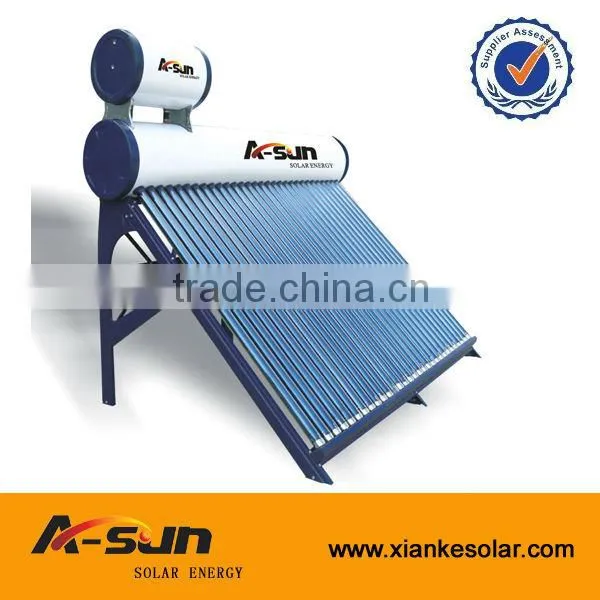

China Low Cost Pre-heating Copper Coil Solar Geyser
US$ 300 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vacuum Tube Pre-heated Integrated Pressurized Solar Heating SystemUS$ 250 - 520MOQ: 1 Set -
Non-pressurize Copper Coil Thermosiphon Vacuume Tube Solar Water Heater SystemUS$ 250 - 520MOQ: 1 Set
-
Pressure Vacuum Tubes Copper Pipe Thermosiphone Solar Hot Water HeaterUS$ 250 - 520MOQ: 1 Set
-
Pre-heated Unpressurized Stainless Steel Solar Water Heater SystemUS$ 250 - 520MOQ: 1 Set
-
Household Compact Freestanding Evacuated Tube Inox Solar Hot Water HeaterUS$ 250 - 520MOQ: 1 Set
Type
Evacuated Tube
Pressure
Pressurized
Circulation Type
Direct / Open Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Direct-Plug
Installation
Freestanding
Housing Material
Other, zinc-painted steel
Certification
CE, Other, CE, ISO,SGS.CCC
Capacity
360
Place of Origin
Zhejiang, China
Brand Name
A-sun

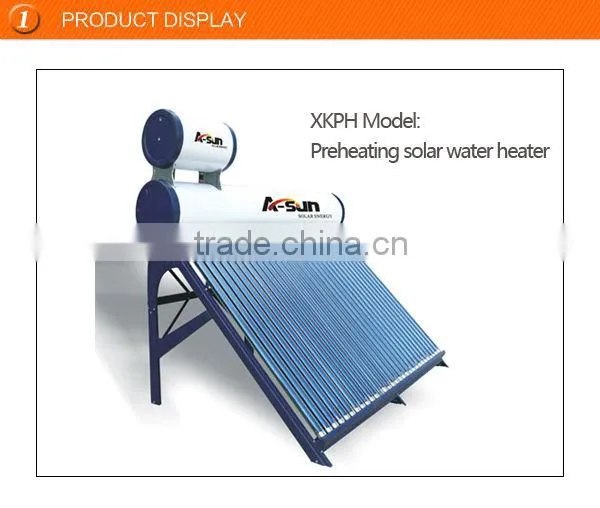

Model Number
XKPH
Specifications
Low cost pre-heating copper coil solar geyser1)CE, ISO,SGS
2)bear 0.7Mpa
3)feed tank for auto-loading
Product Description
Low cost pre-heating copper coil solar geyser

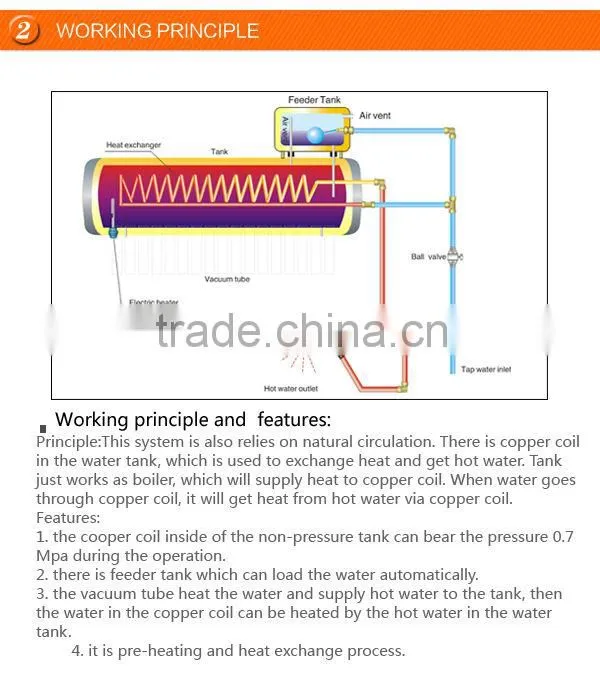

Feature:
1. the cooper coil inside of the non-pressure tank can bear the pressure 0.7 Mpa
during the operation.

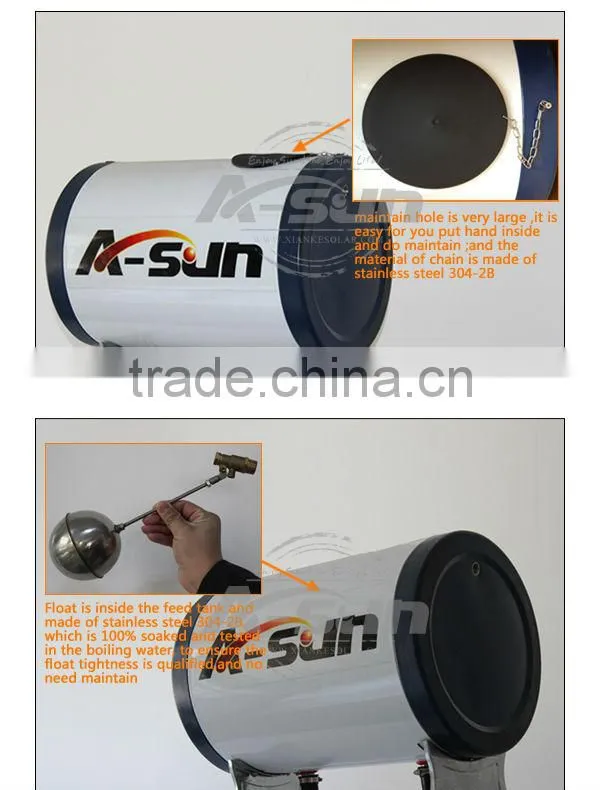

2. there is feeder tank which can load the water automatically.

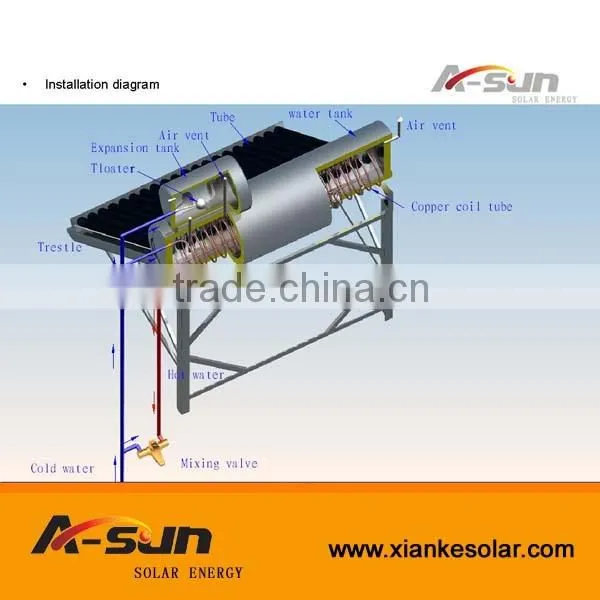

3. the vacuum tube heat the water and supply hot water to the tank, then the water
in the copper coil can be heated by the hot water in the water tank.
4. it is pre-heating and heat exchange process.
5. only if the water in the tank is hot, more hot water will be got and exceed the capacity
limit of the water tank.
6. clean hot water from the copper coil.
7. you can use the hot water inside of the copper coil or the hot water in the tank.
Low cost pre-heating copper coil solar geyser

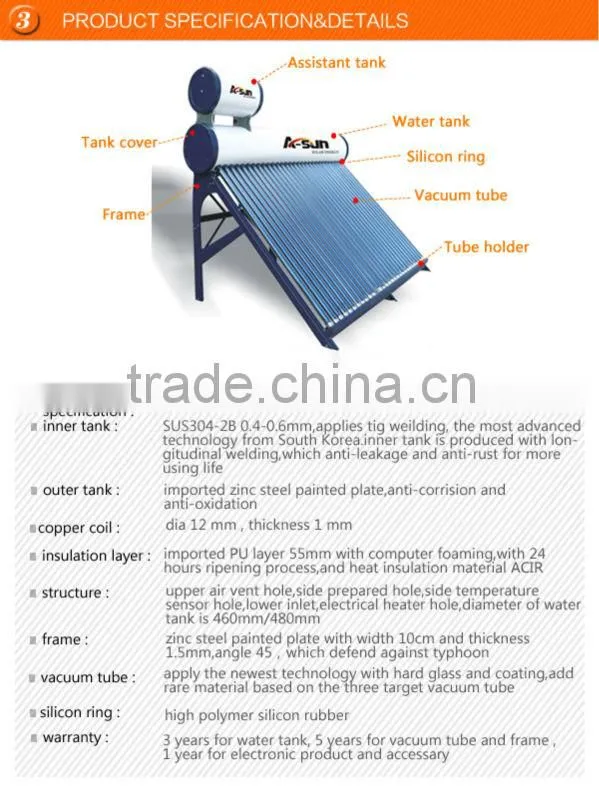

| Vacuum tube | 58-1800mm co-axial structure high borosilicate 3.3 glass vacuum tube with tube wall thickness of 1.8mm, and coated with AL-N-AL |
| Inner tank | diameter 360/380mm, SUS304-2B with thickness of 0.4/0.5/0.6mm |
| Outer tank | dia.460/480mm, zinc steel plate 0.4mm |

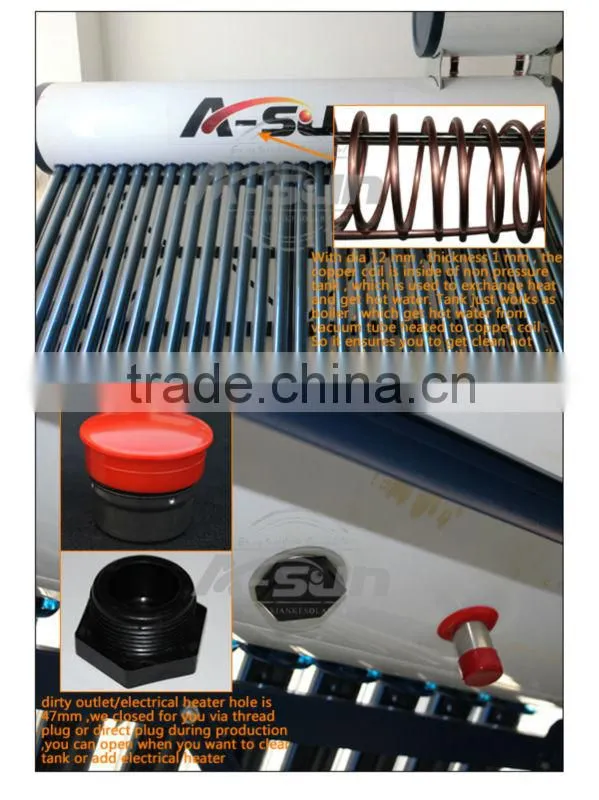

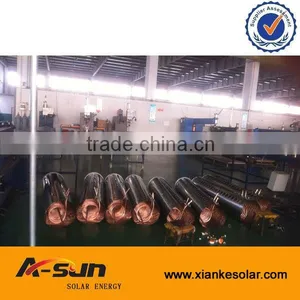

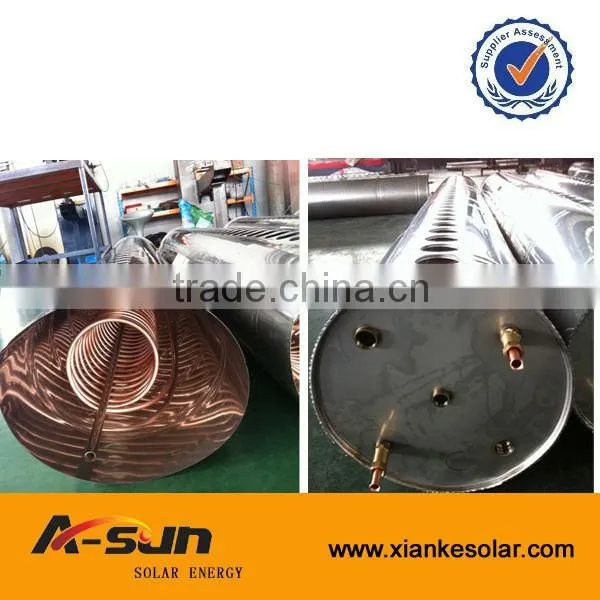

| Copper coil | Inside the water tank, 25 to 35m in length; Diameter:12mm; Thickness:1.0mm |
| Frame | zinc steel painted plate 1.5mm, 25°,38°,45° |
| Capacity of water tank | 150-360L, 40-50L/person for Max consumption |
| Heat preservation layer | high pressure automatic polyurethane foaming layer with thickness of 50mm |

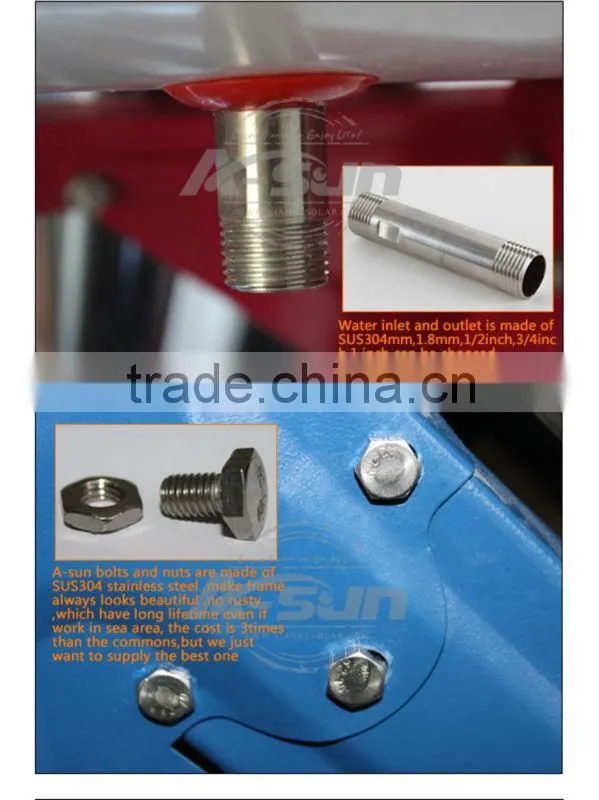

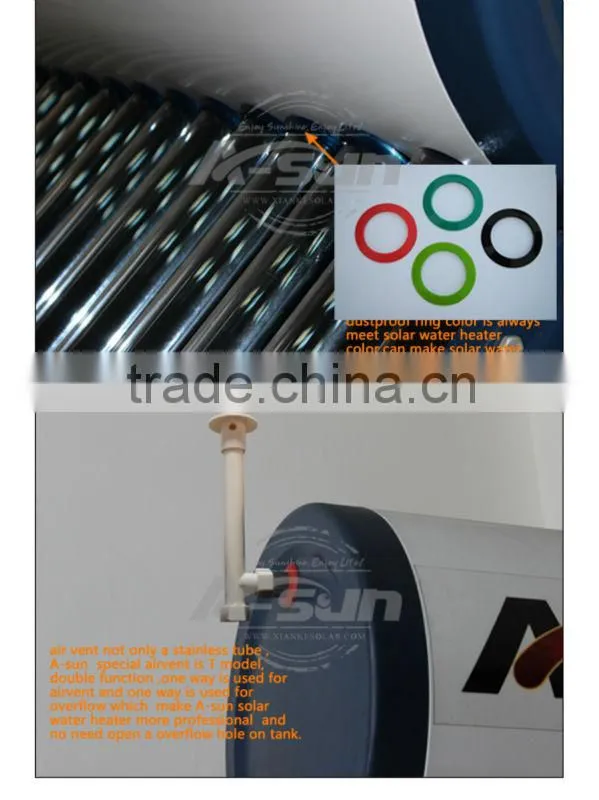

| Inlet/outer/air vent | SUS304/2B stainless steel, ½ inch or ¾ inch |
| Assistant tank | 5L/8L/10L/20L/50L |
| Bolts and nuts | stainless steel |
| Optional accessories | Controller, electric heater, assistant Tank, magnesium rod |
| Test pressure | 1.0Mpa |
| Working pressure | 0.7 Mpa |
| Heat preservation hours | 48-72 hours |
| Hailstone resistance | Dia≤25mm |
| Guaranty | 3 years for Water tank, 5 years for vacuum tube and frame |
| Min Order | 1 set |
| Sample regulation | Client should pay product cost and sea freight |
Low cost pre-heating copper coil solar geyser
| Evacuated tube | Tank capacity | Area | thermal transfer | Volume | People | Total Weight | Loading quantity | ||||
| Dia | length | Qty | aperture | 20'GP | 40'GP | 40'HQ | |||||
| (mm) | (mm) | pcs | (liters) | ( m2 ) | (W) | m3 | (kg) | (sets) | (sets) | (sets) | |
| Φ58 | 1800 | 15 | 150 | 2.1 | 1350 | 0.58 | 2~3 | 55.8 | 45 | 93 | 117 |
| 18 | 180 | 2.51 | 1620 | 0.68 | 3~4 | 67 | 36 | 79 | 100 | ||
| 20 | 200 | 2.92 | 1800 | 0.73 | 4 | 74.4 | 34 | 73 | 93 | ||
| 24 | 240 | 3.33 | 2160 | 0.88 | 4~5 | 89.3 | 28 | 61 | 77 | ||
| 30 | 300 | 4.14 | 2700 | 1.06 | 5~6 | 111.6 | 23 | 50 | 64 | ||
| 32 | 320 | 4.48 | 2880 | 1.14 | 5~6 | 119.1 | 21 | 47 | 59 | ||
| 34 | 340 | 4.76 | 3060 | 1.22 | 6~7 | 126.5 | 20 | 44 | 55 | ||
| 36 | 360 | 5.04 | 3240 | 1.31 | 7 | 130.8 | 19 | 41 | 51 | ||
