Help CenterPre-heated Unpressurized Stainless Steel Solar Water Heater System
Related Products
-
Household Compact Freestanding Evacuated Tube Inox Solar Hot Water HeaterUS$ 250 - 520MOQ: 1 Set -
Pre-heat Vacuum Tubes Thermosiphon Stainless Steel Solar Hot WaterUS$ 250 - 520MOQ: 1 Set
-
TOP 10 Solar Collector Company in Haining Produce Vaccum Tube Heat Pipe Solar CollectorUS$ 125 - 378MOQ: 1 Set
-
A-sun Solar Collector Flat Plate Solar Thermal CollectorsUS$ 125 - 378MOQ: 1 Set
-
Heat Pipe Vacuum Tube Pressurized Solar CollectorUS$ 100 - 300MOQ: 1 Set
Specifications
Pre-heated Unpressurized Stainless Steel Solar Water Heater System:1.it is pre-heated and heat exchanger process.
2.with coop
This product is our Exclusive design, successfully applied for a patent

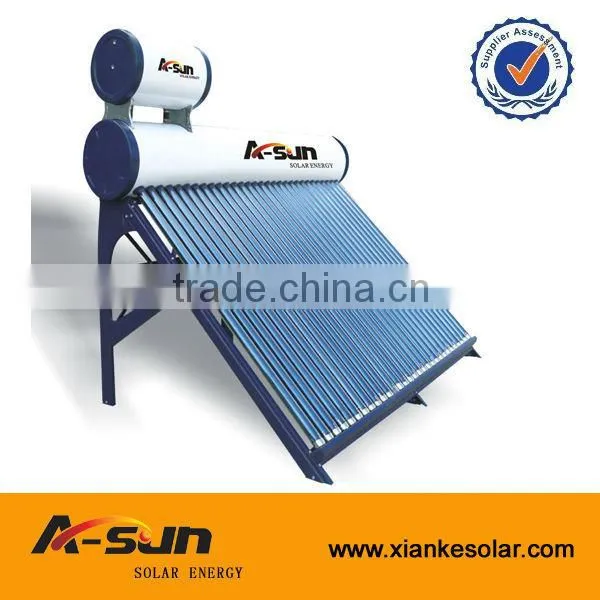

Pre-heated pressurized solar water heater with copper coil inside
Feature:
1. the cooper coil inside of the non-pressure tank can bear the
pressure 0.7 Mpa during the operation.
2. there is with feeder tank which can load the water automatically.
3. the vacuum tube heat the water and supply hot water to the tank,
then the water in the copper coil can be heated by the hot water in the water tank.
4. it is pre-heating and heat exchange process.
5. only if the water in the tank is hot, more hot water will be got and
exceed the capacity limit of the water tank.
6. could be always use clean hot water from the copper coil.
7. you can use the hot water inside of the copper coil or the hot water in the tank.
Pre-heated pressurized solar water heater with copper coil inside
Principle:
This system also relies on natural circulation. There is copper coil in the water tank,
which is used to exchange heat and get hot water. Tank just works as boiler,
which will supply heat to copper coil. When water goes through copper coil,
it will get heat from hot water via copper coil.
| A-sun Pre-heating solar water heater with assistant tank | ||||||
| Model | Tube Quantity |
Tank capacity |
Volume(m3) | |||
| Frame (m3) |
vacuum tube (m3) | Tank (m3) |
Total | |||
| XKPH58-1800-15 | 15 | 150L | 0.0785 | 0.159 | 0.332 | 0.57 |
| XKPH58-1800-18 | 18 | 180L | 0.0785 | 0.198 | 0.387 | 0.66 |
| XKPH58-1800-20 | 20 | 200L | 0.0785 | 0.217 | 0.425 | 0.72 |
| XKPH58-1800-24 | 24 | 240L | 0.0844 | 0.263 | 0.5 | 0.85 |
| XKPH58-1800-30 | 30 | 300L | 0.104 | 0.319 | 0.612 | 1.03 |
| XKPH58-1800-36 | 36 | 360L | 0.125 | 0.394 | 0.725 | 1.24 |
| Assistant tank | 20L | 35*35*50 | 0.061 | |||
| 50L | 45*45*69 | 0.14 | ||||
Pre-sale:
1.make a report about the products manufacture by pictures and related words,
especially the technique that meet the client’s request.
2.When the client visits our company, we can also write a report to ensure the
production is same as client’s demand.
3.We’ll be responsible for the products loading, and send the clients photos.
After sales:
1.3D installation CD will be provided.
2.Special service for VIP client.
3.Warranty: 3 years for the water tank and 5 years for the vacuum tube.
4.1% vacuum tube for free, screw and silicone ring for free.
A-sun solar energy company Info | |
Company name |
HAINING GREEN IMPORT&EXPORT CO.,LTD is belong to HAINING XIANKE SOLAR ENERGY TECHNOLOGY CO.,LTD |
Brand name |
A-sun brand for Foreign markets |
Contact |
Ms Shadow Zhang |
Sales manager | |
Skype: shadow.zhang2 | |
Mobile: 0086-136 5660 9288 | |
Tel: 0086-573-87872882;0086-573-87817298 | |
Brief Info |
Haining Xianke Solar Energy Technology CO.,LTD, which was established in 2000, is a leading manufacturer of solar water heater. Our company locates in northeast of Zhejiang Province, China, and takes the advantage of the vicinal seaport as Shanghai and Ningbo. type, “Integrated-pressurized” type, “Separated-pressurized” type, “Pressure Solar Collector” and“Non-pressure Solar Collector”. |
Staff |
100 workers |
R&D |
1 Engineer and 2 Engineer assistant ;1 Designer |
Main Markets |
especially to Wertern Europe, South Korea ,Brazil,Middle Eastand,Southest Asia and so on. |
Work Area |
Our factory is about 30,000 square meter |
Capacity |
100,000sets per year. |
Quality |
passed the certification of ISO,CE,CCC,SOLAR KEYMARK,SRCC."Top ten brand" in china. |
Production valve |
50 million RMB during 2012. |
More Info |
Payment:30%T/T in advance,70% against the copy of B/L; L/C at sight. |
