Rugged Fanless Industrial Wide Voltage and Extended Temperature PC

Name: Rugged Fanless Industrial Wide Voltage and Extended Temperature PC
Brand: Geshem
SKU: 101471837

US$ 362 - 459 MOQ: 1 Set

Key Specifications

Products Status:

Stock

Type:

Other, industrial fanless box pc

Brand Name:

Geshem

Shenzhen Geshem Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Other, industrial fanless box pc

Brand Name Geshem

Model Number GS525F

Place of Origin Guangdong, China

Product Description

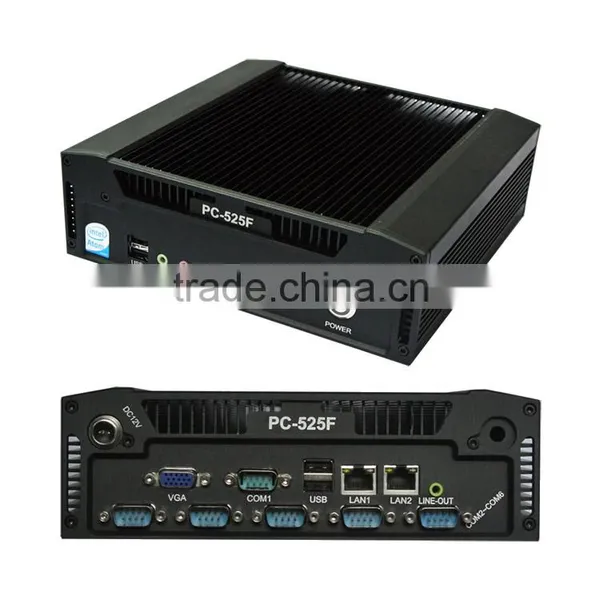

Intel D525 1.8GHZ Fanless Mini Industrial PC/Embedded industrial computer box/Fanless box pc with VGA

Features:

l Intel ®ATOM D525 1.8GHz Processor

l Fully-sealed fanless design, suitable for harsh industrial environment applications

l 2GB memory (DDRIII), up to 4GB memory

l 4*USB/6*COM/1*VGA

l 2*RJ45 Gigabit LAN

l 1*Audio(Line-out,MIC-in)

l 1*WIFI(Optional)

l Color: Slivery/Black

Specifications:

Performance	Chipset	Intel ®ATOM D525 + ICH8M
	Memory	2G memory (DDRIII), up to 4GB
	Hardware Monitor	Monitors voltage, TEMP and CPU fan speed
	Watchdog Timer	1 to 255 sec, setup by software
	Storage	HDD:320GB 2.5'HDD CF :(Optional)
	Power Supply	100~240VAC/50~60Hz (Power adapter); 12VDC/5A; (No power adapter)
	Power Dissiation	15W (standby) 25W (operating MaxPower 100%)
O/S	Operating System	Windows XP/ Windows 7/ Linux
I/O Interface	USB	4 *USB2.0 Ports
	Serial Port	6RS232 (1~2RS485 Optional)
	Ethernet	2* RTL8111DL 10/100/1000Mbps RJ45
	Audio	1*Line out/Mic-in
	Display	1*VGA
Environmental	Anti-vibration	5-19Hz/1.0mm amplitude;19-200Hz/1.0g acceleration;
	Anti-shock	10g acceleration, 11ms duration.
	Reliability	MTBF≥50000h; MTTR≤0.5h
	Operating Temperature	-10℃~50℃ (with air flow)
	Storage Temperature	-20℃ ~60℃
	Operating Humidity	95% @40℃, non-condensing
Mechanical	Dimensions	214mm (L) 190 mm (W) 68 mm (H)
	Material	High-strength and elegant Al-alloy panel
	Weight	3.2kg/3.5kg(NET./GROSS.)
	Color	Slivery/Black
