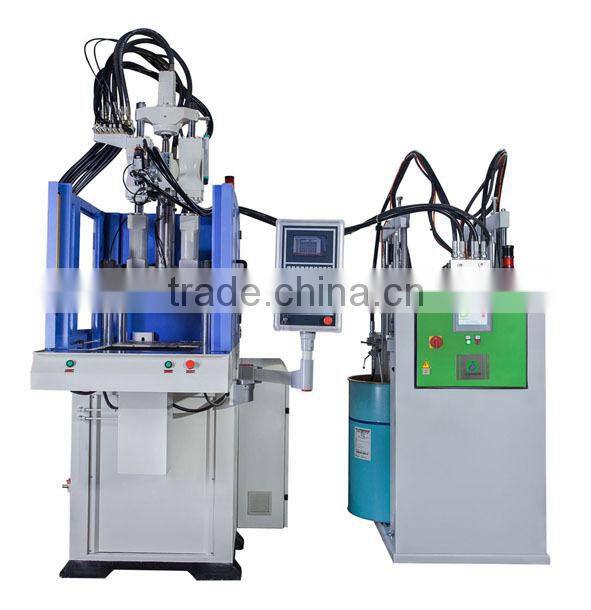

Liquid Silicone Injection Molding Machine/vertical Injection Molding Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Rubber Injection Machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI&NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All Electric Injection Molding MachineNegotiableMOQ: 1 Set -
TYU-1500.2R.SF Vertical Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
TYU-850.2R Vertical Injection Molding MachineNegotiableMOQ: 1 Piece
-
TYU-2100S Vertical Injection Molding MachineNegotiableMOQ: 1 Piece
-
TYU-1200.2R Vertical Injection Molding MachineNegotiableMOQ: 1 Piece
Condition
New
Type
Rubber Injection Machine
Place of Origin
Zhejiang, China
Brand Name
TAYU
Model Number
TY-850S.LSR
Certification
CE
Warranty
365DAYS
After-sales Service Provided
Overseas service center available
| Specification | ||||||
| Model | Units | TY850S.LSR | ||||
| Screw Diameter | mm | φ42 | ||||
| Injection Pressure | Kg/cm2 | 1266 | ||||
| Theoretical Shot volume | cm3 | 249 | ||||
| Max. Shot Weight | g/Oz | 190.6/6.7 | ||||
| Injection Rate | cm3/sec | 143 | ||||
| Injection Speed | mm/sec | 86 | ||||
| Temperature Control | ZONE | - | ||||
| Material Hopper Capacity | L | - | ||||
| Clamping Force | T | 85 | ||||
| Opening Force | T | 13.5 | ||||
| Distance Between Tie Bare | mm | 500x340 | ||||
| Min Mold Height | mm | 200 | ||||
| Opening Stroke | mm | 250 | ||||
| Max. Open Daylight | mm | 450 | ||||
| Nozzle Center Height | mm | - | ||||
| Nozzle Center Distance | mm |
|
||||
| Ejector Force | T | 2.7 | ||||
| Ejector stoke | mm | 50 | ||||
| Max. Hydaulic Pressure | Kg/cm2 | 140 | ||||
| Pump Output | L | 230 | ||||
| Pump Motor Power | Kw | 11 | ||||
| Barrel Heating Power | Kw | 8 | ||||
| Total Wattage | Kw | 19 | ||||
| Machine Weight | T | 3.5 | ||||
| Machine Dimensions(LxWxH) | m | 2.4X1.4X3.3 | ||||
Silicone products used for the injection and production
Package:
