Description: pulley,conveyor pulley, drum pulley, drive pulley, turn pulley, bend pulley, head pulley, tail pulley from Xuzhou Guanghuan Conveyor Idlers Co.,Ltd | ||||||
| 1.Brand | Guanghuan | |||||
| 2.Power | 1.5 2.2 3.0 4.5 5.5 7.5 KW | |||||
| 3.Bearing | big roving crack, deep groove ball with double sealing | |||||
| 4.Velocity of pulley surface | 0.32 0.4 0.5 0.63 0.8 1.0 1.25 1.6 2.0 2.5 Vm/s | |||||
| 5. Standard | DIN/CEMA/JIS/ISO/ETC/GB | |||||
| 6.Surface | smooth steel surface, rubber face | |||||
| 7.Shaft/ axis | 1) Material: Cold drawn steel C45(DIN) | |||||
| 2) Diameter: 55 65 75 85 110 130 | ||||||
| 8. Pipe / tube/shell | 1) Material : Q235 carbon steel | |||||
| 2) Diameter : 320 mm | ||||||
| 3) Length: 600mm ~ 1600 mm | ||||||
| 4) Thickness: 6mm, 10mm or as require | ||||||
| 9.Welding | pipe and bearing housing with automatic welding | |||||
| 10.Service life | More than 30,000 hours | |||||

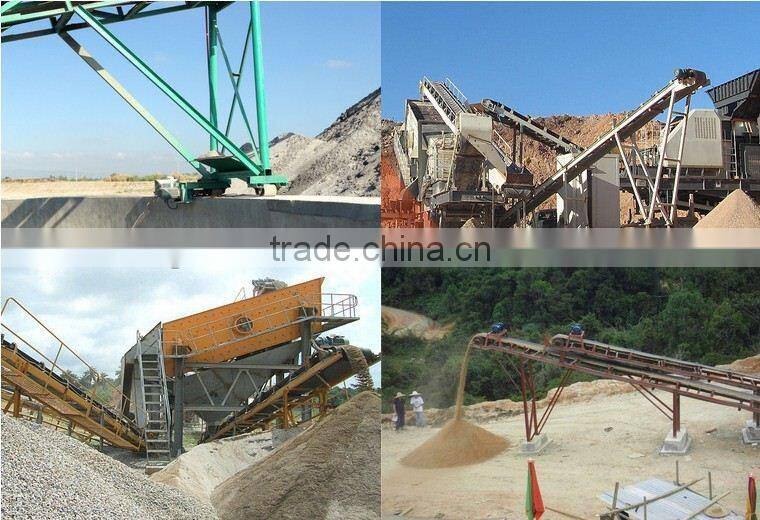

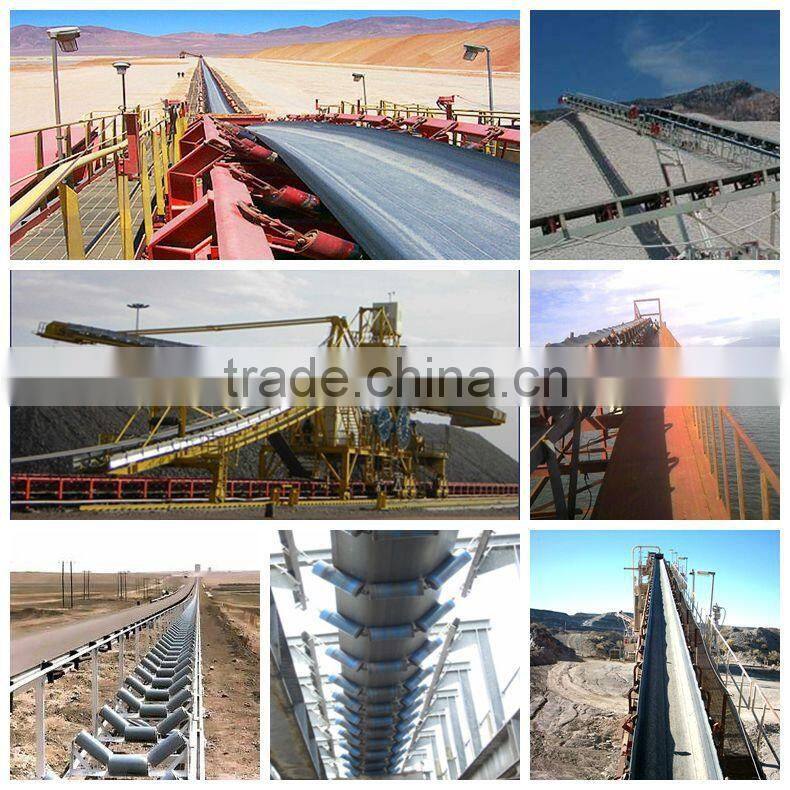

| 11.Application | Used in coal mine, steel industry, cement industry and so on | |||||
| 12.Package | Standard wooden package box/custom package is available | |||||
| 13.Payment | Western Union, T/T, L/C at sight… | |||||
|
14.Parameter for driving pulley reference: |
||||||
| Parameter of conveyor drum pulley | ||||||
| Type |
Belt width (mm) |
Standard diameter (mm) |
Length (mm) |
|||
|
Driving pulley, bend pulley |
500 | 500 |
Length of pulley depends on the width of conveyor belt |
|||
| 650 | 500~630 | |||||
| 800 | 630~1000 | |||||
| 1000 | 800~1150 | |||||
| 1200 | 800~1150 | |||||
| 1400 | 1000~1350 | |||||
| 1600 | 1150~1600 | |||||
| 1800 | 1150~1800 | |||||
| 2000 | 1350~2000 | |||||
| 2200 | 1600~2200 | |||||
| 2400 | 1800~2400 | |||||
|
15.The main advantage of driving pulley: |
(1)Low friction coefficient, warterpoof, effective sealing system |
|||||
|
(2). High accurate steel pipes ensure the rollers with low vibration and noise | ||||||
| (3) Multi-labyrinth seals achieve waterproof and dust proof. | ||||||
|
(4). Adopt good bearing make sure the long lifetime, stable running and good quality. | ||||||
| (5). Stable running, good quality and attractive price. | ||||||
|
16.the advantage of our company |
||||||
|
1) manufacturer of belt conveyor carrying rollers, conveyor pulleys, conveyor brackets; | ||||||
| 2) with most advanced production equipment; | ||||||
| 3) with exquisite craft with CEMA DIN standard; | ||||||
|
4) with TUV, ISO9001:2008 and Safety of Approval for Mining Products; | ||||||
|
5) with high quality material purchasing channel and excellent after-sale service. | ||||||
Driving pulleys, it is an important part of belt conveyer.
1. Steady running, reliable quality and reduce maintenance;
2. Less movement longitudinally, rotating smoothly, extends the life span;
3. Various bearing housing and sealing structure are available for the customers choice;
4. Multipass labyrinthine sealing,preventing the mixed dirt and water immersed;
5. Manufacturing by steel pipe specially for of high precision roller, ensuring the strong load, low shaking and less noise.
Quality Assurance
GUANGHUAN PULLEY operate a quality system approved to ISO9001:2008 which allows quality management throughout the production process. Our laboratory facility conducts spectrographic analysis of all materials produced, tensile testing of finished products, altrasonic testing, etc...
1. About products
· Type: Belt conveyor idlers are used for supporting belts and materials to ensure the steady running of belts. There are trough idlers, parallel idlers, centering idlers, impact idlers, spiral idlers, corrosion-proof idlers, vertical idlers and trough idler brackets, centering idler brackets, and parallel idler brackets used for different materials and situations.
· Brand: The idler rollers of "G&H" brand adopt the most advanced technology and supermatic equipment to ensure the steady quality of the products. We have the Mining Product Mark of Safety Certification issued by the State Administration of Work Safety.
· Good quality: Technology: We use the rubber casting technology instead of the rubber rings to impact idler rollers. This method can avoid the break off for the rubber rings.
2. About factory
· Experience: We have more than20 years experience of conveyor idler rollers manufacture, and we did not receive any complaint for our idler roller quality within life time.
· Good after sales service: Shipment and sample quality tracking include life time, and small problem happening in our idler rollers will be solved at the most prompt time. We always after relative technical support, quick response. All your inquiry will be replied within 24 hours.
Warmly welcoming all friends to contact us for business negotiation.
