China top PPR Pipe for hot water

PP-R cold / hot water supply pipes

Production Description:

Brand Name: HONGYUAN

Material: PP-R ( Random Polypropylene )

Place of Origin: Jilin China (Mainland)

Sizes: 20mm,25mm,32mm,40mm,50mm,63mm,75mm,90mm,110mm

 Pressure Rating: 1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa

 Colors: light grey, white ,green or other colors on request

 Standard: DIN8077/ 8078(German standard). GB/T18742.2-2002(National Standard)

 Factory Certification: ISO,BV

 Applications: Cold or hot water supply, heating system, industrial liquids transportation

Specification:

PP-R FITTINGS

Brief Introduction of Products:

PP-R(polypropylene random)pipes are adopted thermal welding technique during the project of hot / cold water transmission. The comprehensive technical performance and economic indicator of PP-R are much better than galvanized pipe, UPVC pipe, polyethylene-aluminum compound pipe, PE-X (cross-linked polyethylene) and polybutylene pipe etc. For this reason PP-R is the leading products and widely used for feed-water piping in developed countries in Europe and America.

Our company owns advanced facilities as well as very strong technical backstopping supported by Chinese Academy of Sciences and Peking Chemical Colleague, uses the raw materials of “Borealis” from Europe and “Borealis” from North Korea. Tianze has developed the new generation PP-R pipes and fittings, also developed dedicated fusion machine for PP-R pipe construction. All qualification can meet German Standard DIN8077 and DIN8078.

Nowadays PP-R pipes win more attention and have been used all over the whole world more widely with its excellent sanitization performance, high heat resistance, compression resistance, corrosion resistance, pliability and seismic performance which make PP-R the real environmental friendly pipe.

 PP-R PIPES Features & Advantages:

1. Sanitization & Non-poison: This product is green building material which is able to use for pure clean drinking water pipe system. No heavy metal additives would not be covered with dirt or contaminated by bacterium.

2. High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

3. Corrosion-Proof & Non-Fouling: Resist chemical matters or electron chemical corrosion. Able to avoid the pipe's fouling or blocking as well as the blemish, rust on basin and bath.

4. Heat Preservation & Energy-Saving: Excellent heat insulation features, minimal thermal conductivity which is only 0.5% of the conductivity of metal pipes.

5. Less Weight & High Strength: Its proportion is only 1/8th of metal pipe’s, with pressure-proof strength up to over 5MPa(50kg/sqcm),high tenacity and impact resistance.

6. Beautiful Appearance & Higher Flow Capacity:Smooth inner and outer surfaces, less flowing resistance, soft color and beautiful figure.

7. Easy and Reliable Installation: Using heat melting joint without sleeve wire, and taking few seconds for connecting and adopting good quality copper inserts to connect the metal pipe and basin.

8. Long Using Life: The pipe system can be used for over 50 years under normal condition.

9. PP-R is recyclable and environmental friendly.

ISO9001:2008 Certificate

Trademark Registration Certification

WHY choose us to cooperation?

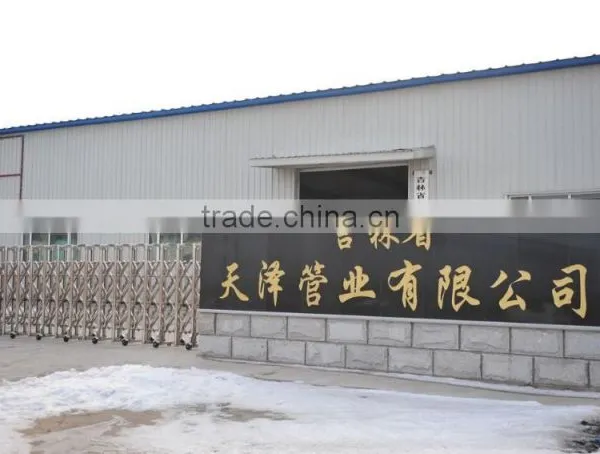

About us:

Outstanding advantages as below:

1. Authenticity and Reliability: Jilin Tianze Pipe Industry Co., Ltd. is a verified company by some professional third-party inspection companies: ISO, BV (BUREAU VERITAS) and .

2. Patented product——Manifold: This is designed and developed individually by our independent R&D team. Especially using plastic instead of steel/copper is a great advance.

3. Production facilities are imported from South Korea: Computer monitoring system, totally enclosed automatic feeding system, advanced technology processes, perfect testing instruments.

4. Main raw materials: South Korea LG raw materials (XL1800), SK global chemical DX 800 and HONAM 8100GX, without any reclaimed filler or damaged material in the products.

5. Accessories: imported from Japan and Europe. Such as Germany Degussa DTBP cross-linking agent, Switzerland CIBA A/O1076 major antioxidants, PS802FL auxiliary antioxidants.

6. Years of production & service experience: High-quality products, Customer First..

7. Stable domestic market and stable stock.

Corporate Culture:

Our vision:Provide high-quality green environmental protection pipe system for construction industry.

Our targets: Mutual respects, excellent service, commit improvement, create values

Our management concept: Humanized, militarize and scientific

Our service concept: Thankfulness, dedication, sincerity, high efficiency and win-win

Our mission: Create the outstanding brand in the plastic pipe field.

Our motto: Development and innovation is of top priority.

We are the manufacturer specialized in producing many different kinds of pipes and fittings more than 6 years, mainly dedicated to developing and producing “Hongyuan” brand PE-Xa heating pipes, PE-RT geothermal pipes, PP-R hot/cold water pipes, PP-R fittings and manifolds.

If you are interested in any products, please feel free to contact us for more information at anytime.
