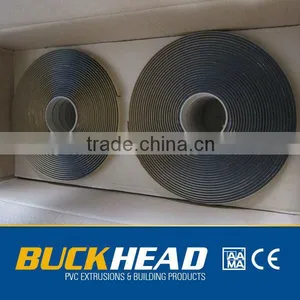

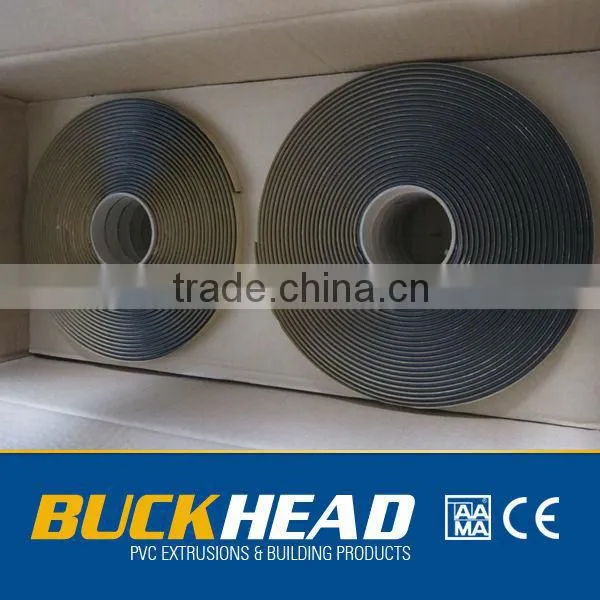

Help CenterRubber Shim Butyl Tape
Related Products
BUTYL TAPE INFO
Butyl tape is used in compression glazing systems wherever the design calls for high performance glazing
of curtain wall, unitized curtain walls, punched and ribbon window systems and sloped glazing applications.
BUTYL TAPE TECHNICAL DATA
Thickness of the tape |
Shim Diameter |
Length |
Package |
0.090” / 2.29mm |
1/16” / 1.59mm |
20 M/Roll |
32 R/Carton |
0.125” / 3.18mm |
1/16” / 1.59mm |
16 M/Roll |
28 R/Carton |
0.150” / 3.81mm |
1/8” / 3.18mm |
12 M/Roll |
24 R/Carton |
0.215” / 5.46mm |
3/16” / 4.78mm |
8 M/Roll |
16 R/Carton |
0.280” / 7.11mm |
1/4” / 6.35mm |
6 M/Roll |
12 R/Carton |
Color |
Black |
||
Tape Width |
9.5mm |
||
Density |
1.45 g/cm3 |
||
Tolerances |
Tape Width (±0.8mm) Tape Thickness (+0.4mm,-0), Length (+0.5m, -0) |
||
Temperature Range |
Service: -65°F (-54°C) to 200°F (93°C) |
||
Application: 20°F (-7°C) to 120°F (49°C) | |||
BUTYL TAPE AVAILABLE IN CUSTOM SPECIFICATION.
ABOUT BUCKHEAD
Deqing Buckhead Building Products Co.,Ltd is a professional manufacturer & supplier of PVC extrusions and related building products. With 11 years' industry and export experience, Buckhead expanded extrusion scope to PVC foam decoration materials, PVC roof & wall products, PVC outdoor & garden products, PVC windows and doors etc.
With 2000 tons monthly extrusion and further processing capacity, Buckhead look forward to be your business
partner on any OEM or ODM PVC extruded building products.
BUCKHEAD ADVANTAGES
- 11 years' experience on OEM/ODM PVC extruded building products;
- Professional PVC foam extrusion technology and production lines;
- 2000 tons monthly extrusion capacity to ensure punctual delivery;
- 15 container monthly finished window and door capacity;
- AAMA certified vinyl extrusion and CE certified PVC profile.
