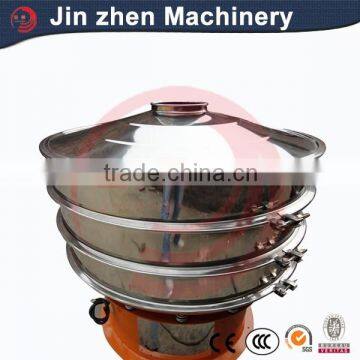

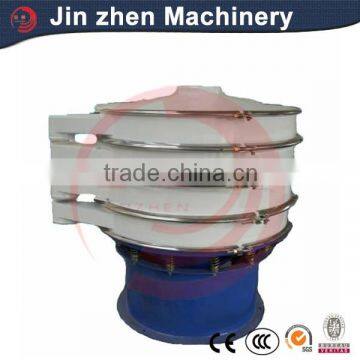

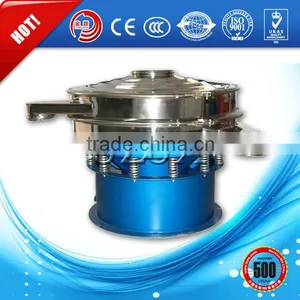

Factory supply paper pulp vibration screen machine
Product introduction - vibration screen
JZS paper pulp vibration screen machine is a high-precision powder griddle through a number
of patented technological innovation (rapid beam ring design, the flange motor design) , low
noise, high efficiency, quick changer only needs 3 - 5 minutes, fully enclosed structure, it is
suitable for tablets, powder,mucus, etc. materials screening filter.
Working principle - vibration screen
The basic principles of paper pulp vibration screen machine is installed under hammer motor
shaft (unbalanced hammer), let motor rotary motion into horizontal, vertical, inclined three per

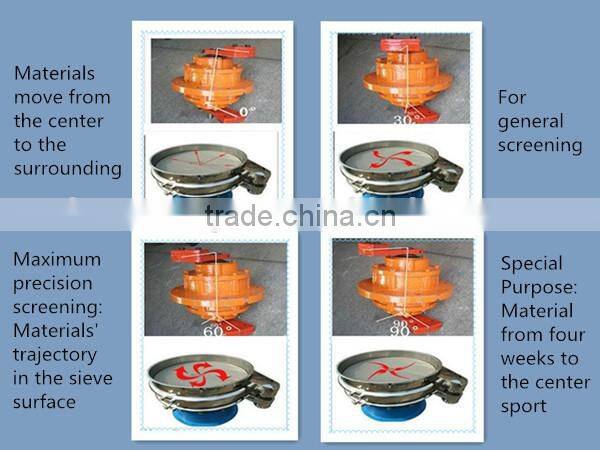

exercise, then this movement passes to the screen surface. Adjusting the upper and lower ends
of heavy hammer of the phase angle, it can change the material in the sieve surface trajectory.
By changing the eccentric block’s included angle (the upper and down), the motion material
moves on the mesh ill be changed. So that the screening target will be realized.

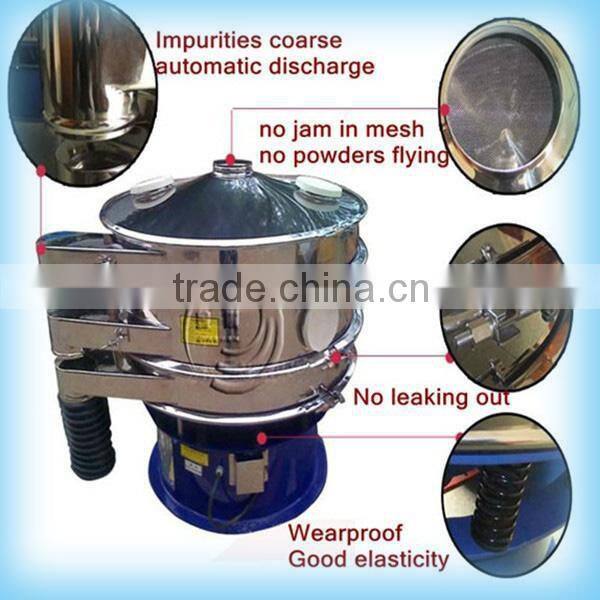

Advantages - vibration screen
1. High efficiency - elegant design and durable, available for any powder and viscous liquid.

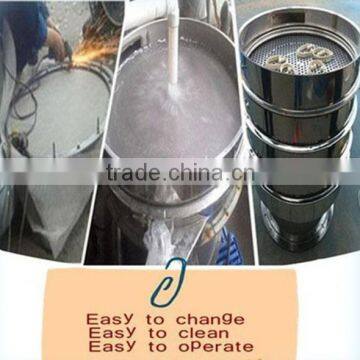

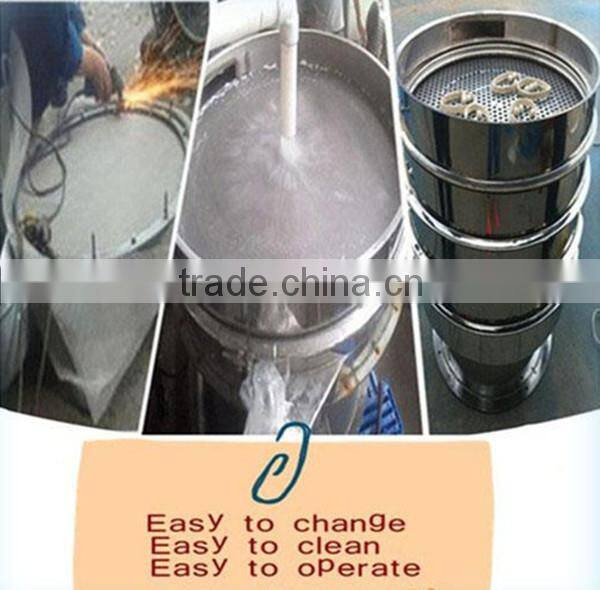

2. Easy of cleaning and operating - the unique grid design, mesh will use a long time, for only
3 - 5 minutes to replace net.
3. Lower noise - less than 75dB.

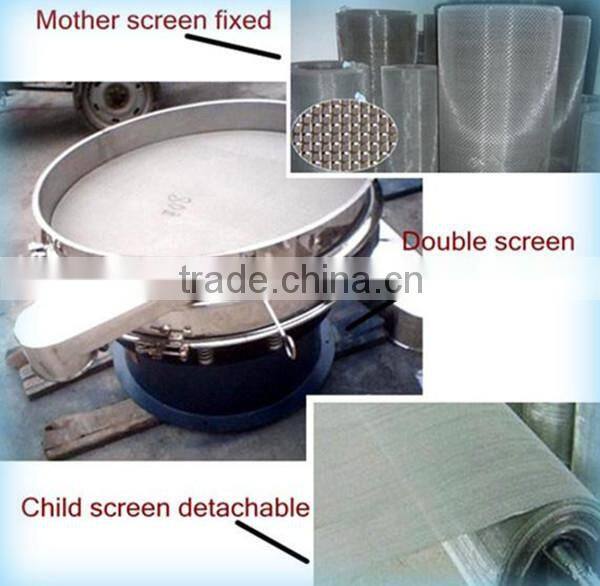

4. Double screen - mother screen can be fixed,child screen can be detachable,easy to change
screen and use for long time.

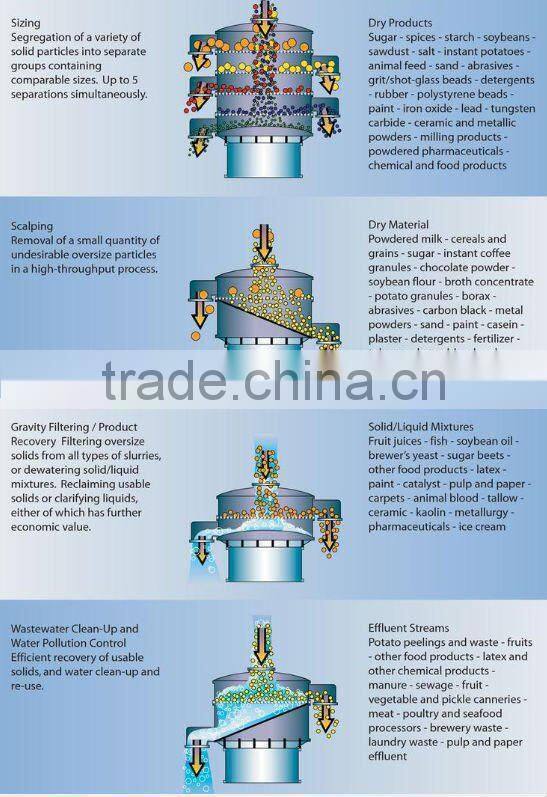

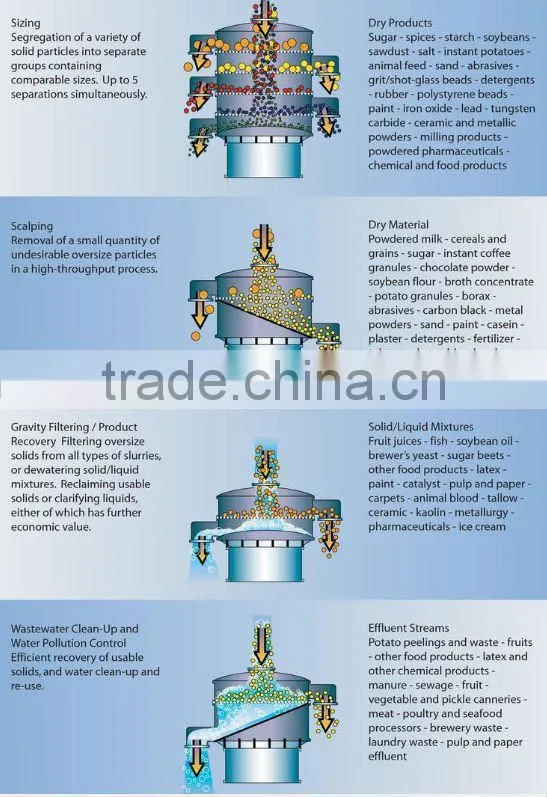

Application - vibration screen
Foods - pea grading, instant coffee powders, and bread crumbs, etc.
Pharmaceuticals industry – antibiotics, aspirin, bulk, pharmaceutics, hormones, injectables,
lipids, lithium, microspheres, peptides, proteins, etc.
Chemicals - polyvinyl chloride, polyethylene, polypropylene and other plastic pellets, melamine,
phenolics, detergents, adipic acid, iron oxide, and sodium cyanide, etc.
Minerals and Metals - metal powders, barytes, silica, bauxite, cement, brick clay, coke, fluorspar
and nepheline syenite, etc.
Technical parameters - vibration screen
Technical Parameter | |||||
Model |
Screen Dia ( mm ) |
Screen Area ( m2 ) |
Screen Specification |
Layer |
Power ( kw ) |
JZS-400 |
340 |
0.0907 |
4-500 mesh |
|
0.18 |
JZS-600 |
540 |
0.2289 |
1-5 |
0.25 |
|
JZS-800 |
730 |
0.4183 |
1-5 |
0.55 |
|
JZS-1000 |
900 |
0.6359 |
1-5 |
1.1 |
|
JZS-1200 |
1100 |
0.9499 |
1-5 |
1.1 |
|
JZS-1500 |
1400 |
1.5386 |
1-5 |
1.5 |
|
JZS-1800 |
1700 |
2.2687 |
1-3 |
2.2 |
|
JZS-2000 |
1886 |
2.7922 |
1-3 |
2.2 |
|

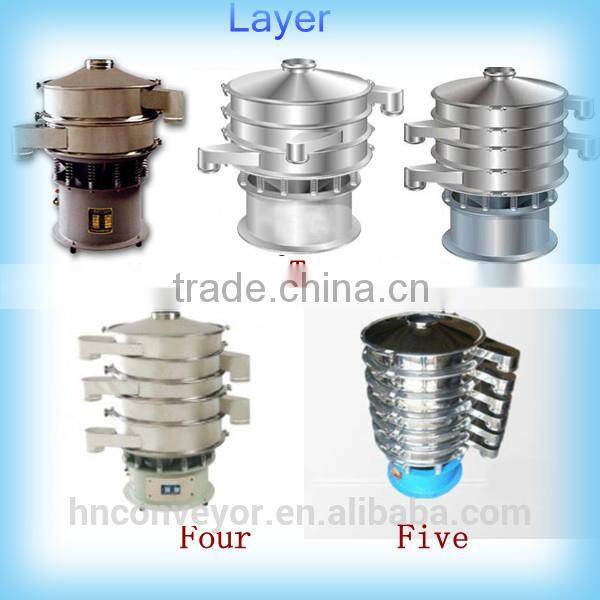

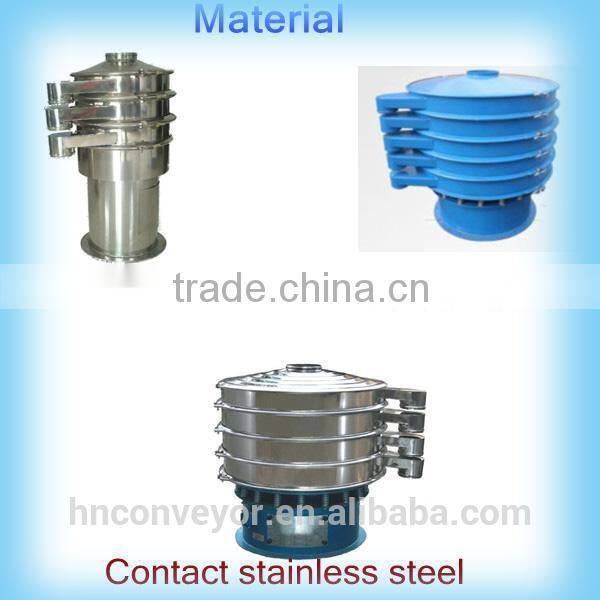

Product kinds - vibration screen

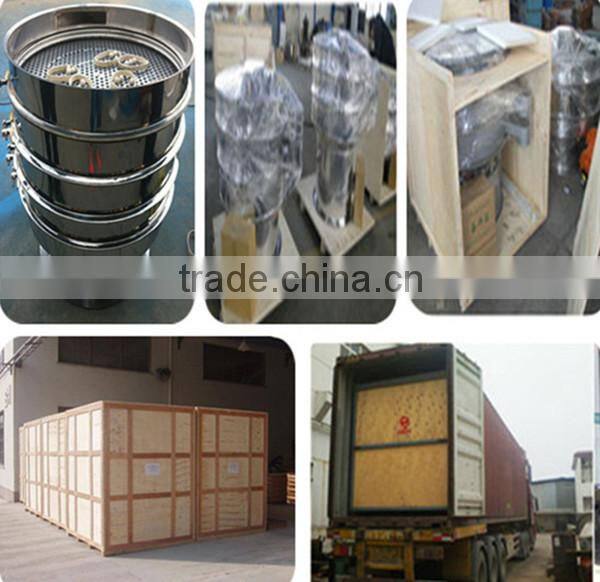

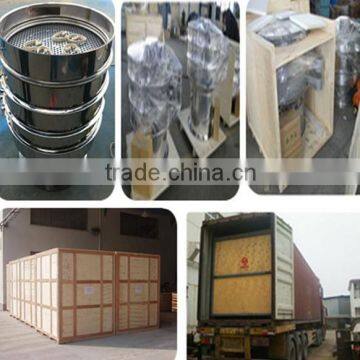

Package and transport - vibration screen
Why choose us ?
If you are interested in our products, please kindly let me know,we will try our
best for you!
